Dante AV Ultra Encoder - HDMI to Dante AV Ultra ColibriDAV-01HT
- Transport up to 4K HDR UHD video sources (3840 x 2160 @ 60Hz 4:4:4, 4096 x 2160 @ 60Hz 4:4:4, and 4K @ 60Hz 4:4:4) with imperceptible subframe latency over 1GbE Network.
- Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.
- ProAV-optimized Colibri codec preserves visually lossless quality for graphical and video contents.
- Utilizing a single network clock enables perfect audio and video synchronization.
- HDMI input and loop-out port
- 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.
- Incoming audio check using a headphone output.
- HDCP 1.x/2.x compliant with advanced EDID management.
- PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.
- EIA Rack mountable - 1U half-rack width.
- Compatible with Dante Controller, Dante Studio and Dante Domain Manager (DDM).
Related Links
Introduction

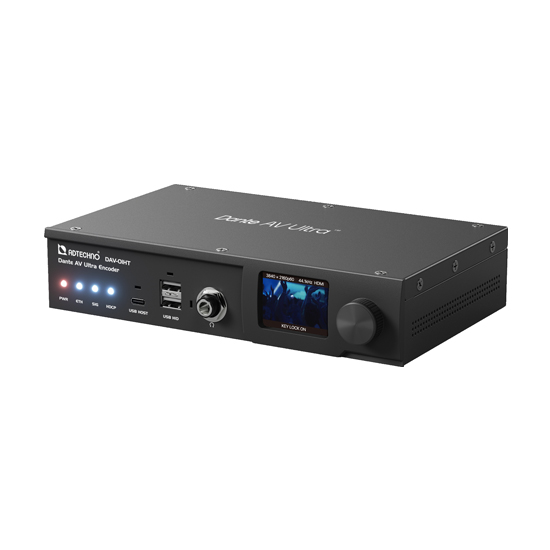

ADTECHNO Dante AV Ultra Encoder – DAV-01HT is the award-winning AV over IP product, powered by the Dante AV Ultra solution, allowing for lossless 4K Ultra HD video and extremely low-latency IP streaming over 1GbE network. It utilizes ProAV-optimized Colibri codec, preserving high-quality graphical content for 4K60 with perfect video and audio synchronization. DAV-01HT enables seamless integration with the renowned Dante Controller software, enabling AV professionals to effortlessly manage and route each signal individually, providing a streamlined and efficient workflow for audio and video distribution.
The DAV-01HT features HDMI input port, converting video and audio into Dante AV Ultra signals. Notably, it includes dedicated output port, supporting loop-out connection for signal verification on preview displays and seamless integration with other video transmission equipment.
The DAV-01HT comes equipped with a 2.0-inch IPS screen, offering video preview and audio level meter displays. Moreover, users can access Dante settings menus for adjustments such as sampling rate and latency using an intuitive rotary switch knob. The addition of a headphone jack facilitates audio monitoring, allowing users to confirm received audio through headphones.
Dante AV Ultra enables the transmission of intricate 4K60 graphical content with high quality, visually lossless results and extremely low latency. Tailored for professional AV environments such as stadiums, arenas, theaters, churches, schools, offices, and boardrooms, this solution prioritizes minimal latency in both video and audio, ensuring optimal performance in demanding settings.
Features
Adaption of ProAV-optimized Colibri codec
In the main use case of ProAV, preserving high quality of complex graphical content poses a significant challenge. The new Colibri codec has been specially designed to bridge this gap, providing seamless distribution and delivery of high-quality complex graphical content for 4K60 over 1GbE. The ADTECHNO Dante AV Ultra incorporates this newly optimized video codec to flawlessly encode any graphical content while preserving visually lossless quality for graphical and video content.
* Interoperability requires consistency in the video codec used on both the encoder and decoder.
Perfect Synchronization of Audio and Video
Dante AV Ultra employs a single clock to synchronize seamlessly with one another over the network using the IEEE 1588 Precision Time Protocol (PTP), delivering sub-microsecond synchronization.
Imperceptible subframe latency
Dante AV Ultra streams and transport video and audio content with highest performance and lowest latency - 4K60 with 8ms or less latency
User-friendly 2.0-inch IPS screen

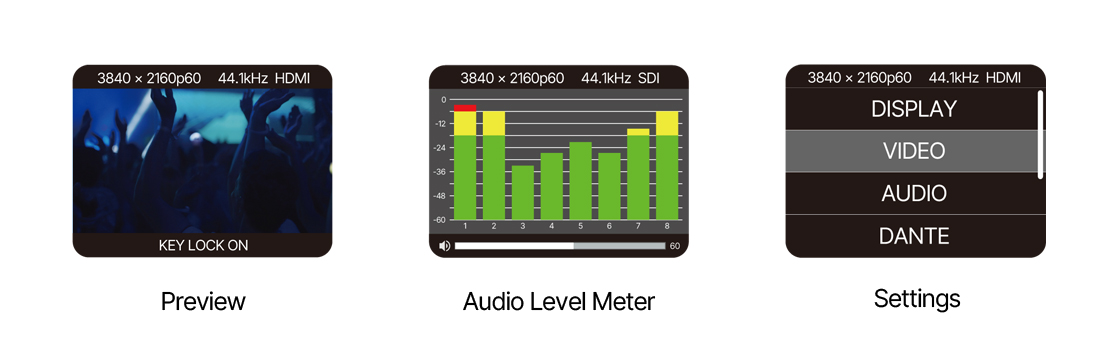

The ADTECHON Dante AV Ultra comes equipped with a user-friendly 2.0-inch IPS screen that provides a preview of incoming video images and displays 8-channel audio level meters. Additionally, it boasts a Dante Setting menu, allowing you to easily modify settings such as sampling rate, latency and more using a rotary switch knob.
The largest AV over IP technology ecosystem
Compatible with over 3,800 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without encountering management difficulties and performance issue.
Dante Controller
Seamless integration into an existing Dante audio network. The ADTECHNO Dante AV Ultra is easily managed with flexible, independent routing for audio, video, USB, IR and RS-422 (VISCA) through the use of Dante Controller.
Learn more
Network Switch Guide
The following features are required for the Dante AV Ultra encoder and decoder to work seamlessly within a single network switch system:
- 1GbE Managed
- Multicast capabilities
- IGMP Snooping and Querie
- Immediate and Fast Leave
- QoS (Quality of Service)
For more details, please consult Audinate's website.

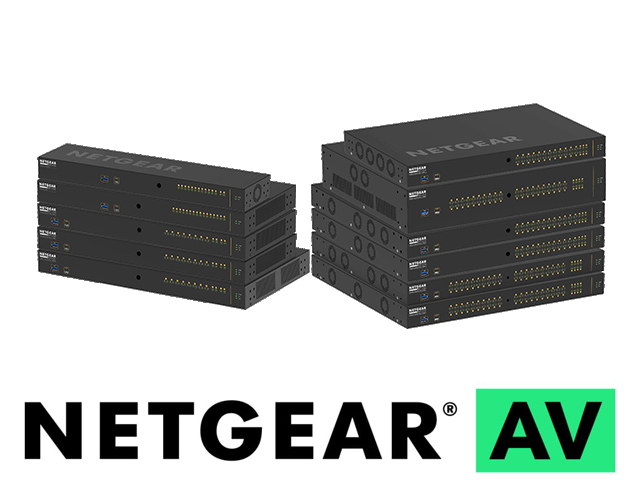

Learn moreNETGEAR AV Line, M4250 Switches are also available for a seamless integration solution for deploying Dante AV.
Learn more
Specification

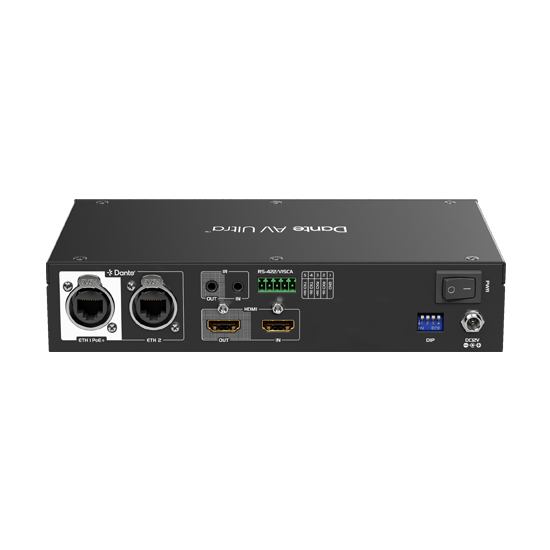

| Model No. | DAV-01HT | |
|---|---|---|
| Product Name | Dante AV Ultra Encoder HDMI to Dante AV Ultra Colibri | |
| Audio/Video Input | SDI | - |
| HDMI | 1 x HDMI Type A *HDCP 1.4/2.2 , CEC pass through | |
| LAN | - | |
| Audio/Video Output | SDI | - |
| HDMI | 1 x HDMI Type A loop-out *HDCP 1.4/2.2, CEC pass through | |
| LAN | 2 x Neutrik etherCON RJ-45 - 1GbE *Port 1 with PoE+ | |
| Earphone Jack | 1 x 6.3mm standard stereo jack | |
| Other I/O | USB/KVM | 1 x USB Type C Host 2 x USB Type A HID |
| RS-422 | 1 x 5-Pin Phoenix connector | |
| IR Input | 1 x 3.5mm stereo jack | |
| IR Output | 1 x 3.5mm stereo jack | |
| Extend Distance | SDI | 70 Meters at 12G, 100 Meters at 6G, 200 meters for 3G and 270 meters at 1.5G *with Canare Cable |
| HDMI | 5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 | |
| RJ-45 | 100 meters maximum with CAT 5e/6 | |
| LCD Panel | 2.0-inch IPS | |
| Dimension | 210 (W) x 127 (D) x 44 (H) mm *protrusions not included | |
| Weight | 528g | |
| Power | PoE 802.3 at or 12V DC | |
| Power Consumption | PoE | |
| DC | 14.4W (max load) | |
| Operating Temperature | 0 to 40 C (32 to 104 F) | |
| Storage Temperature | -40 to 60 C (-40 to 140 F) | |
| Operating Humidity | 10-90% noncondensing | |
| Box Content | 1 x DAV-01, 1 x User Manual | |
| Warranty | 1 year | |
| Compliance | FCC/CE/UKCA/RoHS | |
*Dante and Audinate are registered trademarks of Audinate Holdings Pty Ltd. All trademarks and copyrights are the property of their respective owners.
Formats
HDMI Video Input Format
| Resolution | Frequency (Hz) |
|---|---|
| 4096 x 2160p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 3840 x 2160 | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 2560 x 1600 | 60 |
| 2048 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 1920 x 1200p | 60 |
| 1920 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 1600 x 1200 | 60 |
| 1280 x 1024 | 60 |
| 1280 x 720p | 50/ 59.94/ 60 |
| 1080i | 50/ 59.94/60 |
| 1024 x 768 | 60 |
| 576i | 50 |
| 480i | 60 |
*YCbCr 4:4:4/ 4:2:2/ 4:2:0 *4:2:0 limited to 3840 x 2160@50/59.94/60
*RGB
*8/ 10/ 12-bit *3840x2160 limited to 8-bit
