Dante AV Ultra Decoder - Decode Dante AV Ultra Colibri to HDMIDAV-02HR
- Dual HDMI output ports for simultaneous video display
- Supports 4K HDR UHD video transmission with imperceptible subframe latency
- Automatic EDID detection and resolution optimization for each display
- Built-in HDCP version conversion for seamless compatibility (HDCP 1.x/2.x)
- Perfect AV synchronization via a single Dante network clock
- Advanced routing for audio, video, USB/KVM, and RS-422 serial control
- Fanless operation for noise-free performance and low maintenance
- Powered by PoE+ (IEEE 802.3at) or 12V DC
- 2U EIA universal shelf mount with support for up to 4 horizontal blade units
- Compatible with Dante Controller, Dante Director, Dante Domain Manager, and Dante Studio
Related Links
Introduction
The DAV-02HR is a professional-grade Dante AV Ultra Decoder engineered for flexible and seamless AV-over-IP deployments. With dual HDMI outputs, it allows simultaneous video playback on two screens, automatically detecting each display’s EDID to deliver the best possible resolution. It supports up to 4Kp60 4:4:4 video and 8-channel audio transport with subframe latency, ensuring visually lossless quality and perfect AV sync. Thanks to integrated HDCP revision conversion and advanced EDID handling, compatibility across diverse AV environments is guaranteed. Its fanless architecture ensures quiet, durable, and reliable operation in any professional setting.
Features

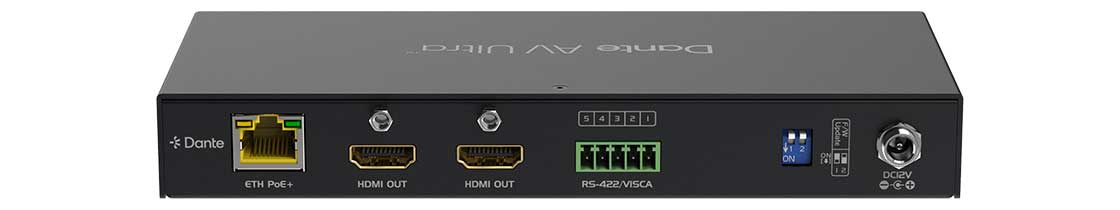

Dual HDMI Output
Dante AV Ultra Decoder, DAV-02HR supports simultaneous dual output, providing 2 x HDMI video outputs for connecting to multiple screens.
Auto-downscaling and HDCP revision conversion
The HDMI ports on The Dante AV Ultra decoder, DAV-02HR reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.
A fanless design guarantees stable performance with minimal maintenance required
Emphasizing stability and efficiency, the DAV-02 series boasts a fanless design that ensures silent operation, greater reliability, and superior energy efficiency. This design significantly reduces maintenance needs while prolonging the lifespan of the devices.
Universal 2U EIA Shelf Unit
The DAV-02RU4 is the universal 2U EIA shelf unit with 4 x horizontal blade shelves enhances the organisaiton and integration of the DAV-02 series into existing AV racks, ensuring a tidy and efficient workspaces.
Auto-downscaling and HDCP revision conversion
The HDMI ports on The ADTECHNO Dante AV Ultra Decoder reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.
The largest AV over IP technology ecosystem
Compatible with over 4,000 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without encountering management difficulties and performance issue.
Dante Controller
Seamless integration into an existing Dante audio network. The ADTECHNO Dante AV Ultra is easily managed with flexible, independent routing for audio, video, USB, IR and RS-422 (VISCA) through the use of Dante Controller.
Learn more
Network Switch Guide
The following features are required for the Dante AV Ultra Decoder and decoder to work seamlessly within a single network switch system:
- 1GbE Managed
- Multicast capabilities
- IGMP Snooping and Querie
- Immediate and Fast Leave
- QoS (Quality of Service)
For more details, please consult Audinate's website.
Learn moreNETGEAR AV Line, M4250 Switches are also available for a seamless integration solution for deploying Dante AV.
Learn more
Specification
| Model No. | DAV-02HR | |
|---|---|---|
| Product Name | Dante AV Ultra Decoder - Dante AV Ultra Colibri to HDMI | |
| Audio/Video Input | HDMI | - |
| USB | - | |
| LAN | 1 x RJ-45 with PoE+ -1GbE | |
| Audio/Video Output | HDMI | 1 x HDMI Type A *1 |
| USB | - | |
| LAN | - | |
| Other I/O | USB/KVM | 1 x Type C Host, 2 x Type A HID |
| RS-422 | - | |
| Sensor | - | |
| Dimension | 182 (W) x 82.6 (D) x 25 (H) mm*2 | |
| Weight | Approx 600g | |
| Power | PoE 802.3 at or 12V DC (AC adapter optional) | |
| Power Consumption | 15W *3 | |
| Operating Temperature | 0 to 40 ℃ (32 to 104 ℉) | |
| Storage Temperature | -40 to 60 ℃ (-40 to 140 ℉) | |
| Operating Humidity | 10-90% noncondensing | |
| Box Content | 1 x DAV-02HR, 2 x Ear Bracket, 1 x Quick User Guide | |
| Warranty | 1 year | |
| Regulatory Compliance | FCC/ CE/ UKCA/ RoHS | |
*1 HDCP 1.x/2.x, CEC pass through
*2 protrusions not included
*3 max load incl. USB HID
*Dante and Audinate are registered trademarks of Audinate Holdings Pty Ltd. All trademarks and copyrights are the property of their respective owners.
Formats
HDMI Video Output Format
| Resolution | Frequency (Hz) |
|---|---|
| 4096 x 2160p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 3840 x 2160 | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 2560 x 1600 | 60 |
| 2048 x 1080p | - |
| 1920 x 1200p | 60 |
| 1920 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 1600 x 1200 | 60 |
| 1280 x 1024 | - |
| 1280 x 720p | 50/ 59.94/ 60 |
| 1080i | 50/ 59.94/60 |
| 1024 x 768 | 60 |
| 576p | 50 |
Option
Universal 2U EIA Shelf Unit
DAV-02RU4 - Mount Kit for Quad Unit Placement
Model name: DAV-02-RU4
- EIA 19-inch
- 2U
12V3.5A Screw-Lock type AC adaptor with power cable set
Model name: PSU1235SC
