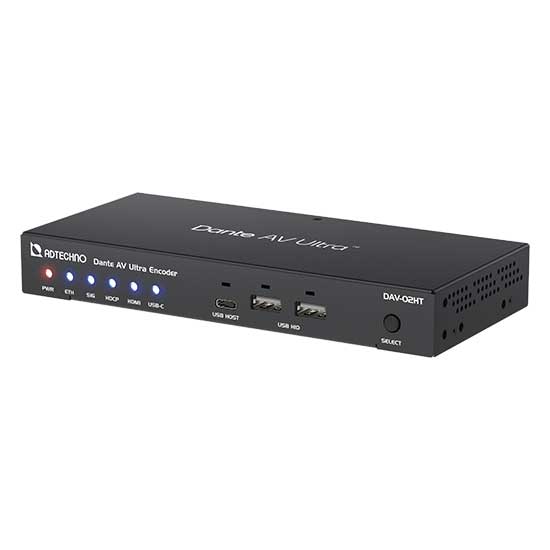

Dante AV Ultra Encoder - Encode USB-C & HDMI to Dante AV Ultra ColibriDAV-02HT
- Transmits up to 4K HDR UHD video with subframe latency over a standard 1GbE network
- Visually lossless compression using the ProAV-optimized Colibri codec
- HDMI and USB-C video input ports
- Automatic source switching upon TMDS signal detection
- Manual source selection via front-panel button or external press button (sensor input)
- Select button locking mechanism to prevent accidental switching
- Perfect audio-video sync using a single network clock
- Independent routing of video, audio, USB/KVM, and RS-422 serial signals
- Fanless thermal design for silent, maintenance-free operation
- Powered by PoE+ (IEEE 802.3at) or 12V DC
- 2U EIA universal shelf mount with support for up to 4 horizontal blade units
- Compatible with Dante Controller, Dante Director, Dante Domain Manager, and Dante Studio
Related Links
Introduction
The DAV-02HT is a high-performance Dante AV Ultra Encoder designed to deliver pristine video and audio signals over standard 1GbE networks. Supporting HDMI and USB-C video inputs, it enables transmission of up to 4Kp60 4:4:4 video with visually lossless quality, synchronized perfectly with 8-channel audio. This encoder is optimized for intuitive signal management through Dante Controller, offering flexible source-switching modes—automatic, manual, or via an external button using a sensor input. Its fanless design ensures silent operation, ideal for high-end meeting rooms, classrooms, and conference settings that demand reliable and quiet performance.
Features
Manual or automated source selection
Dante AV Ultra encoder, DAV-02HT features inputs for both USB-C and HDMI, allowing for the automatic switching of sources upon detecting an incoming TMDS signal. Users can also manually select sources by pressing a front-panel button or by utilizing a sensor input to connect custom-tailored press button, allowing system integrators to externally wire a press button, suitable for installation on a table.
A fanless design guarantees stable performance with minimal maintenance required
Emphasizing stability and efficiency, the DAV-02 series boasts a fanless design that ensures silent operation, greater reliability, and superior energy efficiency. This design significantly reduces maintenance needs while prolonging the lifespan of the devices.
Universal 2U EIA Shelf Unit
The DAV-02RU4 is the universal 2U EIA shelf unit with 4 x horizontal blade shelves enhances the organisaiton and integration of the DAV-02 series into existing AV racks, ensuring a tidy and efficient workspaces.
Auto-downscaling and HDCP revision conversion
The HDMI ports on The ADTECHNO Dante AV Ultra Encoder reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.
The largest AV over IP technology ecosystem
Compatible with over 4,000 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without encountering management difficulties and performance issue.
Dante Controller
Seamless integration into an existing Dante audio network. The ADTECHNO Dante AV Ultra is easily managed with flexible, independent routing for audio, video, USB, IR and RS-422 (VISCA) through the use of Dante Controller.
Learn more
Network Switch Guide
The following features are required for the Dante AV Ultra encoder and decoder to work seamlessly within a single network switch system:
- 1GbE Managed
- Multicast capabilities
- IGMP Snooping and Querie
- Immediate and Fast Leave
- QoS (Quality of Service)
For more details, please consult Audinate's website.
Learn moreNETGEAR AV Line, M4250 Switches are also available for a seamless integration solution for deploying Dante AV.
Learn more
Specification

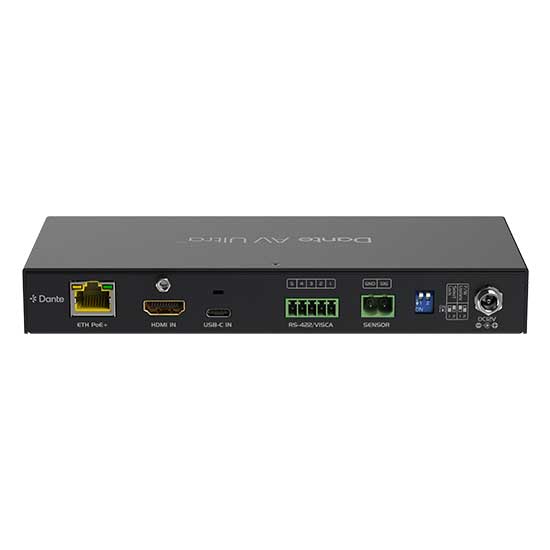

| Model No. | DAV-02HT | |
|---|---|---|
| Product Name | Dante AV Ultra Encoder - USB-C/HDMI to Dante AV Ultra Colibri | |
| Audio/Video Input | HDMI | 1 x HDMI Type A *1 |
| USB | 1 x USB Type C - DP Alt Mode | |
| LAN | - | |
| Audio/Video Output | HDMI | - |
| USB | - | |
| LAN | 1 x RJ-45 with PoE+ -1GbE | |
| Other I/O | USB/KVM | 1 x Type C Host, 2 x Type A HID |
| RS-422 | 1 x 5-Pin Phoenix Connector | |
| Sensor | 1 x 2-Pin Phoenix Connector | |
| Dimension | 182(W) x 82.6(D) x 25(H) mm*2 | |
| Weight | Approx 600g | |
| Power | PoE 802.3 at or 12V DC (AC adapter optional) | |
| Power Consumption | 15W *3 | |
| Operating Temperature | 0 to 40 ℃ (32 to 104 ℉) | |
| Storage Temperature | -40 to 60 ℃ (-40 to 140 ℉) | |
| Operating Humidity | 10-90% noncondensing | |
| Box Content | 1 x DAV-02HT, 2 x Ear Bracket, 1 x Quick User Guide | |
| Warranty | 1 year | |
| Regulatory Compliance | FCC/ CE/ UKCA/ RoHS | |
*1 HDCP 1.x/2.x, CEC pass through
*2 protrusions not included
*3 max load incl. USB HID
*Dante and Audinate are registered trademarks of Audinate Holdings Pty Ltd. All trademarks and copyrights are the property of their respective owners.
Formats
HDMI Video Input Format
| Resolution | Frequency (Hz) |
|---|---|
| 4096 x 2160p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 3840 x 2160 | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 2560 x 1600 | 60 |
| 2048 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 1920 x 1200p | 60 |
| 1920 x 1080p | 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60 |
| 1600 x 1200 | 60 |
| 1280 x 1024 | 60 |
| 1280 x 720p | 50/ 59.94/ 60 |
| 1080i | 50/ 59.94/ 60 |
| 1024 x 768 | 60 |
| 576p | 50 |
*4K is supported only in 8-bit.
*576P is displayed in 4:3 aspect ratio
Option
Universal 2U EIA Shelf Unit
DAV-02RU4 - Mount Kit for Quad Unit Placement
Model name: DAV-02-RU4
- EIA 19-inch
- 2U
12V3.5A Screw-Lock type AC adaptor with power cable set
Model name: PSU1235SC
