DAV Control Nexus - Dante Device Control BoxDAV-CNX1

DAV-CNX1 Product Image

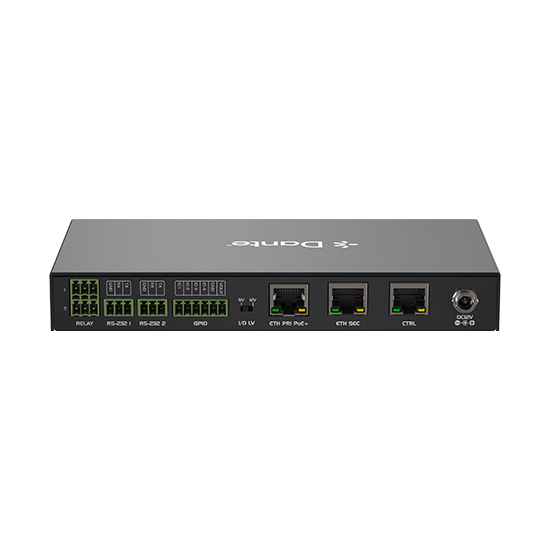

DAV-CNX1 Product Image2
  • DAV-CNX1 Product Image
  • DAV-CNX1 Product Image2
  • Browser-based Web GUI following the Dante Controller workflow
  • Fully PC-free standalone operation
  • One-touch switching of Dante routing configurations and system settings
  • Flexible integration with major third-party control systems
  • Built-in GPIO and relay terminals
  • Webhook Outbound support
  • High-reliability network design with dual Dante LAN ports
  • Secure role-based user management
  • Comprehensive network configuration management
  • Regulatory Compliance fcc,ce,unca
  • Regulatory Compliance rohs

Related Links

 Download
 Contact Us

Introduction

The DAV-CNX1 features a newly designed management interface that follows the established operational concepts of Dante Controller, enabling all Dante device operations—including routing, monitoring, network configuration, and user management—to be performed entirely within a web browser, without the need for dedicated software. In addition to browser-based access from a PC or tablet, the device includes HDMI output and USB HID ports, allowing direct connection to a touchscreen monitor for fully standalone, PC-free operation.

The unit is equipped with dual Ethernet ports for Dante Primary and Secondary networks, supporting Dante Redundancy for reliable and continuous system operation. A dedicated Control Ethernet port provides secure access from a network isolated from the Dante network. Through its open API, the DAV-CNX1 supports external control via Telnet, or RS-232 communication, enabling seamless integration with third-party control systems as well as control of built-in GPIO and relay terminals.

The DAV-CNX1 also includes a Preset (Scene) function for one-touch switching between preconfigured Dante routing setups. In addition, Webhook Outbound support allows the system to send HTTP notifications to external platforms, enabling integration with collaboration tools such as Microsoft Teams and Slack, as well as automation and RPA workflows.

Features

Intuitive browser-based Control Interface for Dante Systems

The DAV Control Nexus adopts a Browser-based Web GUI that follows the established operational workflow of Dante Controller, enabling centralized management of visual matrix-style routing, device information, clock status, and event logs directly from a web browser. No dedicated software installation is required.

Web GUI Overview

Key screens of the browser-based interface for intuitive Dante system control.

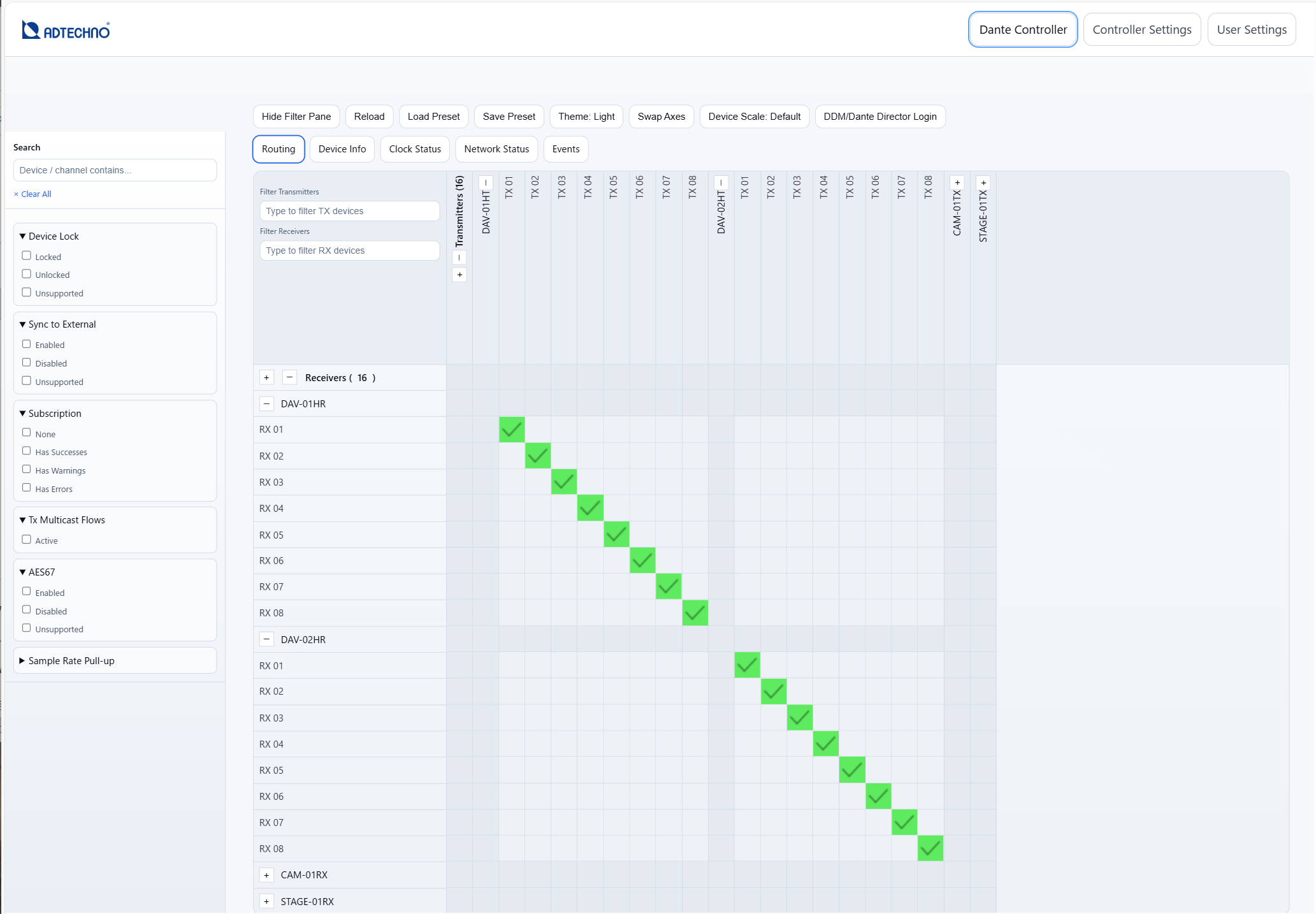

Dante Controller screen
Dante Controller

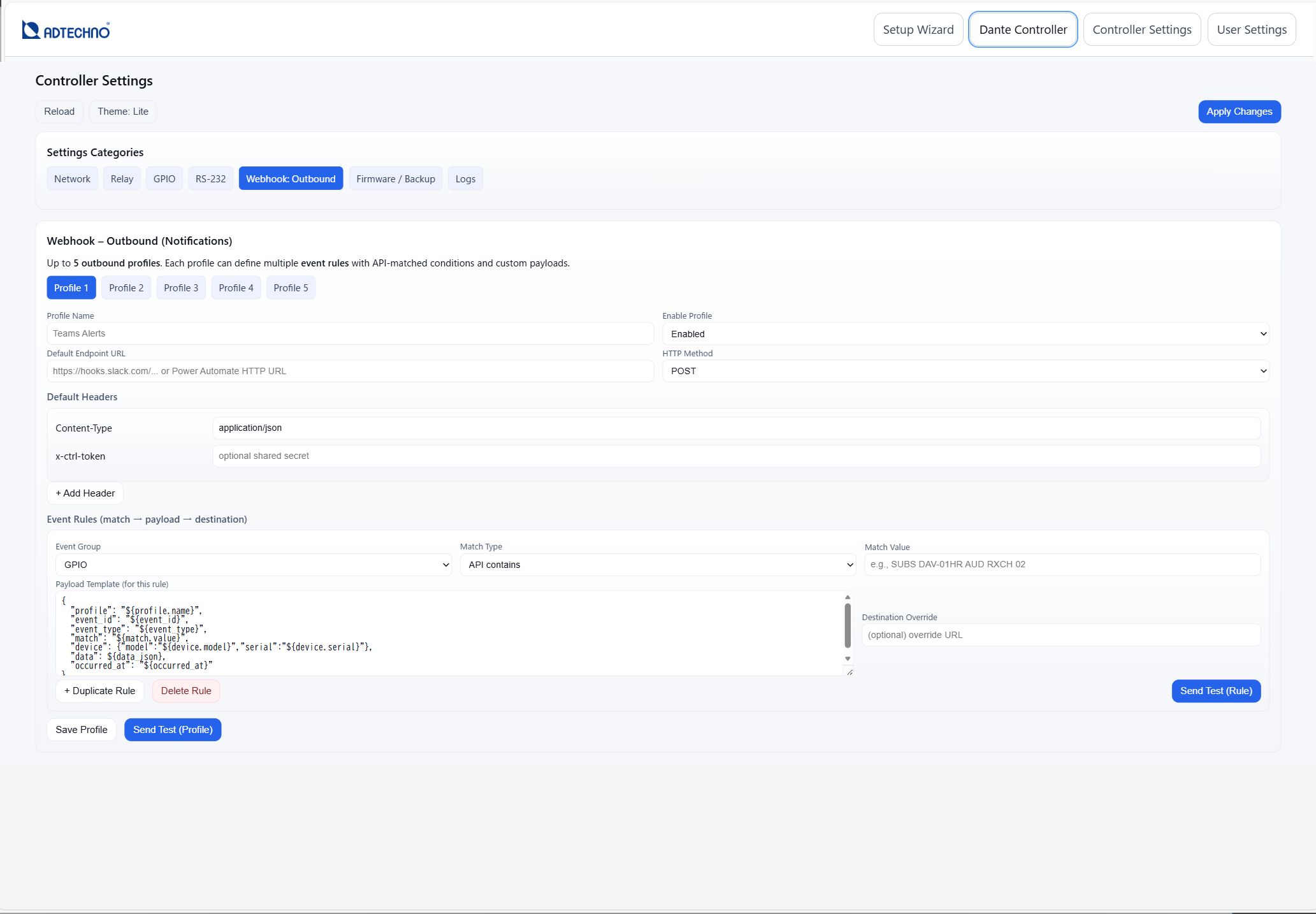

Webhook Settings screen
Webhook Settings

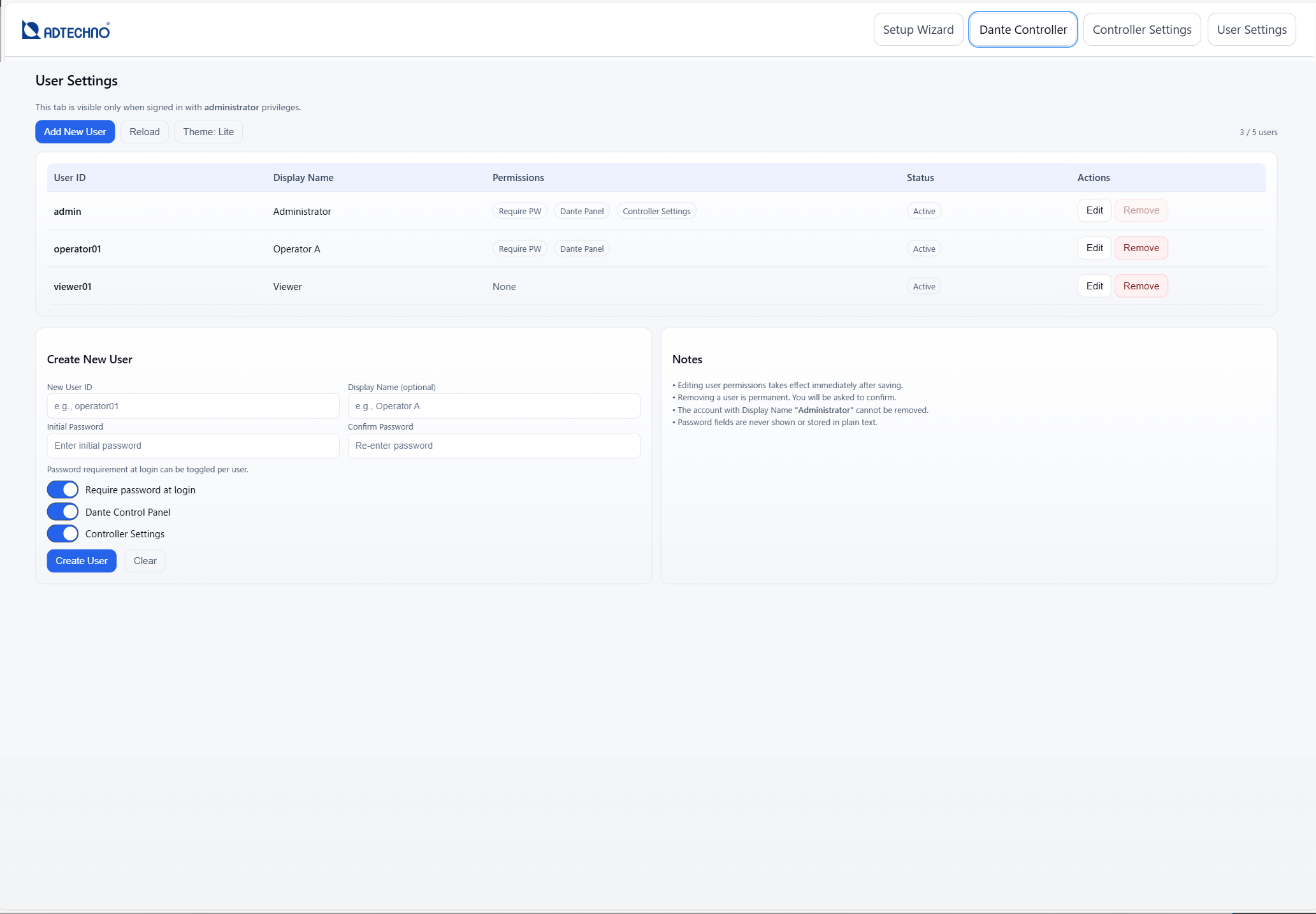

User Settings screen
User Settings

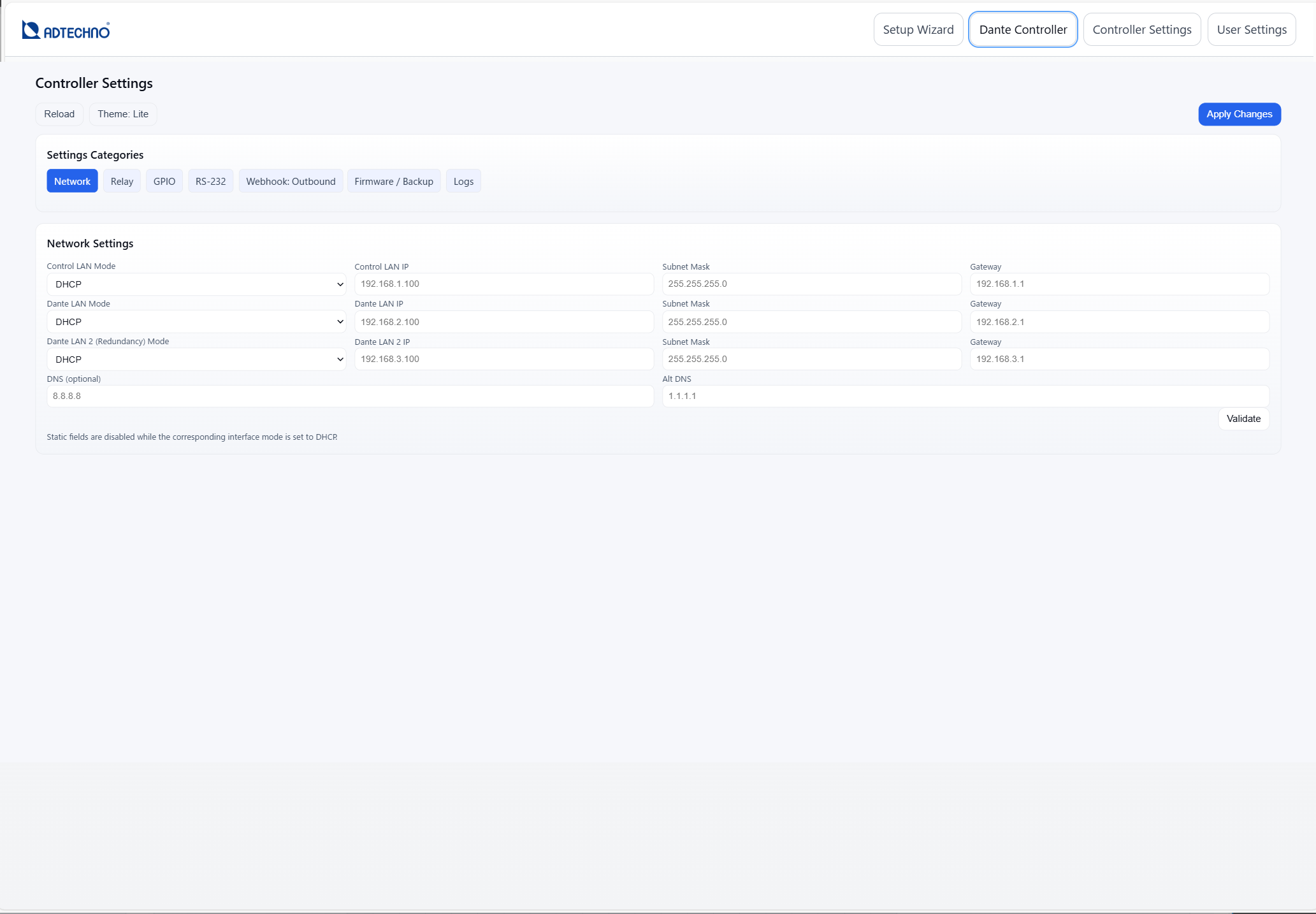

Network Settings screen
Network Settings

PC-Free Web GUI Operation via Touchscreen Display

By connecting a touchscreen display directly to the HDMI and USB HID ports, the DAV Control Nexus enables full Browser-based Web GUI operation without the need for a PC. This standalone configuration allows users to control Dante routing and system management intuitively through touch, reducing system complexity and improving reliability in permanent installations.

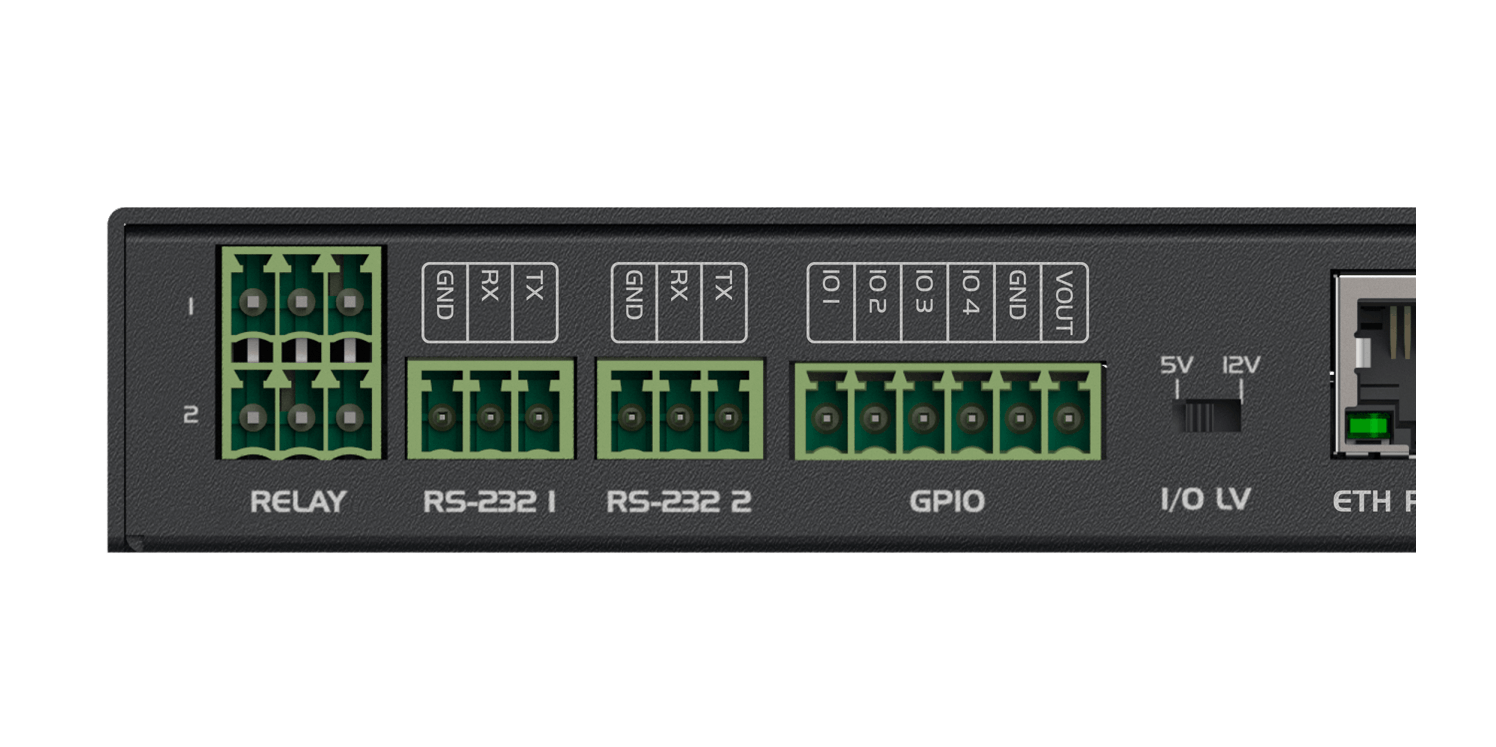

GPIO port

GPIO and Relay Control for External System Integration

The DAV Control Nexus features GPIO ports that support both input and output operation, along with built-in relay outputs. These interfaces enable flexible interaction with external devices such as sensors, switches, and indicators. Using open API commands via Telnet or RS-232 communication, users can trigger Dante routing changes, recall presets, and control external equipment, enabling seamless system automation and integration.

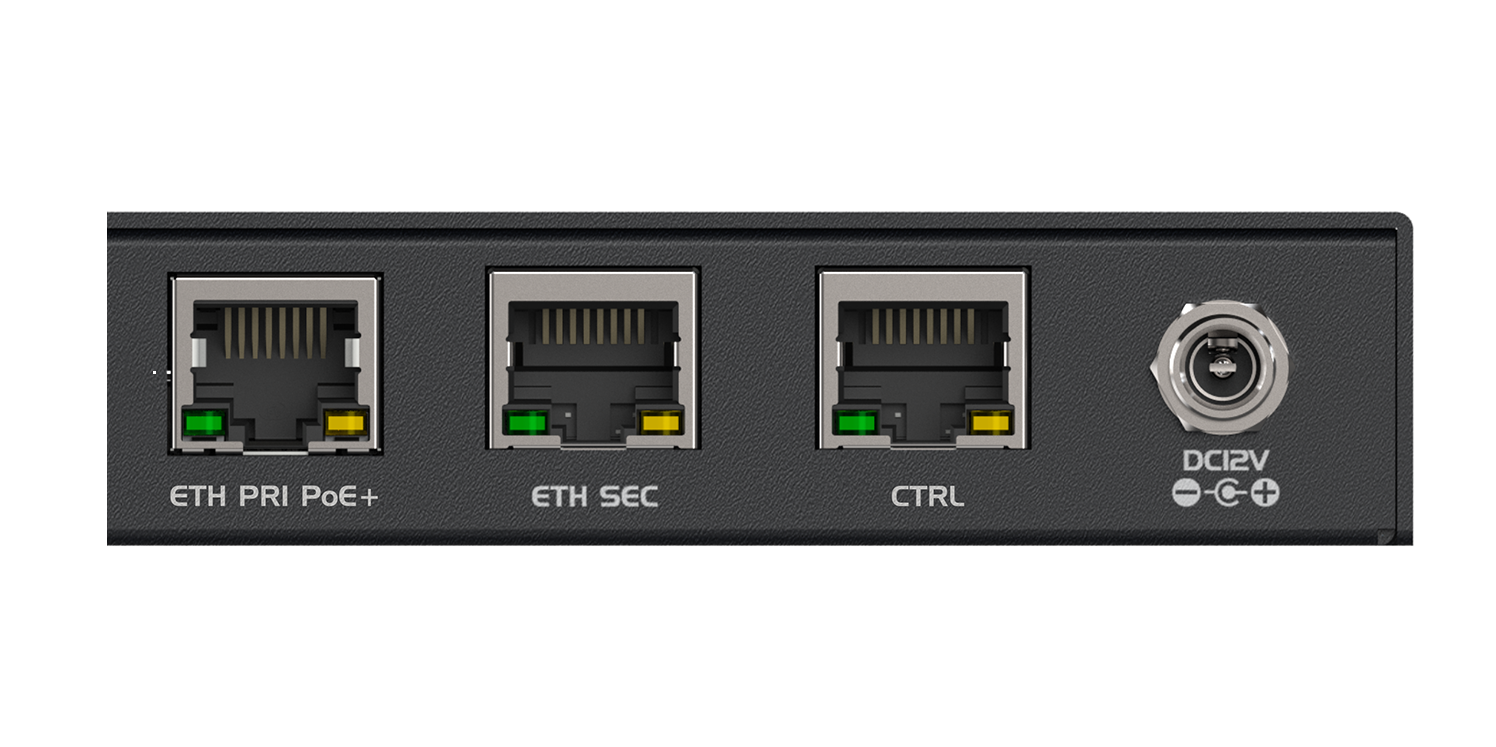

Dante Redundancy Support

The DAV Control Nexus supports Dante Redundancy through dedicated Primary and Secondary Ethernet ports. By connecting to redundant Dante networks, the system ensures continuous operation even in the event of a network failure. This design enhances reliability and is ideal for mission-critical environments such as live events, broadcast facilities, and permanent AV installations.

Dante Redundancy Support

Smart Notifications with Webhook Integration

DAV Control Nexus supports webhook outbound functionality, allowing the system to send HTTP notifications to external services when specific events occur. This enables status updates, alerts, and workflow automation, and allows seamless integration with collaboration tools, monitoring systems, and RPA platforms.

Open API Integration

By sending API commands over Telnet or network communication, or via RS-232 serial communication, the DAV-CNX1 can be flexibly integrated with major third-party control systems. This enables a wide range of automation and system integration, including external control of Dante routing, system status reference, and preset switching.

Specifications

Model No. DAV-CNX1
Product Name DAV Control Nexus - Dante Device Control Box
Network 1 x RJ-45 w/ PoE+ (IEEE802.3at) - Dante LAN Primary
1 x RJ-45 - Dante LAN Secondary
1 x RJ-45 - Control
RS-232 2 x 3-pin phoenix Female*1
GPIO 1 x 6-pin phoenix Female - 4 x GPIO, 1 x 12/5V Output
Relay 2 x 3-pin phoenix Female
GPIO I/O Lv. 1 x Slide Switch (5 or 12V 500mA)
Local Console I/O 1 x HDMI Monitor Out (GUI display) *2
2 x USB mouse / keyboard
Reset 1 x Reset Button
Power PoE+ or DC 12V - a screw type DC connector *3
Operating Temperature 0 - 40 degrees
Storage Temperature -20 - 60 degrees
Operating Humidity 0 - 90% *4
Dimension 180 (W) x 101 (D) x 24 (H) mm
Weight 610g
Box Content 1 x DAV-CNX1, 2 x Ear Bracket, 1 x Quick User Guide
Regulatory FCC / CE / UKCS / RoHS

*1 port for loop-out
*2 Resolution: 1920x1080 fixed
*3 PoE+ priority
*4 no condensation

Option

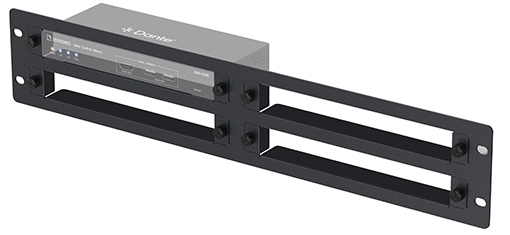

Universal 2U EIA Shelf Unit

DAV-02RU4 - Mount Kit for Quad Unit Placement

Model name: DAV-02-RU4

  • EIA 19-inch
  • 2U
  • Compatible with DAV-CNX1 & DAV-02
Universal 2U EIA Shelf Unit Model number DAV-02-RU4
