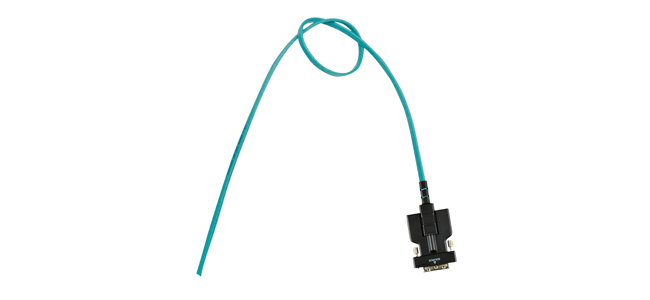

DVI-D GI-POF Active Optical CableADO-xxP

  • A cutting-edge "Japan-made" GI-POF cable wire
  • Robust from bending and flexible with a double cladding structure
  • Detachable connector for easy pipe laying
  • Support up to 100 meters transmission with 1920x1200, 60Hz
  • Free from EMI/RFI
  • Meet plenum cable standards, UL444/CMP
  • Light and compact

Related Links

Introduction

The ADO is DVI-D Active Optical Cable (AOC), features the pass-thru HDCP and the transmission of 1920x1200 at 60Hz (1.65Gbps) up to 100 meters without attenuation. The ADO utilized a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation. While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times. POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference (RFI).

The ADO cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

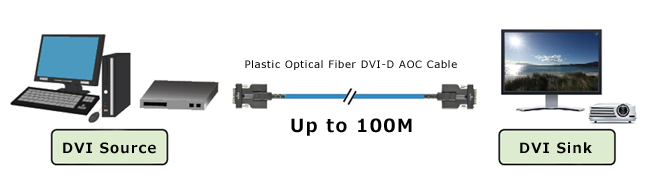

The ADO's each cable connector is specified for source and sink connections. Each connector heads utilizes detachable DVI connector making it easy to pull through conduit or tight spaces.

The versatility of the ADO makes it ideal for a wide range of applications: medical, broadcasting and factory automation where a long length signal transmission of high bandwidth signal is required.

Features

A cutting-edge "Japan-made" GI-POF cable wire

The ADO utilized a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation.

Robust from bending and flexible with a double cladding structure

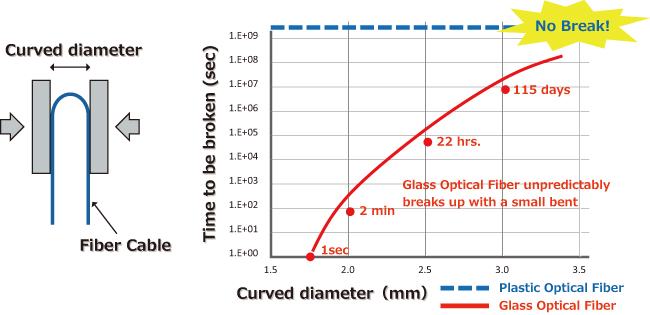

While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times.

Robust from bending and flexible with a double cladding structure
Robust from bending and flexible with a double cladding structure

Detachable connector for easy pipe laying

The ADO's each cable connector is specified for source and sink connections. Each connector heads utilizes detachable DVI connector making it easy to pull through conduit or tight spaces.

Detachable connector for easy pipe laying

Support up to 100 meters transmission with 1920x1200 at 60Hz

ADO supports the transmission of 1920x1200 at 60Hz (1.65Gbps) up to 100 meters without attenuation.

Support up to 100 meters transmission with 4K UHD@60 4:4:4 8bit

Free from EMI/RFI

POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference (RFI).

Meet plenum cable standards, UL444/CMP

The ADO cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

Light and compact

ADO POF cable is about 30% lighter than normal copper cable. 30 meters of AHO is only around 300g weight with 5mm diameter, equivalent to AWG12.

Specification

Model No. ADO-xxP ("xx" replaces with the length with meter)
Length 10 / 15 / 20 / 30 / 40 / 50
Connector TX: DVI-D single link male / RX: DVI-D single link male
Connector Max Width 29.7mm
Max Width after the removal of detachable DVI connector 14.2mm
Cable Type Active: POF 4 lines / Copper 6 lines
Max Bandwidth 1.65 Gbps
HDCP Pass thru
Power Consumption 0.3W Max
Color Cable Wire: Aqua Blue / Connector: Black
Cable wire thickness 5mm / AWG12
Allowable Bending Radius 5mm
Allowable Cable Wire Tension 20kgF / 200N
Allowable Connector Tension 20kgF / 200N
Operating / Storage Temperature -20℃ to 70℃ / -20℃ to 85℃
Operating / Storage Humidity 5 to 85% / 5 to 85%

※ Compatibility with ALL devices is not guaranteed
※ Due to product improvements, specifications are subject to change without notice.
