18Gbps Detachable HDMI Armored Hybrid Fiber CableAHG-xxxM

  • Support max. 4K UHD@60 4:4:4(18Gbps)
  • Support HDCP (2.2/1.4)/HDR/CEC/ARC
  • Unique three-layer structure withstand crush resistance 2000N/ tensile resistance 800N
  • Detachable connector
  • Metal housing with excellent electromagnetic compatibility
  • Max. 100 meters transmission
  • Equipped with USB power supply port for power insufficient condition

Related Links

Introduction

The AHG-xxxM is an active HDMI cable that uses a glass optical fiber cable with stainless steel and Kevlar ® coated on the cable. It can transmit signals up to 4K UHD@60 4:4:4 (maximum transmission band 18Gbps). It supports HDCP, HDR, CEC and also ARC transmission up to 50m, and can be widely used in critical long-distance transmission environments ranging from home theater environment to professional broadcasting application.

The cable coating has a three-layer structure, which consists of spiral stainless steel, military grade Kevlar® used for bulletproof vests, and TPU, which covers the optical fiber and copper wire in that order. With this unique structure, it has excellent crushing strength that can withstand a pressure of up to 2000N (203.9kgf) and high tensile strength of up to 800N (81.6kgf), yet it has the flexibility to withstand an allowable bending radius of 10mm. It maintains signals and functions without loss in the environment where the cable is often stepped on or pulled.

The connection terminal is a detachable HDMI Type A connector. After detaching Type A connector, the cable is with an HDMI Type D connector. When detaching HDMI Type A connector, the maximum size of the Type D connector is 14.6 mm, which is an ultra-fine specification, designed for easy installation even in places where difficult to install a normal HDMI cable, etc. like CD/PF pipes with an inside diameter of 22 mm.

The connector with the metal housing has excellent electromagnetic compatibility, less interfered from external noise, and minimizes noise generation from the main unit.

Signals can be transmitted up to 100 m without power supply, but in case the power of connected equipment is unstable, Micro USB ports for power supply can be connected at both ends of the cable.

While having the characteristics of optical fiber cable such as long-distance transmission (up to 100 m) and electromagnetic compatibility, this product has also high strength (crush resistance 2000 N/tensile resistance 800 N) and flexibility (allowable bending radius 10 mm). It can be used in various situations such as live events, conference, broadcasting sites, FA devices, embedded devices, server rooms, medical sites, and video production studios where it needs to avoid connection errors due to cable breaks.

Features

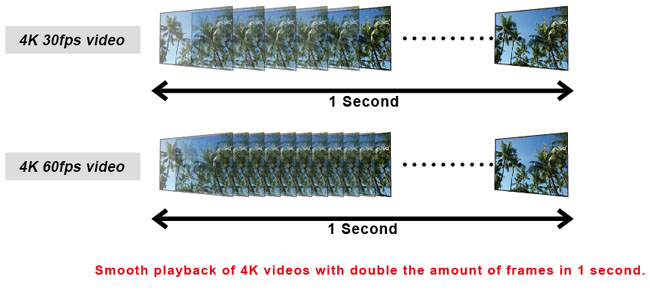

Max 4K UHD@60 4:4:4 (18Gbps)

AHG series cable support up to 4K UHD@60 4:4:4 8 bit transmission with the maximum transmission bandwidth of 18 Gbps.

Max 4K UHD@60 4:4:4 (18Gbps)

HDCP (2.2/1.4)/ HDR/ CEC/ ARC support

In addition to supporting HDCP (2.2/1.4), HDR, CEC, it also supports ARC up to 50m.

HDCP (2.2/1.4)/ HDR/ CEC/ ARC support

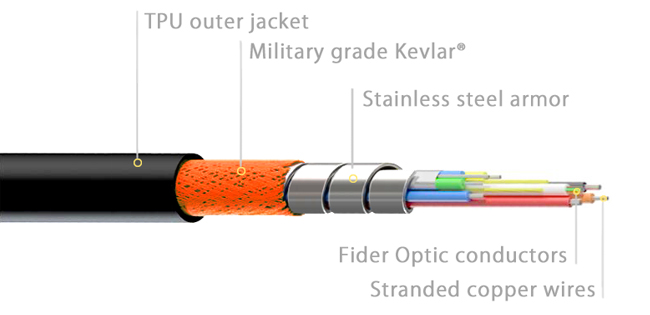

High strength and high flexibility with a unique 3-layer coasting structure

The cable has a three-layer coasting structure. The optical fiber and copper wire are coated by spiral stainless steel (high strength/high pressure resistance), Kevlar® (high strength/high heat resistance), and TPU (flexibility/wear resistance/tensile resistance) in that order. With this unique structure, it has excellent crush strength that can withstand a pressure of up to 2000N (203.9kgf) for a short time and high tensile strength up to 800N (81.6kgf). It can withstand an allowable bending radius of 10mm momentarily.

High strength and high flexibility with a unique 3-layer coasting structure

3-layer structure of spiral stainless steel, military grade Kevlar® used for bulletproof vest, flexible and stretchable TPU.

Detachable Connector

The connection terminals are with detachable HDMI Type A connectors. After detaching Type A connector, the cable is with an HDMI Type D connector. When detaching HDMI Type A connector, the maximum size of the Type D connector is 14.6 mm, which makes easy piping for CD/PF pipes.

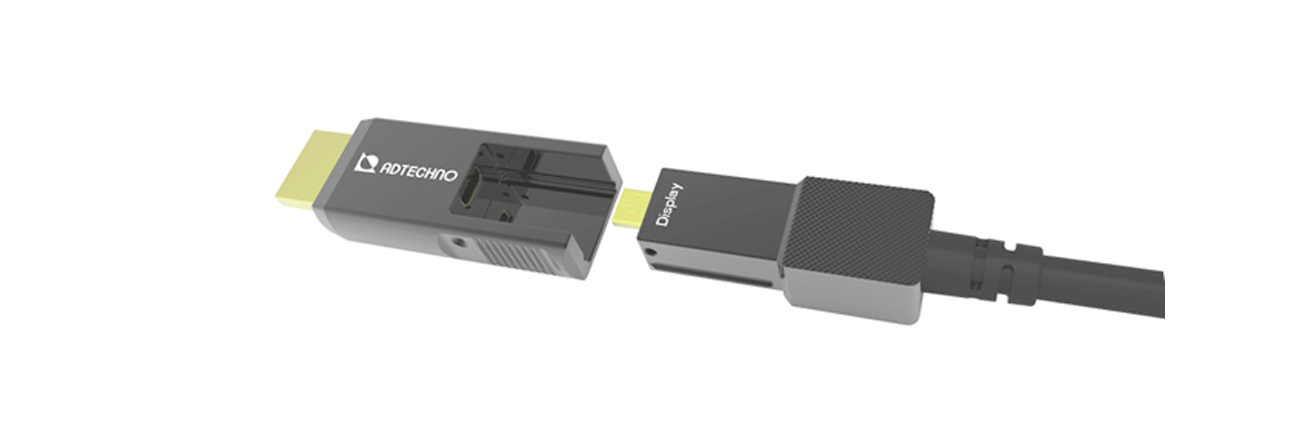

HDMI Type D connector after removing Type A connector

HDMI Type D connector after removing Type A connector

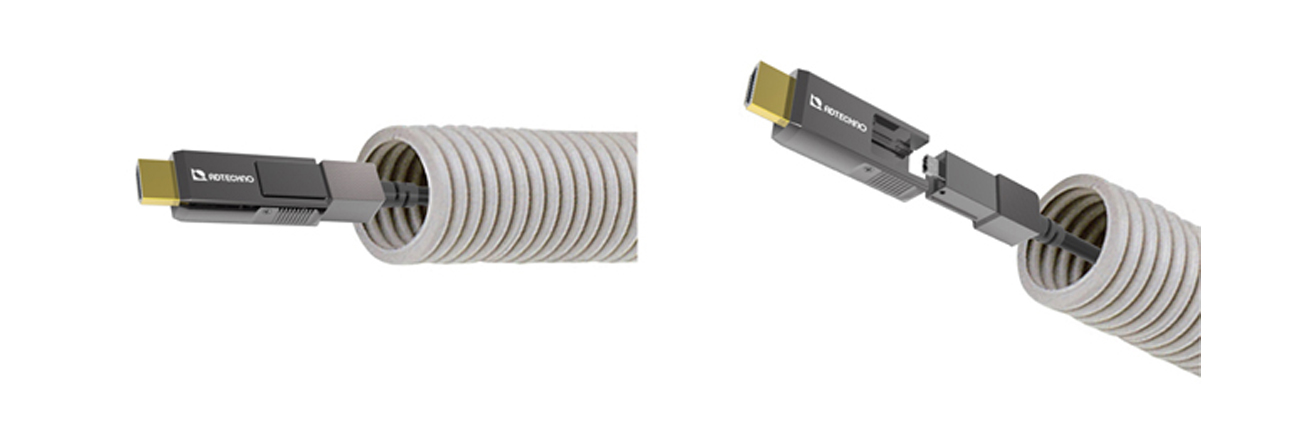

Designed for easy piping

Designed for easy piping

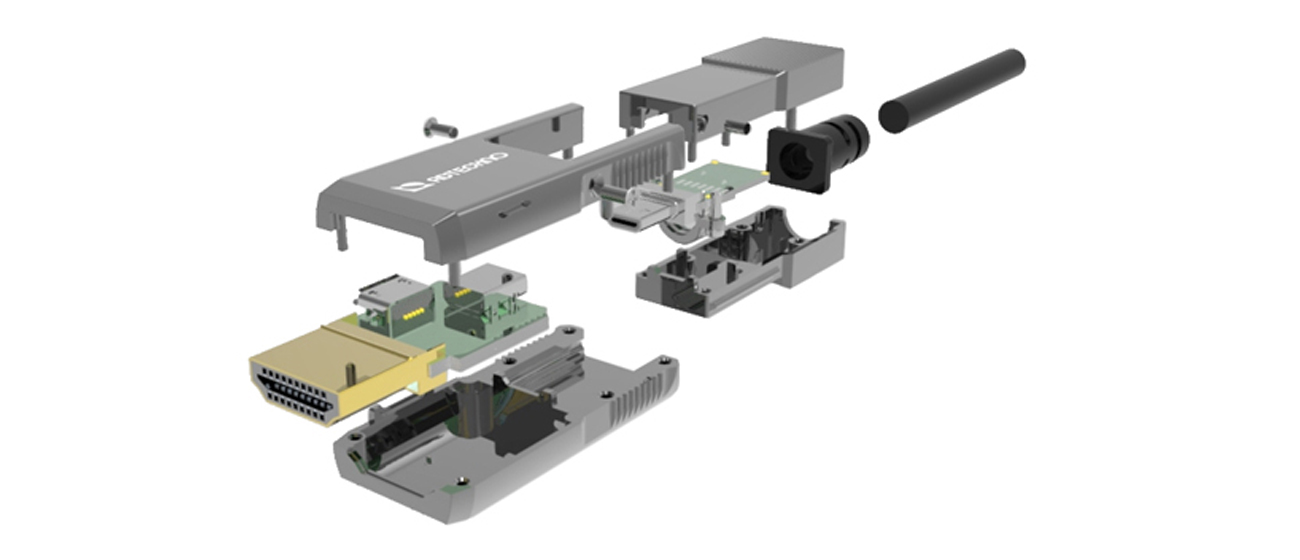

Excellent electromagnetic compatibility

The connector with the metal housing has excellent electromagnetic compatibility, less interfered from external noise that minimizes noise generation from the signal source.

Excellent electromagnetic compatibility

Metal housing with excellent electromagnetic compatibility

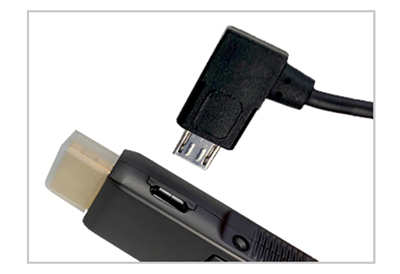

USB power supply port for insufficient power

Signals can be transmitted up to 100m without power supply, but in case of unstable power supply from the connected equipment, external power can be supplied from Micro USB power supply port.

USB power supply port for insufficient power

Equipped with power supply ports on both transmitting and receiving sides

Specification

Model No. AHG-xxM(xx means length of cable in meter)
Length 10 / 15 / 20 / 30 / 40 / 50 / 100
Connector Source HDMI Type A/ HDMI Type D (Detached)
Display HDMI Type A/ HDMI Type D (Detached)
Connector diameter with Type A 20.5mm (HDMI Type A connector)
Connector diameter with Type D 14.6mm (HDMI Type D connector)
Cable Type Active:GOF4、Copper 7
Max Bandwidth 18Gbps
HDCP YES (2.2 / 1.4)
HDR YES
CEC YES
ARC YES*1
External Power Micro USB
Power Consumption 0.25W (Max.)
Color Cable:Black / Connector: Gray
Cable Coating Three Layer(Stainless Steel/Kevlar®/TPU)
Cable Wire Diameter 5.8mm±0.2mm
Allowable Bending Radius Long Term:20mm/ Instant:10mm
Max. Crush Resistance Long Term:1000N (102kgf)/ Instant :2000N (203.9kgf)
Max. Tensile Long Term:400N(40.8kgf)/ Instant:800N(81.6kgf)
Max. Resolution 4K UHD@60 4:4:4 8bit
Operation/Storage Temp. 0°C to 50°C/ -40°C to 70°C
Storage/ Operation Humidity 10 to 80%
Package Contents HDMI Type A x 2/ USB power cable (Micro B to A) x 2
Warranty 12 months
Certificate FCC / CE / RoHS

*1) Support ARC for 50m
*2) The numbers indicate the characteristics of the cable but do not guarantee performance.
*3) Pipering line with Φ20mm or more is recommended.
*4) It shows the characteristics of the metal housing but does not guarantee noise-free.
*5) It provides auxiliary power in the event of a power shortage or instability of the connected device. Operation with all devices is not guaranteed.
*6) Appearance and specifications are subject to change without notice.
*7) Operation with all devices is not guaranteed.
*8) Kevlar ® is a trademark or registered trademark of an affiliate of DuPont, Inc. in the United States.
