HDMI 1.4 compliant GI-POF Active Optical CableAHO-xxN

  • HDMI 1.4 compliant
  • A cutting-edge "Japan-made" GI-POF cable wire
  • Robust from bending and flexible with a double cladding structure
  • Support up to 100 meters transmission with 10.2Gbps bandwidth
  • Free from EMI/RFI
  • Meet plenum cable standards, UL444/CMP
  • Light and compact

Related Links

Introduction

The AHO is HDMI Active Optical Cable (AOC), features the pass-thru HDCP and the transmission of 4K UHD at 60Hz (10.2Gbps) up to 100 meters without attenuation. The AHO utilized a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation. While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times. POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference (RFI).

The AHO cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

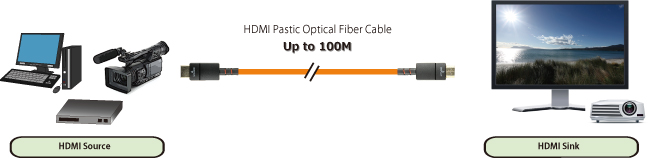

The AHO's each cable connector is specified for source and sink connections.

The versatility of the AHO makes it ideal for a wide range of applications: medical, broadcasting and factory automation where a long length signal transmission of high bandwidth signal is required.

Features

A cutting-edge "Japan-made" GI-POF cable wire

The AHO utilized a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation.

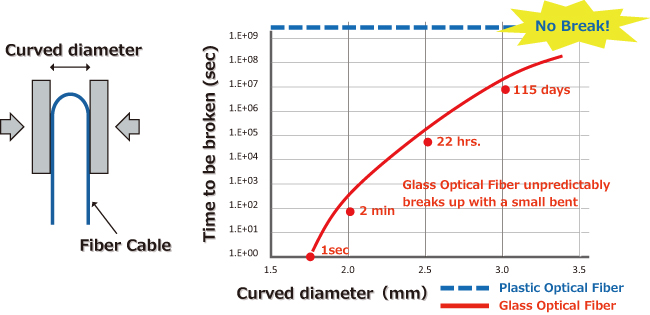

Robust from bending and flexible with a double cladding structure

While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times.

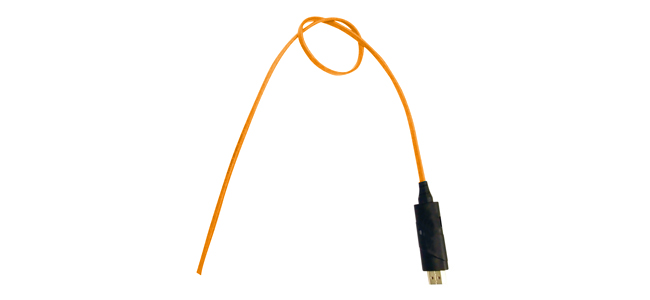

Robust from bending and flexible with a double cladding structure

Support up to 100 meters transmission with 10.2Gbps bandwidth

AHO supports 4K@60p 4:2:0 8bit, up to 10.2Gbps of data transmission. It also supports CEC.

Support up to 100 meters transmission with 10.2Gbps bandwidth

Free from EMI/RFI

POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference (RFI).

Meet plenum cable standards, UL444/CMP

The AHO cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

Light and compact

AHO POF cable is about 30% lighter than normal copper cable. 30 meters of AHO is only around 300g weight with 5mm diameter, equivalent to AWG12.

Specification

Model No. AHO-xxN ("xx" replaces with the length with meter)
Length 10 / 15 / 20 / 30 / 40 / 50 / 100
Connector TX: HDMI type A male / RX: HDMI type A male
Connector Max Width 20mm
Cable Type Active: POF 4 lines / Copper 6 lines
Maximum Bandwidth 10.2 Gbps
HDCP Pass thru
HDR NO
CEC YES
HEAC NO
Power Consumption 0.7W Max
Color Cable Wire: Orange / Connector: Black
Cable wire thickness 5mm / AWG12
Allowable Bending Radius 5mm
Allowable Cable Wire Tension 20kgF / 200N
Allowable Connector Tension 20kgF / 200N
Operating / Storage Temperature -20℃ to 70℃ / -20℃ to 85℃
Operating / Storage Humidity 5 to 85% / 5 to 85%

※ Compatibility with ALL devices is not guaranteed
※ Due to product improvements, specifications are subject to change without notice.
