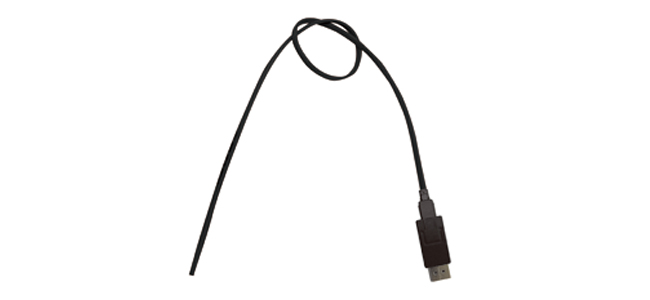

18Gbps HDMI 2.0 Plastic Optical Fiber CableAHP-xxM

  • HDMI 2.0a compliant
  • A cutting-edge "Japan-made" GI-POF cable wire
  • Robust from bending and flexible with a double cladding structure
  • Support up to 100 meters transmission with 18Gbps bandwidth
  • Support HDCP 2.2 and HDR
  • No external power required
  • Meet plenum cable standards, UL444/CMP

Related links

Introduction

The AHP is a HDMI Active Optical Cable (AOC), features the pass-thru HDCP and the transmission of 4K UHD at 60Hz (18Gbps) up to 100 meters without attenuation. The AHP utilized a cutting edge "Japan-made" Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation. While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times. POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference (RFI).

The AHP cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

The versatility of the AHT makes it ideal for a wide range of applications: medical, broadcasting and factory automation where a long length signal transmission of high bandwidth signal is required.

Features

A cutting-edge "Japan-made" GI-POF cable wire

The AHP utilized a cutting edge "Japan-made" Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation.

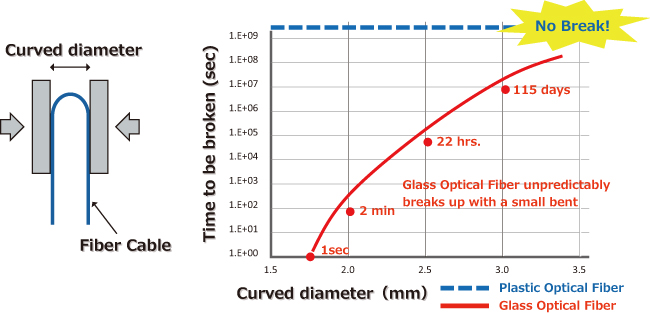

Robust from bending and flexible with a double cladding structure

While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times.

Robust from bending and flexible with a double cladding structure

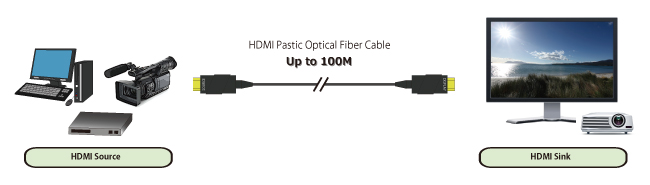

Support up to 100 meters transmission with 18Gbps bandwidth

AHP supports 4K@60p 4:4:4 8bit, up to 18Gbps of data transmission. It also supports HDR and CEC.

Support up to 100 meters transmission with 18Gbps bandwidth

Meet plenum cable standards, UL444/CMP

The AHP cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

Light and compact

AHP POF cable is about 30% lighter than normal copper cable. 30 meters of AHP is only around 300g weight with 5mm diameter, equivalent to AWG12.

Specification

Model No. AHP-xxM ("xx" replaces with the length with meter)
Length 10 / 15 / 20 / 30 / 40 / 50 / 100
Connector TX: HDMI type A male / RX: HDMI type A male
Connector Max Width 20mm
Cable Type Active: POF 4 lines / Copper 6 lines
Maximum Bandwidth 18 Gbps
HDCP Pass thru
HDR YES
CEC YES
HEAC NO
Power Consumption 1.25W Max
Color Black
Cable wire thickness 5mm / AWG12
Allowable Bending Radius 5mm
Allowable Cable Wire Tension 20kgF / 200N
Allowable Connector Tension 4kgF / 40N
Operating / Storage Temperature -20℃ to 70℃ / -20℃ to 75℃
Operating / Storage Humidity 5 to 85% / 5 to 85%

※ Compatibility with ALL devices is not guaranteed
※ Due to product improvements, specifications are subject to change without notice.
