Super Slim Armored HDMI 2.0 Active Optical CableAHS-xxxM

  • Ultra-fine diameter (3.8mm in diameter) / High strength (crush resistance 2000N, tension resistance 800N)
  • Lightweight and flexible cable wire (minimum bend radius 38mm)
  • Noise-free (excellent electromagnetic compatibility) zinc alloy connectors
  • 4K UHD@60 4:4:4 (18Gbps) transmission up to 30m
  • HDR / HDCP(2.2 /1.4) / CEC

Related Links

Introduction

This product is an ultra-slim active HDMI cable that uses high-strength glass fiber cable coated with stainless steel and Kevlar®. It adopts a ultra-fine diameter 3.8mm cable. Despite its thinness, the cable coating has a three-layer structure, with stainless steel in a spiral structure, military-grade Kevlar® used in bulletproof vests, and flexible and stretchable TPU covering the fiber optic and copper wire in that order. This unique structure has achieved excellent compression strength that can withstand a maximum of 2000N (204kgf) of pressure and a high tensile strength of up to 800N (81kgf). It can maintain the signal and function without damaging them even in places where the cable is often stepped on or pulled, such as at work sites or facilities.

AHS uses a hybrid configuration with OM3 standard fiber optic with extremely low loss for signal transmission and copper wire for other signal lines. With the low loss fiber optic, long distance transmission of up to 4K UHD@60 4:4:4 (maximum transmission bandwidth 18Gbps) signals is achieved without external power supply. In addition, HDR (High Dynamic Range), which can express more than 10 times the brightness harmony of the past, CEC, and HDCP are supported by signal transmission through copper wire. It can be widely used from high-quality home theater environments for connecting to AV receivers installed at a distance to broadcasting and editing work that requires 4K editing.

AHS, which is lightweight (about 300g for a length of 10m) compared to passive cables of the same length or conventional active cables (about 680g for a length of 10m), is easy to carry and it’s a soft cable (minimum allowable bending radius 38mm), so it reduces the burden on the sink equipment side connector when installing. The connector part is also ultra-compact design with a depth of only 30mm. It is smaller than conventional active cables. In addition, the connector case made of zinc alloy has a high-quality appearance and robust strength, and is also excellent in electromagnetic compatibility, resistant to interference from external noise, and minimizes noise generation from the main body. This product with features of sustaining ultra-high strength (pressure resistance 2000N, tensile resistance 800N), ultra-fine diameter (diameter 3.8mm), and noise-free over long distances (up to 30m), can be used in various scenes where connection errors due to cable disconnection must be avoided, such as home theaters, live events, video production studios, medical sites, distribution sites, FA equipment, embedded equipment, server rooms, and general conference rooms.

Features

Ultra-fine diameter (3.8mm) / high strength cable

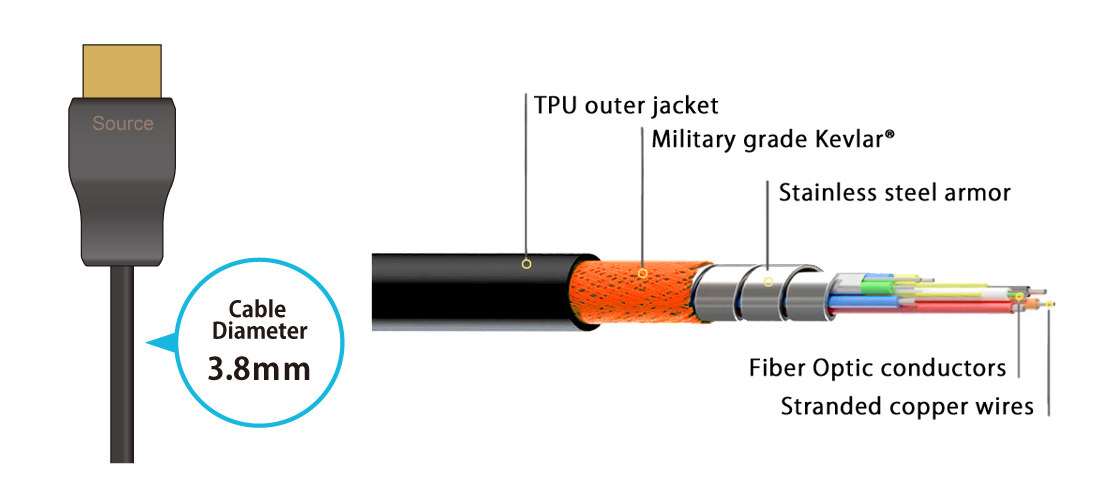

AHS has a very thin diameter at 3.8mm. Despite its thinness, the cable coating has a 3-layer structure, consisting of stainless steel (high strength and high pressure resistance), Kevlar (high strength and high heat resistance), and TPU (flexible, wear-resistant, and tensile resistant) in that order, covering the fiber optics and copper wire. This unique structure allows for excellent crush resistance that can withstand up to 2000N (204kgf) of pressure and a high tensile strength of up to 800N (81kgf). The cable can maintain signal and function without being interfered in environments or equipment where the cable is frequently stepped on or pulled, such as on construction sites and in facilities.

Ultra-fine diameter (3.8mm) / high strength cable

*Cable wire jacket is selectable from LSZH,UMP and TPU

4K UHD@60 4:4:4 (18Gbps) transmission up to 30m

To achieve high quality signal transmission, AHS uses a hybrid configuration by adopting both OM3 standard optical fiber and copper wire. Low-loss optical fiber enables long-distance transmission up to 4K UHD @ 60 4: 4: 4 (maximum transmission bandwidth 18 Gbps) signals without external power supply.

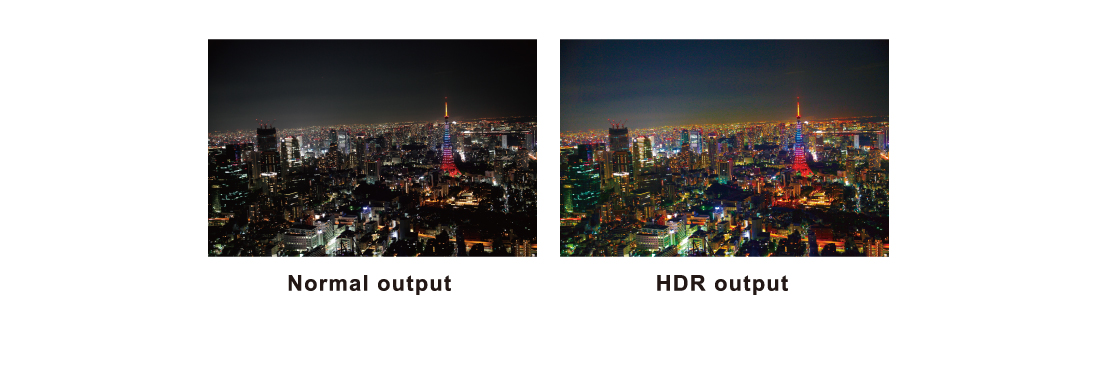

In addition, HDR (High Dynamic Range) CEC, and HDCP, are supported by transmitting signals through copper wire. AHS can be widely used in the environment from high-quality home theater environment to broadcasting.

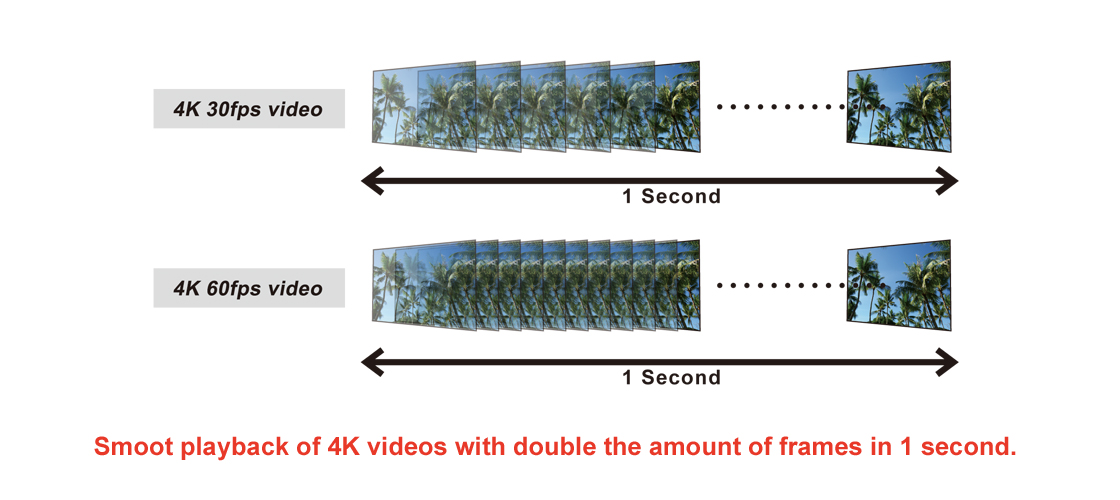

Transmits maximum 4K UHD@60 4:4:4 (18Gbps) up to 30 meters. Transmits maximum 4K UHD@60 4:4:4 (18Gbps) up to 30 meters.

Lightweight and flexible cable wire (minimum bend radius 38mm)

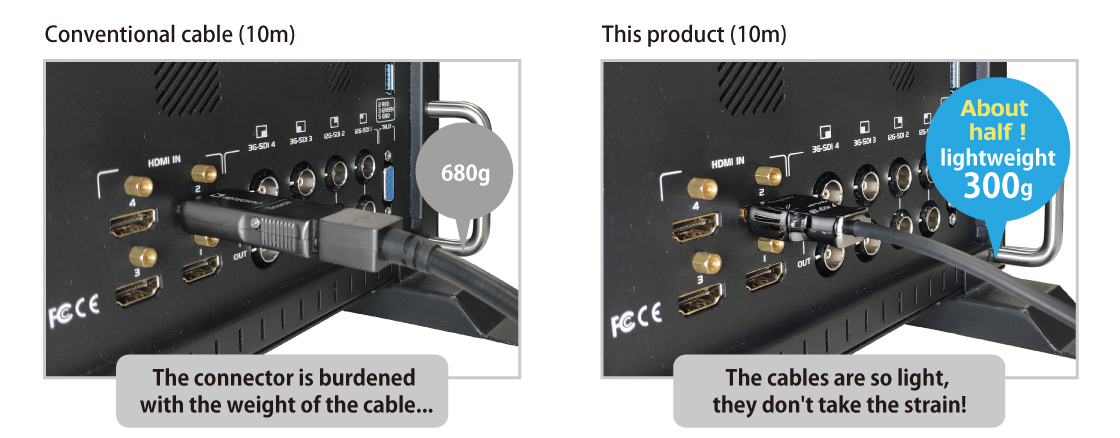

Compared to copper wire cables of the same length and conventional active cables (10m about 680g), it is lightweight (10m about 300g), and soft (minimum allowable bending radius 38mm).

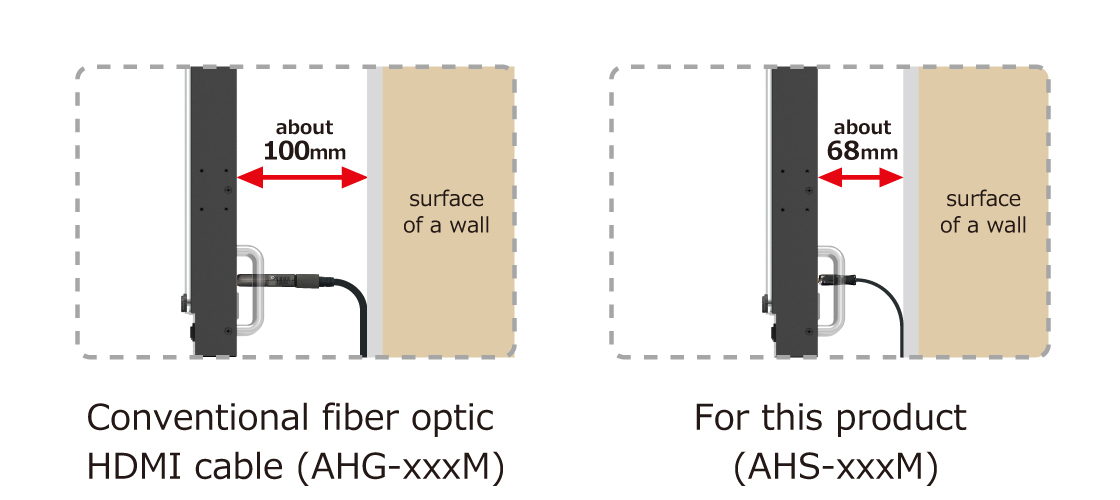

In addition, the connector part is an ultra-compact design with a length of only 30 mm. It is smaller than conventional active cables and is ideal for use in wall-mounted equipment.

Lightweight and flexible (minimum bend radius 38mm) cable is used Lightweight and flexible (minimum bend radius 38mm) cable is used

The connector made of zinc alloy, providing robustness and excellent electromagnetic compatibility.

The connector housing made of zinc alloy material has a high-quality robust design, and also has excellent electromagnetic compatibility, which minimizes noise generation from the main unit and less interfered by external noise.

The connector made of zinc alloy, providing robustness and excellent electromagnetic compatibility.

Specification

Series Super Slim Armored HDMI 2.0 Active Optical Cable
Model No. AHS-xxxM(xxx means cable length)
Length 10 / 15 / 20 / 30
Connector Source HDMI Type A
Display HDMI Type A
Dimension 19mm x 30mm x 9mm (W x H x D)
Cable Type Active:4 GOF、7 Copper
Max Speed 18Gbps
HDCP Passthrough(2.2 / 1.4)
HDR Support
CEC Support
ARC No Support
External power None
Max Power Consumption 0.25w
Color Cable:Black / Connector:Metallic Gray
Cable Three Layers(Stainless Steel / Kevlar® / TPU)
Cable Diameter 3.8mm ±0.2mm
Bending Radius Minimum 38mm
Max. Crush Resistance Long Term:1000N(102kgf)/ Instant:2000N(204kgf)
Max. Tensile Strength Long Term:430N(44kgf)/ Instant:800N(81kgf)
Max. Connector Tensile Strength 250N(25kgf)
Cable Direction Yes
Max Resolution 4KUHD@60 4:4:4 8bit
Operational Temperature / Storage Temperature 0℃~50℃ / -40℃~70℃
Operational Humidity / Storage Humidity 10~80%
Warranty 1Year
Certificate FCC / CE / RoHS

*Note: There may be cases of insufficient power or instability with certain connecting devices. We do not guarantee operation with all devices.
*Note: This indicates the characteristics of the product and does not guarantee complete noise-free performance.
*Note: There may be changes to the appearance and specifications without notice. Please be advised.
*Note: Kevlar is a trademark or registered trademark of DuPont company affiliates.
