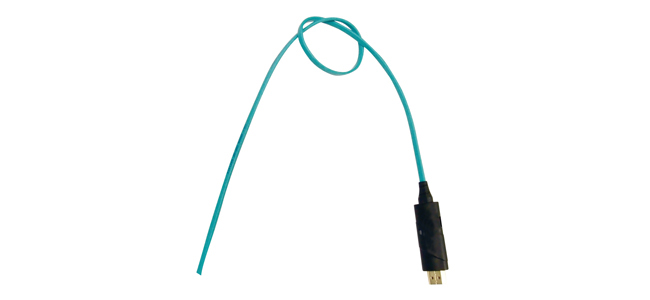

HDMI 2.0a compliant GI-POF Active Optical CableAHT-xxB

  • HDMI 2.0a compliant
  • A cutting-edge "Japan-made" GI-POF cable wire
  • Robust from bending and flexible with a double cladding structure
  • Support up to 50 meters transmission with 18Gbps bandwidth
  • Support HDCP 2.2 and HDR
  • Free from EMI/RFI
  • Meet plenum cable standards, UL444/CMP
  • Light and compact

Related Links

Introduction

The AHT is HDMI Active Optical Cable (AOC), features the pass-thru HDCP and the transmission of 4K UHD at 60Hz (18Gbps) up to 50 meters without attenuation. The AHT utilized a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation. While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times. POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference. (RFI)

The AHT cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

The AHT's each cable connector is specified for source and sink connections. USB port at sink connector is available to provide power in case of insufficient power supply from connected devices.

The versatility of the AHT makes it ideal for a wide range of applications: medical, broadcasting and factory automation where a long length signal transmission of high bandwidth signal is required.

Features

A cutting-edge "Japan-made" GI-POF cable wire

The AHT utilized a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation.

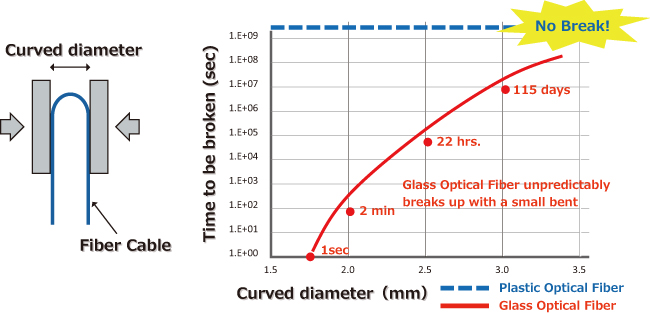

Robust from bending and flexible with a double cladding structure

While the typical AOC with Grass Optical Cable (GOF) wires are said to endure the bending radius of 15 to 20mm, POF does not break in small bent of only 5mm radius - it also provides a high flexibility of the resistance to the repeated bending of more than 100K times.

Robust from bending and flexible with a double cladding structure

Support up to 50 meters transmission with 18Gbps bandwidth

AHT supports 4K@60p 4:4:4 8bit, up to 18Gbps of data transmission. It also supports HDR and CEC.

Support up to 50 meters transmission with 18Gbps bandwidth

Free from EMI/RFI

POF also provides low power consumption and electromagnetic interference (EMI) free with thin and light weight that makes the ease of carrying and no affection to the integrity of signals in areas of high EMI and radio frequency interference (RFI).

Meet plenum cable standards, UL444/CMP

The AHT cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

Light and compact

AHT POF cable is about 30% lighter than normal copper cable. 30 meters of AHT is only around 300g weight with 5mm diameter, equivalent to AWG12.

Power supply through USB

The AHT's each cable connector is specified for source and sink connections. USB port at sink connector is available to provide power in case of insufficient power supply from connected devices.

Power supply through USB

Specification

Model No. AHT-xxB ("xx" replaces with the length with meter)
Length 10 / 15 / 20 / 30 / 40 / 50
Connector TX: HDMI type A male / RX: HDMI type A male with micro USB type B female
Connector Max Width 20mm
Cable Type Active: POF 4 lines / Copper 6 lines
Maximum Bandwidth 18 Gbps
HDCP Pass thru
HDR YES
CEC YES
HEAC NO
Power 5V through USB
Power Consumption 1.7W Max
Color Cable Wire: Aqua Blue / Connector: Black
Cable wire thickness 5mm / AWG12
Allowable Bending Radius 5mm
Allowable Cable Wire Tension 20kgF / 200N
Allowable Connector Tension 20kgF / 200N
Operating / Storage Temperature -20℃ to 70℃ / -20℃ to 85℃
Operating / Storage Humidity 5 to 85% / 5 to 85%

※ Compatibility with ALL devices is not guaranteed.
※ Due to product improvements, specifications are subject to change without notice.
