MPO Detachable HDMI Fiber Cable AMH-xxxM

PAC500AU
PAC500AU_BACK
  • Excellent electromagnetic compatibility
  • Lossless video transmission up to 100m
  • Adoption of fiber-optic patch cables with MPO connectors
  • Support 4K UHD@4:4:4 (18Gbps)
  • Support HDCP (2.2/1.4)/HDR/CEC/ARC

Related Links

Introduction

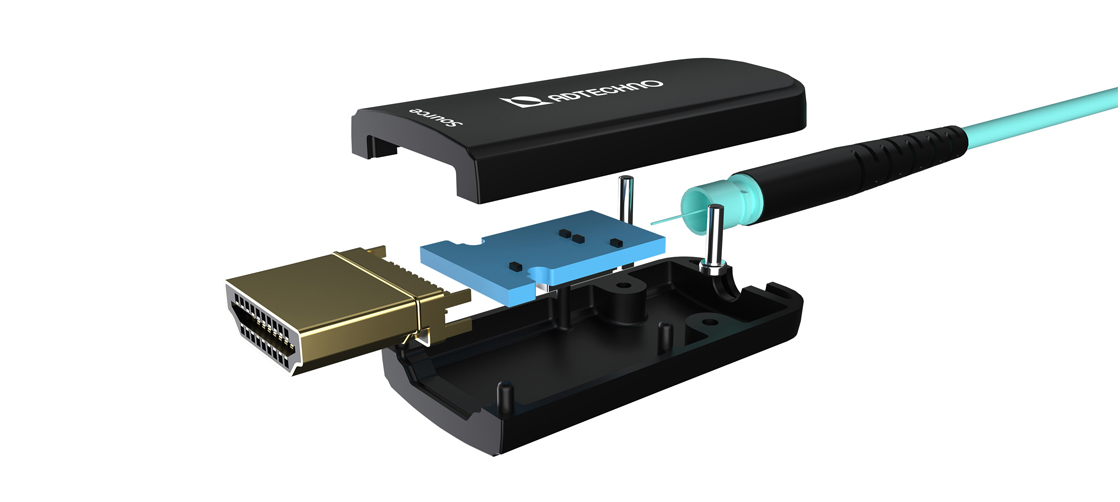

AMH is a set of long optical fiber HDMI cables that enables transmission of up to 100 meters by using an MPO connector-equipped optical fiber patch cable with a multi-core fiber that allows one-touch detachment and attachment between HDMI transmitter and receiver units. By adopting high-performance multi-mode VCSEL lasers and OM3 standard optical fibers with low data loss, it achieves lossless transmission of up to 4K UHD@60.

The HDMI connector part, which adopts a metal housing, has excellent electromagnetic compatibility, is less susceptible to external noise interference, and minimizes noise generated from the main unit. In addition, the MPO connector-equipped optical fiber patch cable utilizes full optical fiber transmission that does not rely on electrical signals through copper wires, making it ideal for medical equipment that require noise reduction measures, but also for various facilities and equipment installations, such as education, surveillance, events, signage, and theater that require a long distance transmission and installation of 4K HDMI signals

Features

Excellent electromagnetic compatibility

The HDMI connector of AMH, which features a metal casing, boasts excellent electromagnetic compatibility, is less susceptible to external noise interference, and minimizes noise emitted from the main body. In addition, the MPO connector-equipped optical fiber patch cable uses full optical fiber transmission that does not rely on electrical signals through copper wire, making it ideal for locations that require noise reduction measures, such as medical equipment.

Excellent electromagnetic compatibility

Lossless transmission up to 100 meters

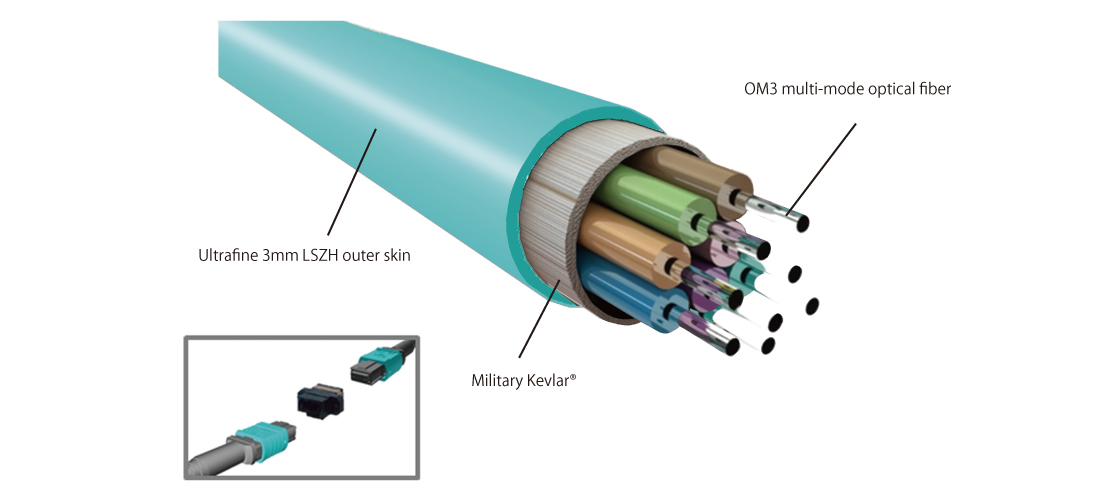

With the adoption of high-performance multi-mode VCSEL lasers and OM3 standard optical fibers with low data loss, lossless video transmission is achieved. Using the MPO connector-equipped optical fiber patch cable with a multi-core fiber that allows one-touch detachment and attachment, it is possible to transmit up to 100 meters. Furthermore, the maximum size of the MPO connector is less than 13mm, making it easy to pass through narrow conduits, such as 16mm CD pipes and medical monitor arms, where standard HDMI cables (approximately 22mm in width) would be difficult to install.

Lossless transmission up to 100 meters

Support 4K UHD@4:4:4 (18Gbps)

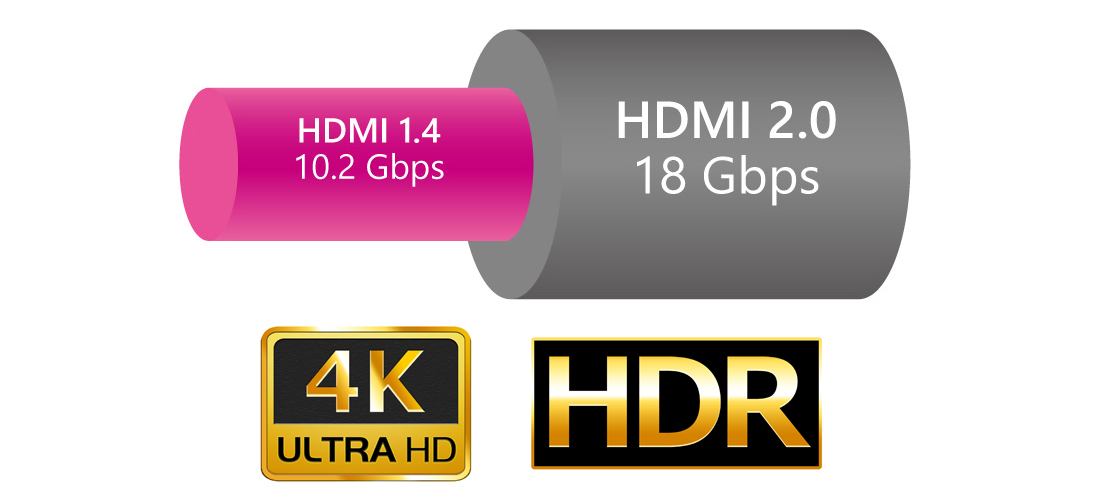

This cable can transmit signals up to a maximum of 4K UHD@60 4:4:4 (maximum transmission bandwidth of 18Gbps). It is also compatible with HDCP, HDR, CEC, and ARC transmissions, and can be widely used for permanent connections between sources and display devices, from business and medical use to built-in applications in remote locations.

Support 4K UHD@4:4:4 (18Gbps)

Specification

[HDMI Unit]

Unit Source Display
Length MPO connector fiber cable up to 100m
HDMI connector HDMI Type A HDMI Type A
Fiber connector 12 Wire MPO
Max transmission Speed 18Gbps
HDCP Pass through(2.3 / 2.2 / 1.4)
HDR Support
CEC Support
ARC Support
External Power - USB Type A 5V/0.5A or more
Operation Temp/Storage Temp 0℃~50℃ / -20℃~70℃
Relative Humidity 10~80%
Max power consumption 0.3W 0.4W
Warranty 12 months(limited to the IC inside the connector)

[MPO fiber cable]

Cable length Max 100m
Cable Type OM3
Wave length 850nm
Reflective loss ≧30dB
Number of wire 8 wires
Connector type 12 wire MPO
Connection loss ≦0.35dB
Cable color Aqua
Cable LSZH
Cable OD 3.0mm±0.2mm
Bending radius 30mm
Tension Strength 49N(5kgf)

[MPO Adaptor]

Connector Type 12 wire MPO
