Micro HDMI 2.0 compliant GI-POF Active Optical Cable with HDMI (A), DisplayPort and DVI-D sub connectorsAOD-xxM

  • Micro HDMI 2.0 compliant
  • Detachable HDMI (A), HDMI (A) with EQ, DisplayPort and DVI-D Connectors
  • Japan-Made GI-POF (Plastic Optical Fiber) Cable
  • High durability (minimum bending radius of 5mm)
  • Support for 4K UHD@60 4:4:4
  • HDR support
  • Up to 100m
  • Meets Plenum standards UL444/CMP
  • Light and compact

Related Links

Introduction

The AOD cable series is an active Micro HDMI plastic optical fiber cable with detachable HDMI (A), DisplayPort, DVI-D and HDMI A with EQ sub-modules. Because the modules are detachable the cable can be used in different configurations. HDMI module with EQ and USB port is available to provide power in case of insufficient bus power and when daisy chaining cables. *1)The size of HDMI type D connector is 12.6mm making it possible to fit conduit with a diameter of 22mm.

This makes it possible to use cable where normal DVI-D and HDMI cables would not fit. *2

When using HDMI-HDMI and DP-HDMI the maximum bandwidth is 18Gbps and supports resolutions of up to 4K UHD@60 4:4:4. HDCP and HDR are also supported. Using single link DVI-D modules the maximum bandwidth is 4.95Gbps. The AOD utilizes a cutting edge "Japan-made" perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wire that offers high transmission bandwidth with low attenuation. While the typical AOC with Glass Optical Cable (GOF) wires are said to endure a bending radius of 15 to 20mm, POF does not break at a small bending radius of only 5mm - it also provides a high flexibility of resistance to repeated bending.

The cable wire is also coated with a fire-retardant plastic jacket compliant with UL444 CMP, plenum cable that ensures the prevention of fire and noxious smoke spread at plenum space installation.

The versatility of the AOD makes it ideal for a wide range of applications: medical, digital signage, home theater, broadcasting, and factory automation where a long length signal transmission of high bandwidth signal is required.

Features

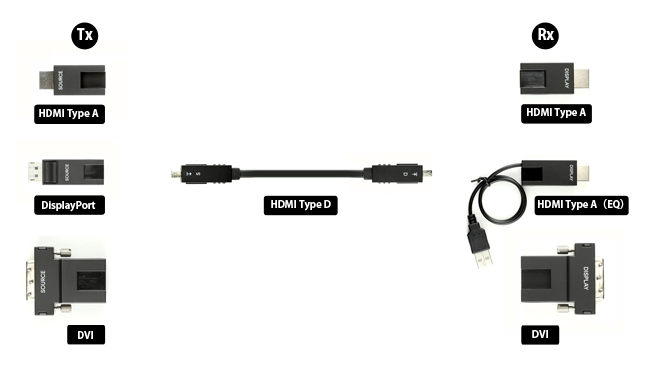

Detachable HDMI, DisplayPort and DVI-D Connectors

By using detachable sub-modules for HDMI A, DisplayPort and DVI-D it is possible to customize the cable according to your needs. The cable itself without sub connectors can be used as a Micro HDMI cable.

Robust from bending and flexible with a double cladding structure

Easy cabling due to detachable connectors

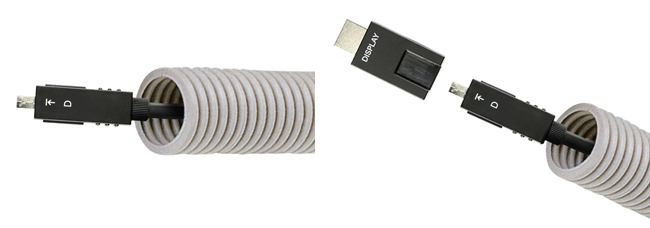

The size of HDMI type D connector is 12.6mm making it possible to fit conduit with a diameter of 22mm. This makes it possible to use cable where normal DVI-D and HDMI cables would not fit. *2

Robust from bending and flexible with a double cladding structure

Cutting-edge "Japan-made" GI-POF cable wire

AOD series cables are made utilizing cutting edge “Japan Made” perfluorinated Graded-Index Polymer Optical Fiber (GI-POF) technology cable wires that offer high transmission bandwidth with low attenuation

Robust from bending and flexible with a double cladding structure

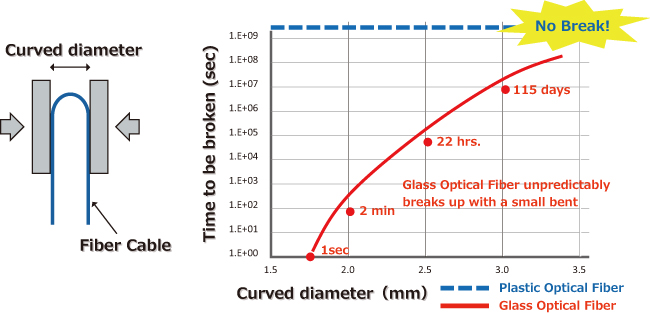

While the typical AOC with Glass Optical Cable (GOF) wires are said to endure bending radius of 15 to 20mm, POF does not break at a small bending radius of only 5mm - it also provides a high flexibility of resistance to repeated bending.

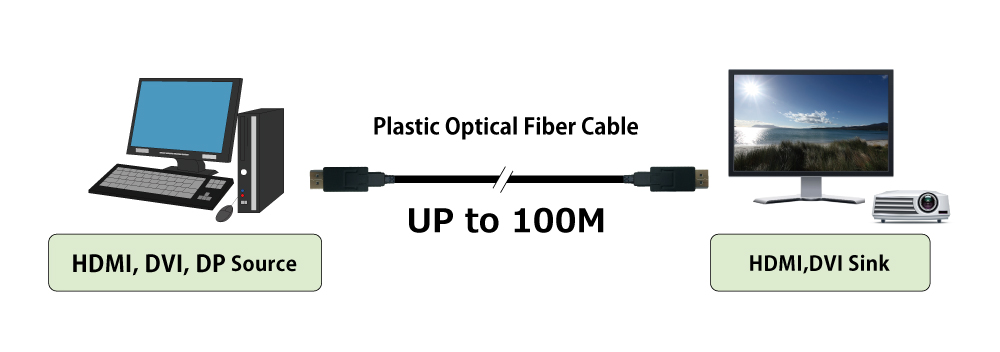

Support up to 100 meters transmission with 4K UHD@60 4:4:4 8bit
Support up to 100 meters transmission with 4K UHD@60 4:4:4 8bit

Supports up to 100m transmission with 18Gbps bandwidth

AOD supports 4K UHD@60 4:4:4 8bit up to 100m transmission with 18Gbps bandwidth when using HDMI-HDMI and DP-HDMI modules. Bandwidth for DVI-D is 4.95Gbps. An HDMI module with EQ and USB port is available to provide power in case of insufficient bus power and when daisy chaining cables. It also supports HDR and CEC.

Support up to 100 meters transmission with 4K UHD@60 4:4:4 8bit

Meets plenum cable standards UL444/CMP

The AOD cable wire is coated with a fire-retardant plastic jacket and is compliant with UL444 CMP standards. It ensures the prevention of fire and the spreading of noxious smoke.

Light and compact

AOD POF cable is about 30% lighter than normal copper cable. 30 meters of AOD is only around 300g weight with 5mm diameter, equivalent to AWG12.

Specification

Model No. AOD-xxM (“xx” will be replaced with cable length in meters)
Length 10 / 15 / 20 / 30 / 40 / 50 / 100
Connector Source HDMI A/D, DVI-D Single Link, DisplayPort 1.2
Sink HDMI A/D, DVI-D Single Link, HDMI with EQ
Max Width of Connector 39.7mm (using DVI-D sub module)
Minimum Width of Connector 12.6mm
Cable Type Active:POF 4 lines 、Copper 6 lines
Maximum Bandwidth 18Gbps (DVI-D 4.95Gbps)s
HDCP 2.2
HDR YES
CEC YES
HEAC NO
Power 5V through USB with HDMI with EQ sub module
Power Consumption 1.7W MAX
Color Cable Wire: Black / Connector: Black
Cable Wire Diameter 5mm / AWG12
Allowable Bending Radius 5mm
Allowable Cable Wire Tension 20kgF / 200N
Allowable Connector Tension 20kgF / 200N
Max resolution HDMI-HDMI, DP-HDMI: 4K UHD@60 4:4:4
8bit DVI-DVI、HDMI-DVI、DP-DVI:
1920x1200@60, 1600x1200@60
DVI-HDMI: FHD 1080p
Operating / Storage Temperature -20℃ to 70℃ / -20℃ to 85℃
Operating / Storage Humidity 5 to 85% / 5 to 85% (no condensation)
Accessories Sub connectors for Source: HDMI A *3) / DVI-D Single Link *3) / DisplayPort 1.2 Sub connectors for Sink: HDMI A *3) / DVI-D Single Link *3) / HDMI A (EQ) Others: Metal Pin

*1) Use HDMI with EQ and USB port to provide power if bus power is insufficient
*2) designed for conduit with a minimum diameter of 20mm
*3) Cables over 40m sub connector will include buffer
※ Compatibility with ALL devices is not guaranteed
※ Due to product improvements, specifications are subject to change without notice.
