Dante AV Ultra Encoder / Decoder

Perfect AV Synchronization with Extremely Low Latency

Overview

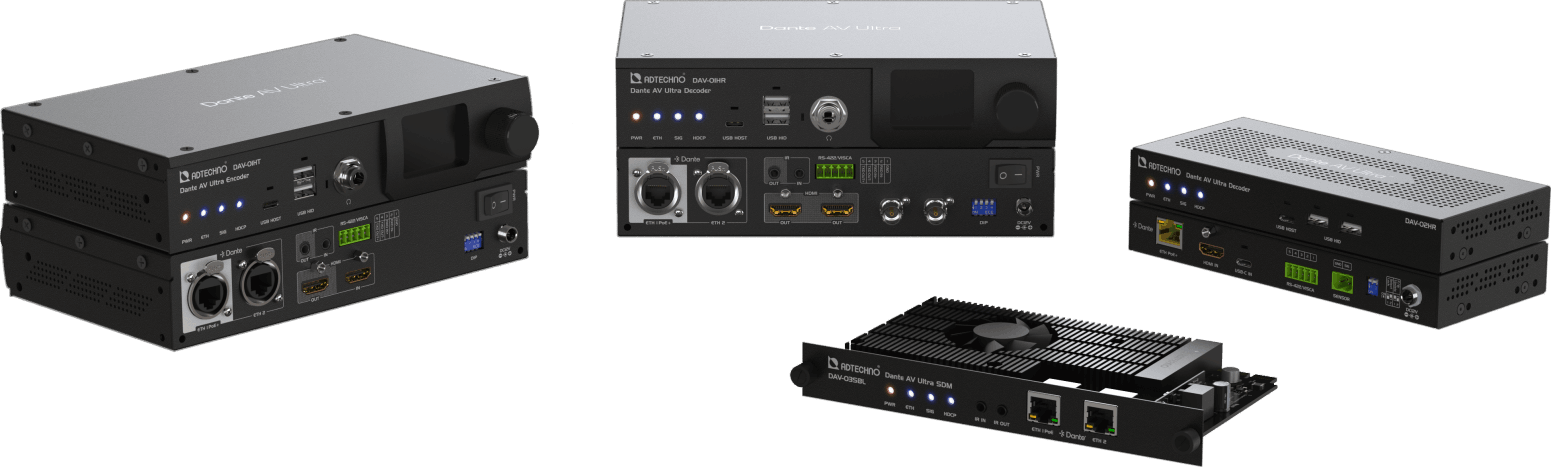

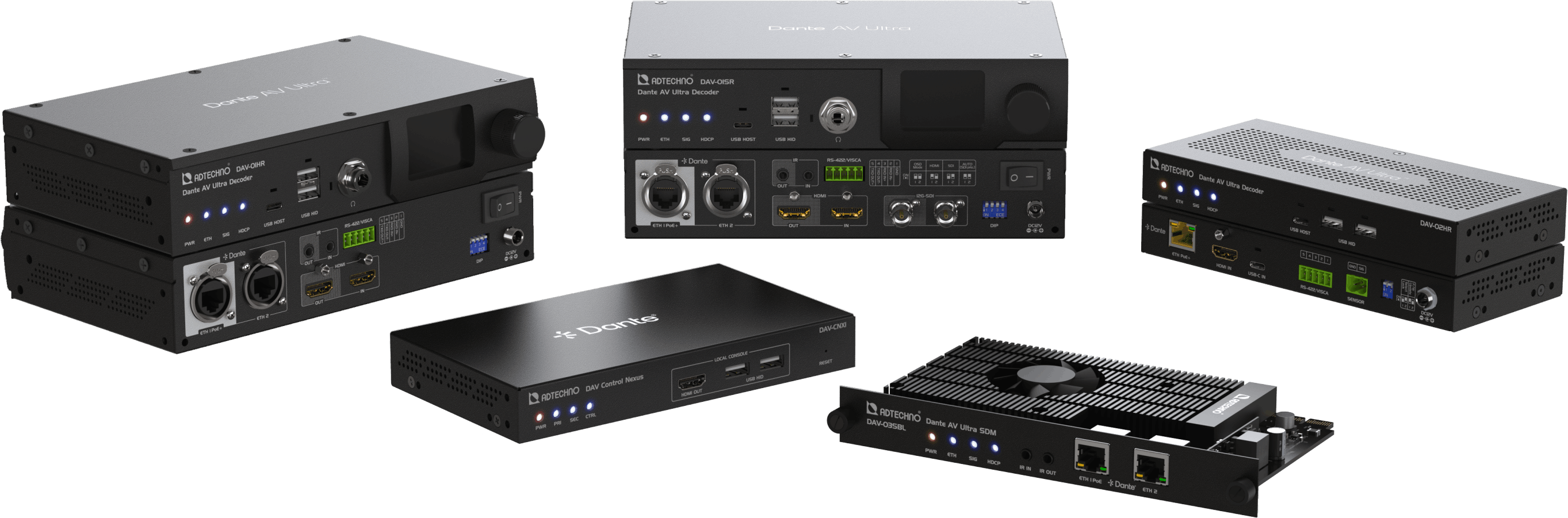

ADTECHNO Dante AV Ultra Encoder and Decoder are the award-winning AV over IP product, powered by the Dante AV Ultra solution, allowing for lossless 4K Ultra HD video and extremely low-latency IP streaming over 1GbE network. It utilises ProAV-optimized Colibri codec, preserving high-quality graphical content for 4K60 with perfect video and audio synchronization.
Both the encoder and decoder come equipped with a 2.0-inch IPS screen, offering a preview of incoming video images, up to 8 channels of audio level meters, and Dante setting features.

Watch video
 Key Features
  • Transport up to 4K HDR UHD video sources with imperceptible subframe latency over 1GbE Network.
  • Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.
  • ProAV-optimized Colibri codec preserves visually lossless quality for video/moving pictures.
  • Utilizing a single network clock enables perfect audio and video synchronization.
  • The DAV-01ST features 12G-SDI and HDMI input ports (HDMI exclusive to DAV-01HT).
  • The DAV-01SR features dual 12G-SDI and HDMI output ports per channel (DAV-01HR exclusively offering dual HDMI output).
  • 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.
  • Incoming audio check using a headphone output.
  • Auto-downscaling and HDCP revision conversion on HDMI output ports.
  • HDCP 1.x/2.x compliant with advanced EDID management.
  • PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.
  • EIA Rack mountable - 1U half-rack width.
  • Compatible with Dante Controller, Dante Studio and Dante Domain Manager (DDM).
DAV-01HT
Dante AV Ultra Encoder DAV-01HT
Encode HDMI to Dante AV Ultra Colibri

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• HDMI 2.0a in and loop-out
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

$1,699 US MSRP - Available for pre-order
* Each unit in online orders incurs a $70 shipping fee.

ADD TO CART
DAV-01HR
Dante AV Ultra Decoder DAV-01HR
Decode Dante AV Ultra Colibri to HDMI

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• Simultaneous 2 x HDMI out
• Auto-Downscaling and HDCP conversion
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

$1,699 US MSRP - Available for pre-order
* Each unit in online orders incurs a $70 shipping fee.

ADD TO CART
DAV-01ST
Dante AV Ultra Encoder DAV-01ST
Encode 12G-SDI/HDMI to Dante AV Ultra Colibri

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• 12G-SDI in and loop-out
• HDMI 2.0a in and loop-out
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

$1,999 US MSRP - Available for pre-order
* Each unit in online orders incurs a $70 shipping fee.

ADD TO CART
DAV-01SR
Dante AV Ultra Decoder DAV-01SR
Decode Dante AV Ultra Colibri to 12G-SDI/HDMI

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• Simultaneous 2 x 12G-SDI and 2 x HDMI out
• Auto-downscaling and HDCP conversion
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

$1,999 US MSRP - Available for pre-order
* Each unit in online orders incurs a $70 shipping fee.

ADD TO CART

What is Dante AV

Dante AV is a simplified, scalable and interoperable platform for managing and distributing networked audio & video signals everywhere.

Learn more

Adaption of ProAV-optimized Colibri codec

In the main use case of ProAV, preserving high quality of complex graphical content poses a significant challenge. The new Colibri codec has been specially designed to bridge this gap, providing seamless distribution and delivery of high-quality complex graphical content for 4K60 over 1GbE. The ADTECHNO Dante AV Ultra incorporates this newly optimized video codec to flawlessly encode any graphical content while preserving visually lossless quality for graphical and video content.


* Interoperability requires consistency in the video codec used on both the encoder and decoder.


Perfect Synchronization of Audio and Video

Dante AV Ultra employs a single clock to synchronize seamlessly with one another over the network using the IEEE 1588 Precision Time Protocol (PTP), delivering sub-microsecond synchronization.

Imperceptible subframe latency

Dante AV Ultra streams and transport video and audio content with highest performance and lowest latency - 4K60 with 8ms or less latency

DAV-01SR

Quad Output with 12G-SDI and HDMI

Dante AV Ultra Decoder, DAV-01SR supports simultaneous quad output, providing 2 x 12G-SDI video and 2 x HDMI video outputs for connecting to multiple screens.

User-friendly 2.0-inch IPS screen

The ADTECHON Dante AV Ultra comes equipped with a user-friendly 2.0-inch IPS screen that provides a preview of incoming video images and displays 8-channel audio level meters. Additionally, it boasts a Dante Setting menu, allowing you to easily modify settings such as sampling rate, latency and more using a rotary switch knob.

Auto-downscaling and HDCP revision conversion

The HDMI ports on The ADTECHNO Dante AV Ultra decoder reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.

Connections

Connections

*DAV-01HT and DAV-01HR are not equipped with SDI ports.

The largest AV over IP technology ecosystem

Compatible with over 3,800 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without encountering management difficulties and performance issue.

Dante
Certified-User

50,000+
certified users

Products

3,800+
products

Manufacturer

550+
manufacturers

Dante AV family comparisons

Dante AV UltraDante AV-ADante AV-H
Video CodecColibriASPEEDH.264/265
Resolution SupportUp to 4Kp60 4:4:4Up to 4Kp60 4:4:4Up to 4Kp60 4:2:0
Bandwidth~ 700 Mbps~ 700 Mbps~ 30 Mbps
LatencySub Frame Latency ~ 8 msSingle Frame Latency ~ 16 msMultiple Frames of Latency ~ 100 ms
Common AV ClockYesNoNo
HDCP SupportYesYesNo
Dante Audio8-ch2-ch2-ch
Dante-Controller

Dante Controller

Seamless integration into an existing Dante audio network. The ADTECHNO Dante AV Ultra is easily managed with flexible, independent routing for audio, video, USB, IR and RS-422 (VISCA) through the use of Dante Controller.

Learn more

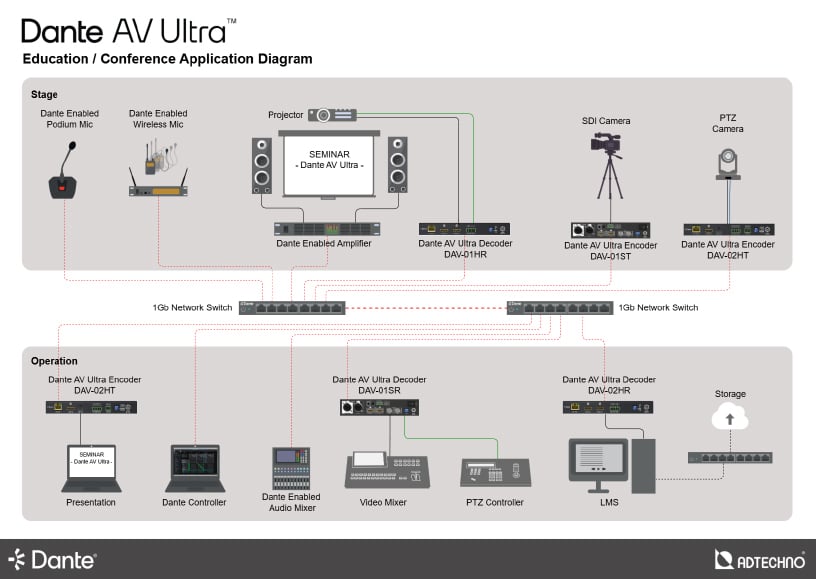

Application Diagram

Application Diagram

We have a collection of system diagrams depicting various common scenarios for ProAV applications. These include Dante AV system diagrams tailored for education/conference, broadcast, and concert applications.

Download
NetworkSwitch NetgearAV

Network Switch Guide

The following features are required for the Dante AV Ultra encoder and decoder to work seamlessly within a single network switch system:

• 1GbE Managed
• Multicast capabilities
• IGMP Snooping and Querie
• Immediate and Fast Leave
• QoS (Quality of Service)

For more details, please consult Audinate's website.

Learn more



NETGEAR AV Line, M4250 Switches are also available for a seamless integration solution for deploying Dante AV.
