- ■ 10.1 inch wide LED backlight LCD Monitor
- ■ HDMI/ DVI-D/ VGA/ Video x 2 inputs support
- ■ Stepless adjustable stand with a low gravity center design
- ■ VESA (FPMPMI 75x75mm) hole support
Model No : LCD1012
Download Catalogue (PDF)⇒■ Introduction
LCD1012 is a 10.1 inch LED backlighted LCD monitor with HDMI, DVI-D, VGA and two video inputs using a customized SKS cable enabling easy cable management. The input resolution support up to 1080p ・digital, and 1920x1200 pixels ・analog of LCD1012 adapts to a wide variety of applications including security, education, medical, digital signage and FA.
■ Features
Wide view angle support - 140/110 degree (H/V)
Multi-input signal support LCD1012 supports both digital and analog input signals with variable input interfaces, HDMI, DVI-D, VGA and Video. LCD1012 also supports down scan display mode which enables to display up to 1080P (digital) and 1600x1200 (analog) resolution contents, fit to the screen. |
 |
Customized SKS cable connection Customized SKS cable contains 14 pins SKS terminal to 9 pins VGA, 2 x Video, Audio and DC input terminals which enable easy cable management. |
 |
Downscan Display Mode
Downscan display mode enables a single source resolution down scanning the resolution at sink, LCD1012 perfectly displaying the content on the screen. This unique function is useful when connecting lots of LCD display as a mirror mode from a source using KVM or splitters.

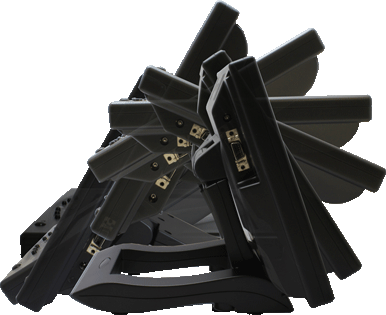

Stepless adjustable stand with a low gravity center design LCD1012 has a stepless adjustable stand which enables to bend and stretch to an ideal angle of your monitor install location. Back of the stand also include wall-mount hooks. |
 |

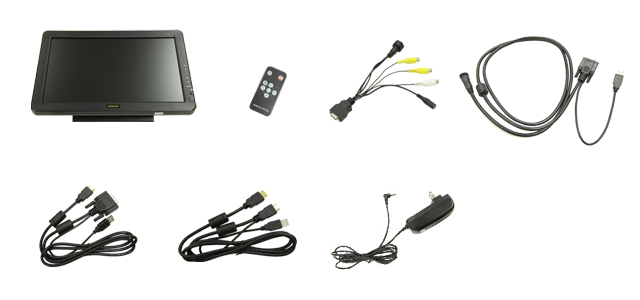

■ Accessories
■ Product Specifications
| Model | LCD1012 |
|---|---|
| Panel Size | 10.1” |
| Resolution | 1024*600 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 500:1 |
| View Angle | 140 (H) / 110 (V) degree |
| Input | HDMI, DVI-D, VGA, Video (RCA) x 2, Audio |
| Speaker | 1W x 1 (mono) |
| VESA (FPMPMI) | 75 x 75 mm |
| Support Signal | NTSC/ PAL/ SECAM |
| DPMS | Yes |
| Power | DC12V 1.2A |
| Power Consumption | 10W or less (operation) 1W or less (power save mode) |
| Operating Temperature | 0 to 50 degree |
| Storage Temperature | -20 to 60 degree |
| Size | 254.4mm x 163mm x 34mm |
| Weight | 1200g |
| Accessories | Remote Controller, Customized SKS cable, HDMI cable, HDMI to DVI cable, Customized VGA cable (miniDIN 9pin to VGA), AC Adaptor, Manual |
| Certification | FCC/ CE/ RoHS |
*Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images . shown here Not responsible for typographical errors.
