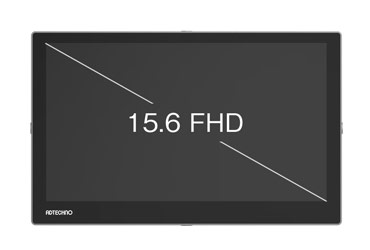

SDI Monitor15.6" wide - LCD1560S

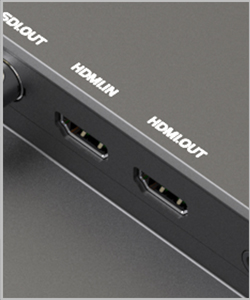

The LCD1560S features a 15.6-inch, 1920x1200 (16:9) IPS panel with HDMI/ VGA/ Video (RCA) & Audio L/R (RCA) inputs and an additional HDMI pass through output utilizable for daisy chain monitors for conference rooms and Digital Signage application, etc. where mirroring displays are required.
The LCD1560S also provides high durability and display clearness achieved by using OCA (Optical clear adhesive) with 6H hard glass panel.

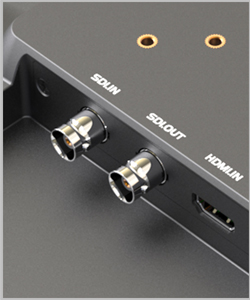

The LCD1560S supports 3G / HD /SD-SDI (MPTE 424M/SMPTE 292M/SMPTE 259M standards) input as well as an SDI output with pass through functions to daisy chain monitors.

The aspect ratio can be manually configured from the following presets: [Full screen (16;10)], [4:3], [16:9], [1.85:1] and [2.35:1]. Additionally, the LCD1560 is HDCP 1.4 compliant, capable of displaying HDCP protected source such as Blu-ray, etc.

The LCD1560S also features pixel-to-pixel mode, underscan, image flip, and also includes a function key, activated by holding down the “Exit” button, which can be manually configured to trigger various function for quick access. The key-lock function is also equipped that disables all buttons operations and prevents erroneous operations suitable for a public place installation.

The LCD1560S has a thickness of 37.7mm and is attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals 8 threaded holes compatible with both FPMPMI 75x75 and 100x100mm VESA mounts. 1/4-inch screw mounts on top, bottom and both sides allow installation on a tripod or mounting on a monitor arm.

The threaded holes for mounting V-Mount battery plate are also placed on the back of the monitor for battery operation.

We also provide an optional U-type stand, sunshade, rackmount brackets and a non-glare protective film to reduce reflection of fluorescent lamps and sun light.

The versatility of the LCD1560S makes it ideal for a wide range of applications: sub-monitors for PC use or filming, inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conferences, digital signage or as an OEM part integrated into another product.

HDCP compliant

LCD1560S is compliant with HDCP and is capable of displaying HDCP protected media and can be connected to Blu-ray players and game consoles.^*1)

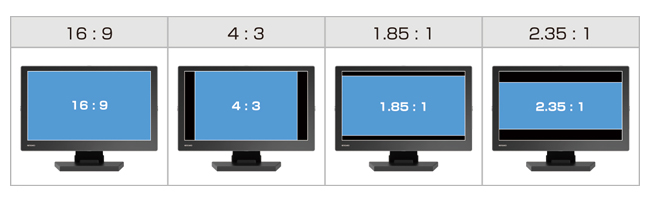

Configurable aspect ratio

Aspect ratio can be configured to [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu.

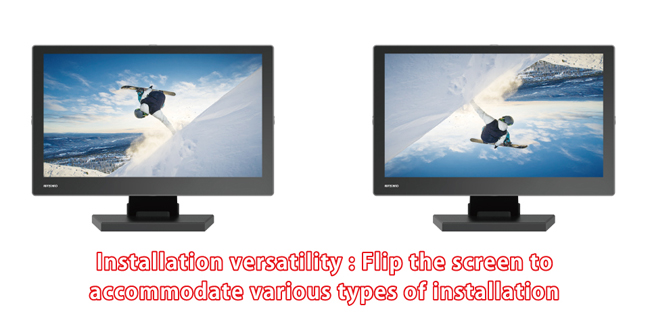

Pixel-to-pixel mode and Image flip function

When using digital input Pixel-to-pixel mode allows users to display media contents at its original resolution.
Image on screen can be flipped to adapt to various installations and applications.

1/4-inch Thread Holes

1/4-inch screw mounts on top, bottom and both sides allow installation of tripods and monitor arms.

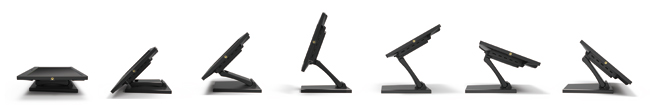

Stepless adjustable stand with low CG (center of gravity)

LCD1560S features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

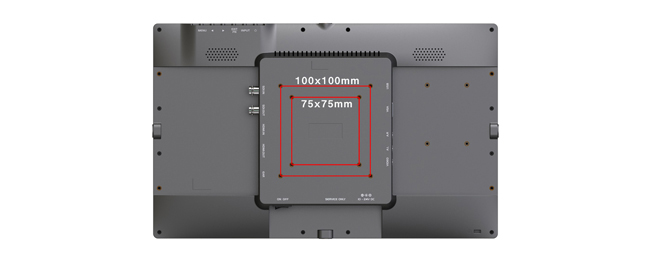

VESA mount FPMPMI 75x75mm and 100x100mm compatible

LCD1560S is equipped with 8 threaded holes compatible with VESA 75x75mm and 100x100mm mounts.
Removal of the stand is required to use the VESA mount holes.

Support for external battery

Mounting holes for V-Mount battery plate to allow usage of aftermarket batteries

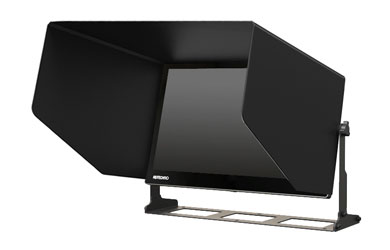

U-Type stand and Sunshade (optional)

Optional U-Type stand [Model No. UH-15STD] and Sunshade [Model No. UH-15S] are available.

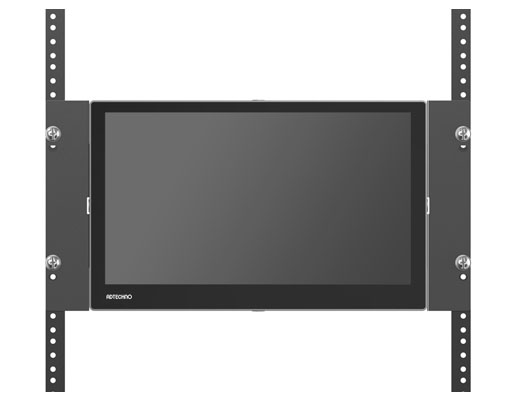

Brackets for 19-inch EIA Rack (optional)

An optional EIA bracket, [Model No. UH15-BRK] is available for mounting the LCD1560S on a 19-inch EIA Rack.
The LCD1560S fits to the rack with the height of below 6U.

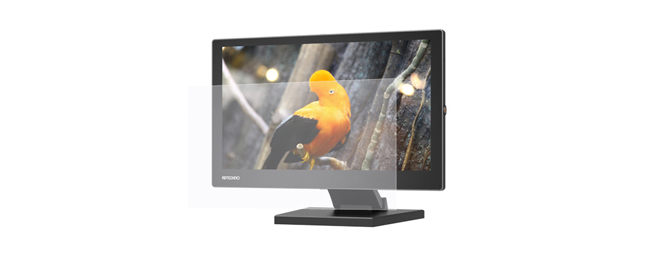

Exclusive non-glare protection film (optional)

Optional non-glare protection film to prevent reflection from fluorescent lamps and sun light. It will also protect against scratches, fingerprint and dust.
