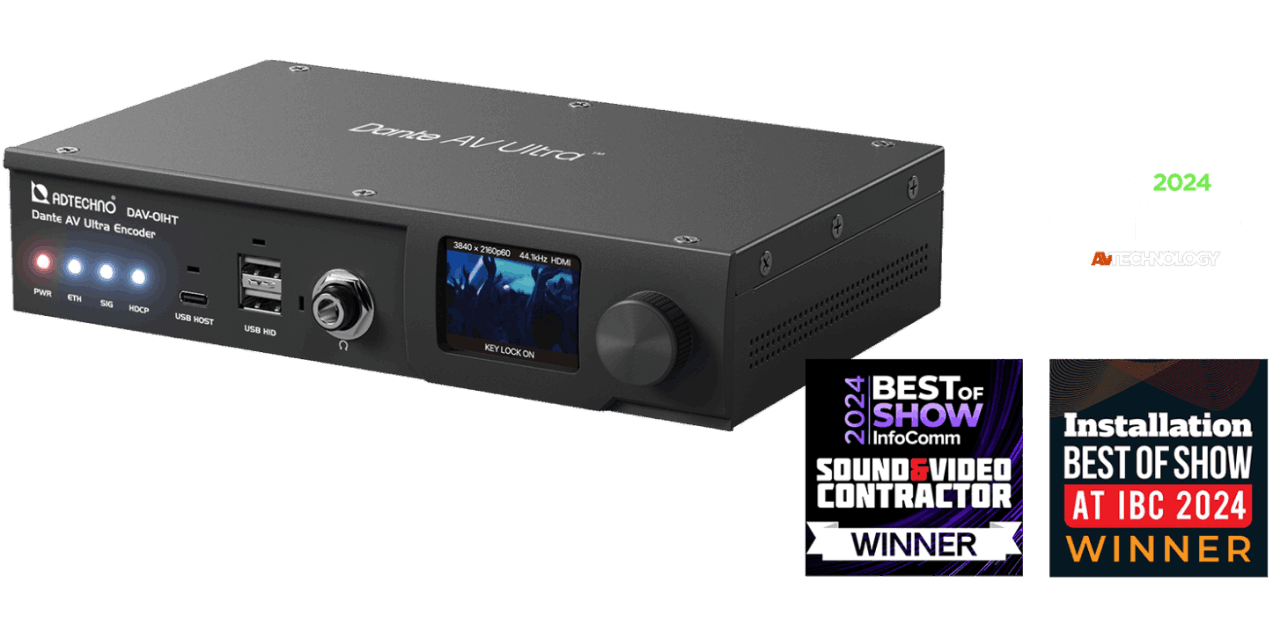

Dante AV Ultra

HDMI to/from Dante AV Ultra Colibri



DAV-01H

Perfect AV Synchronization with Extremely Low Latency

Overview

Dante AV Ultra encoder and decoder, DAV-01HT and DAV-01HR are the cutting-edge devices embody a state-of-art AV over IP solution, marking a significant advancement in AV over IP technology.
The DAV-01HT encoder, equipped with HDMI input and loop-out ports, and the DAV-01HR decoder, featuring dual HDMI output ports, represent the forefront of audio and video distribution. These devices support the transmission of 8-channel audio, up to 4Kp60 4:4:4 video, USB, IR, and RS-422 serial commands over a 1GbE network, ensuring a seamless and efficient workflow for AV professionals. By integrating with the Dante Controller software, these tools provide individual signal management and routing capabilities, enhancing the user experience.
Tailored for professional AV environments, the DAV-01HT and DAV-01HR are designed to meet the rigorous demands of various settings, offering low latency and high-quality transmission for optimal performance.
 Key Features
  • Transport up to 4K HDR UHD video sources with imperceptible subframe latency over 1GbE Network.
  • Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.
  • ProAV-optimized Colibri codec to correctly encode any graphical content while preserving a visually lossless quality for video.
  • Utilizing a single network clock enables perfect audio and video synchronization.
  • The DAV-01HR features dual HDMI output.
  • 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.
  • Incoming audio check using a headphone output.
  • Auto-downscaling and HDCP revision conversion on HDMI output ports.
  • HDCP 1.x/2.x compliant with advanced EDID management.
  • PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.
  • EIA Rack mountable - 1U half-rack width.
  • Compatible with Dante Controller, Dante Studio and Dante Domain Manager (DDM).

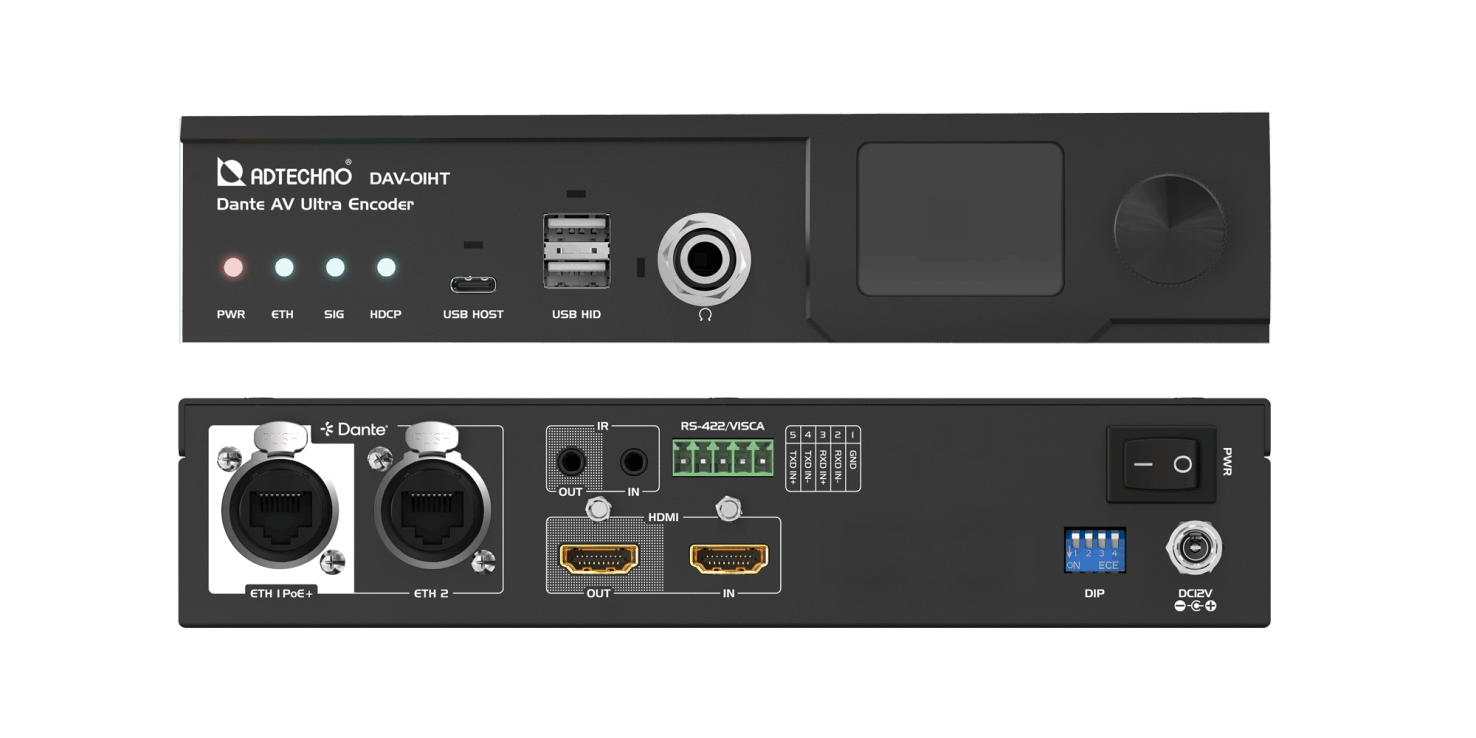

DAV-01HT
Dante AV Ultra Encoder DAV-01HT
Encode HDMI to Dante AV Ultra Colibri

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• HDMI 2.0a in and loop-out
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

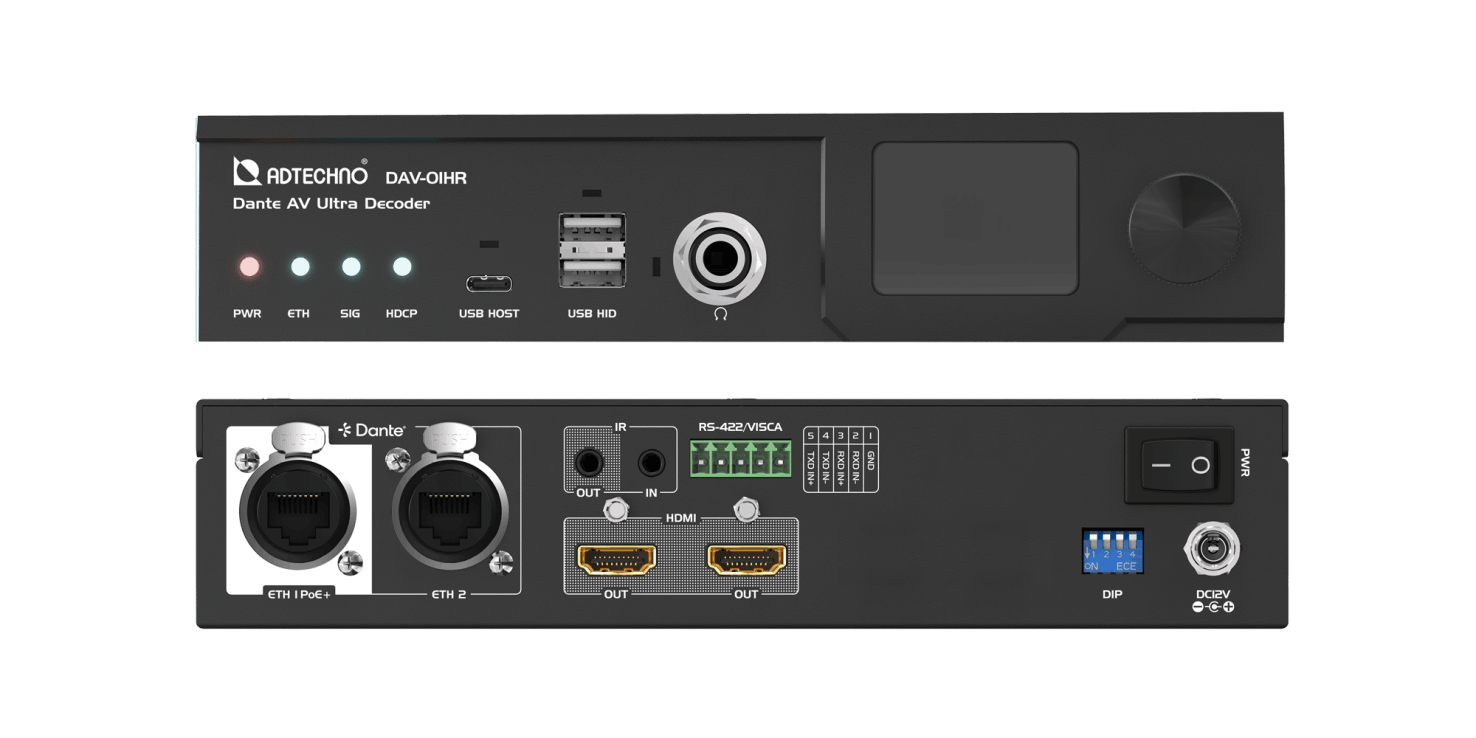

DAV-01HR
Dante AV Ultra Decoder DAV-01HR
Decode Dante AV Ultra Colibri to HDMI

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• Simultaneous 2 x HDMI out
• Auto-Downscaling and HDCP conversion
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

DAV-01RU1
Rack Shelf Mount Kit
DAV-01RU1 - Mount Kit for Single Unit Placement

• EIA 19-inch
• 1U



DAV-01RU2
Rack Shelf Mount Kit
DAV-01RU2 - Mount Kit for Dual Unit Placement

• EIA 19-inch
• 1U



DAV-01SR

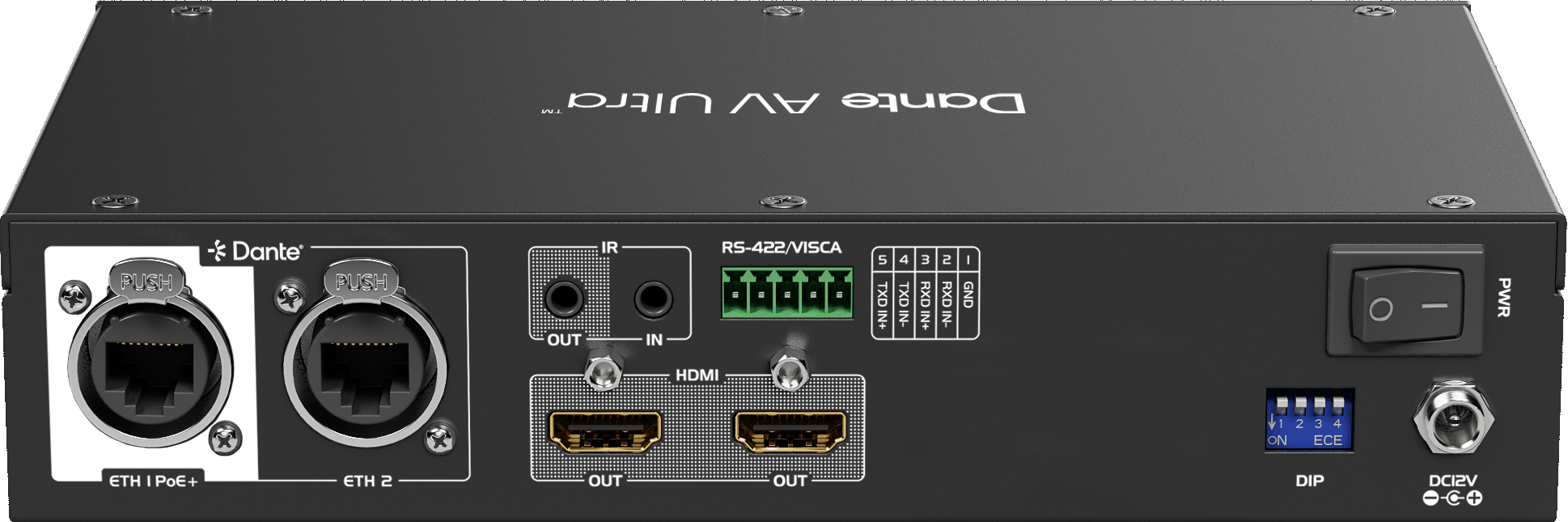

Dual HDMI Output

Dante AV Ultra Decoder, DAV-01HR supports simultaneous dual output, providing 2 x HDMI video outputs for connecting to multiple screens.

User-friendly 2.0-inch IPS screen

The ADTECHON Dante AV Ultra comes equipped with a user-friendly 2.0-inch IPS screen that provides a preview of incoming video images and displays 8-channel audio level meters. Additionally, it boasts a Dante Setting menu, allowing you to easily modify settings such as sampling rate, latency and more using a rotary switch knob.

Auto-downscaling and HDCP revision conversion

The HDMI ports on The ADTECHNO Dante AV Ultra decoder reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.

19-inch Rack Shelf Mount

The DAV-01RU1 and DAV-01RU2 rack shelves are tailor-made for securing the DAV-01 within a standard 19-inch EIA rack. These rack shelf mount kits are perfectly suited for a 1U space, ensuring a clean and efficient setup.


>

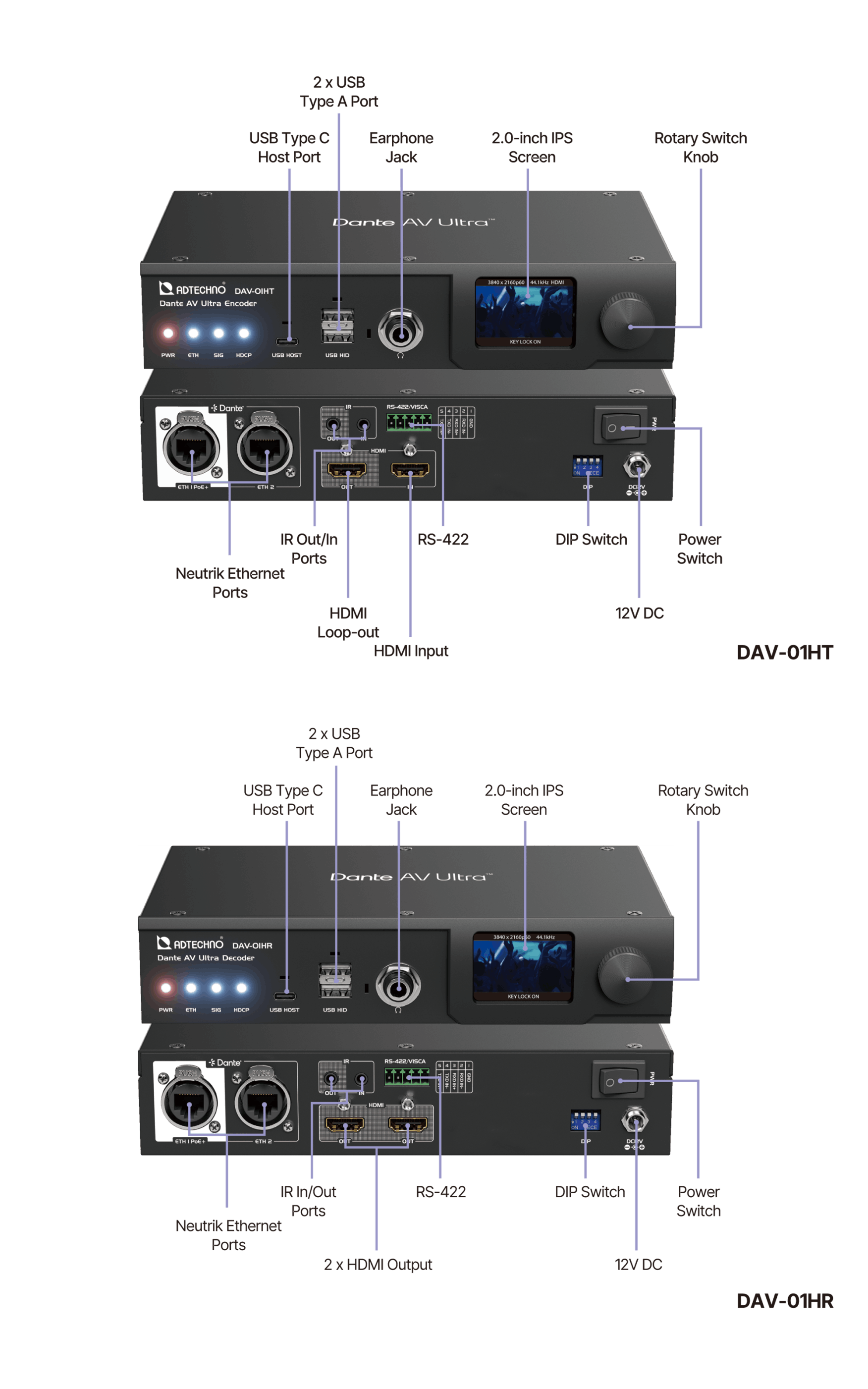

Connections

Connections

Specifications

DAV-01HT Dante AV Ultra Encoder - HDMI to Dante AV Ultra Colibri

Audio/Video Input: 1 x HDMI Type A *HDCP 1.4/2.2 , CEC pass through
Audio/Video Output: 1 x HDMI Type A loop-out *HDCP 1.x/2.x, CEC pass through
2 x Neutrik etherCON RJ-45 - 1GbE *Port 1 with PoE+
1 x 6.3mm standard stereo earphone jack
USB/KVM port: 1 x USB Type C Host, 2 x USB Type A HID
RS-422 serial port: 1 x 5-Pin Phoenix connector
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm stereo jack
Extend Distance: 5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 with HDMI
100 meters maximum with CAT 5e/6
LCD Panel: 2.0-inch IPS
Dimensions: 210 (W) x 127 (D) x 44 (H) mm *protrusions not included
Weight: 1,500g
Power: PoE 802.3 at or 12V DC
Power Consumption: 20.5W (max load incl. USB HID)
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -40 to 60 C (-40 to 140 F)
Operating Humidity: 10 - 90% noncondensing
Box Content: 1 x DAV-01HT, 1 x Quick User Guide
Warranty: 1 year
Regulatory Compliance: FCC/CE/UKCA/RoHS

DAV-01HR Dante AV Ultra Decoder - Dante AV Ultra Colibri to HDMI

Audo/Video Input Connectors: 2 x Neutrik etherCON RJ-45 - 1GbE *Port 1 with PoE+
Audo/Video Output Connectors: 2 x HDMI Type A *HDCP 1.4/2.2, CEC pass through
2 x Neutrik etherCON RJ-45 - 1GbE *Port 1 with PoE+
1 x 6.3mm standard stereo earphone jack
USB/KVM port: 1 x USB Type C Host, 2 x USB Type A HID
RS-422 serial port: 1 x 5-Pin Phoenix connector
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm stereo jack
Extend Distance: 70 Meters at 12G, 100 Meters at 6G, 200 meters for 3G and 270 meters at 1.5G *with Canare Cable
5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 with HDMI
100 meters maximum with CAT 5e/6
LCD Panel: 2.0-inch IPS
Dimensions: 210 (W) x 127 (D) x 44 (H) mm *protrusions not included
Weight: 1,500g
Power: PoE 802.3 at or 12V DC
Power Consumption: 24.0W (max load)
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -40 to 60 C (-40 to 140 F)
Operating Humidity: 10 - 90% noncondensing
Box Content: 1 x DAV-01HR, 1 x Quick User Guide
Warranty: 1 year
Regulatory Compliance: FCC/CE/UKCA/RoHS

Formats

HDMI Video Input Format
(DAV-01HT/DAV-01ST)

4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
2048 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1920 x 1200p 60
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 1024 60
1280 x 720p 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576i 50
480i 60
*YCbCr 4:4:4/ 4:2:2/ 4:2:0 *4:2:0 limited to 3840 x 2160@50/59.94/60
*RGB
*8/ 10/ 12-bit *3840x2160 limited to 8-bit

HDMI Video Output Format
(DAV-01HR/DAV-01SR)

4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
1920 x 1200p 60
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 720p 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576i 50
480i 60
