Overview

The DAV-02HT and DAV-02HR are state-of-the-art Dante AV Ultra Encoder and Decoder, offering 4K HDR UHD video with subframe latency over 1GbE networks.

These devices ensure visually lossless quality and synchronized audio and video with a single network clock for a lip-sync-free experience. The encoder features versatile HDMI and USB-C inputs with both manual and automatic source selection. The decoder provides dual HDMI outputs for multi-screen setups, with auto-downscaling and HDCP compatibility. Engineered for silent operation, reliability, and energy efficiency, they support PoE or DC power and integrate with Dante network.

Suitable for high-end conferences, education, and meetings, the DAV-02 series promises a seamless AV performance in professional environments.

Key Features

Transport up to 4K HDR UHD video sources with imperceptible subframe latency over 1GbE Network.

ProAV-optimized Colibri codec to correctly encode any graphical content while preserving a visually lossless quality for video.

Utilizing a single network clock enables perfect audio and video synchronization.

The DAV-02HT features USB-C and HDMI input ports with manual or automated source selection.

Source selection from select button or sensor Input connecting external-tailored press button.

Locking Feature for Select Button.

The DAV-02HR features dual HDMI output ports.

Advanced signal management for independent routing of audio, video, USB / KVM and RS-422.

A fanless design guarantees stable performance with minimal maintenance required.

Auto-downscaling and HDCP revision conversion on HDMI output ports.

HDCP 1.x/2.x compliant with advanced EDID management.

PoE+ (IEEE802.3at) or DC (12V) power to power the device.

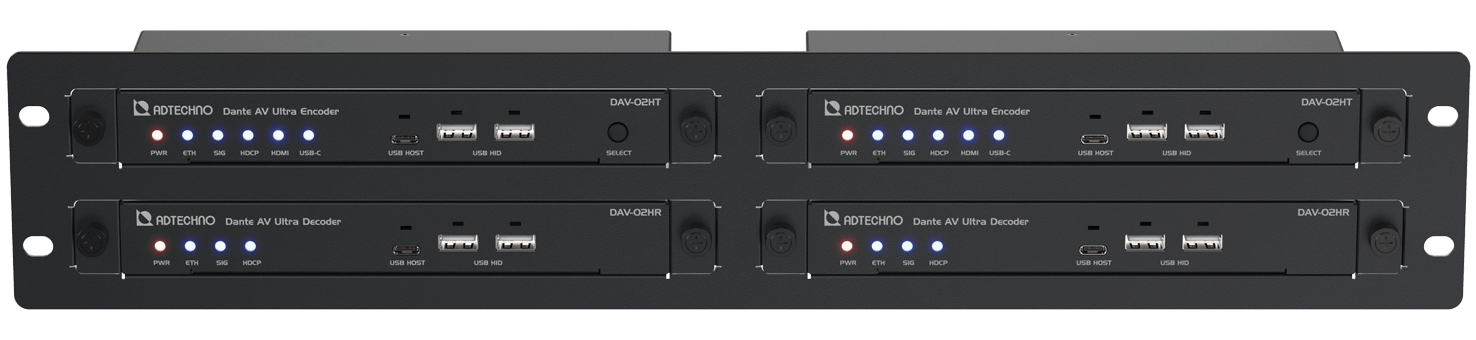

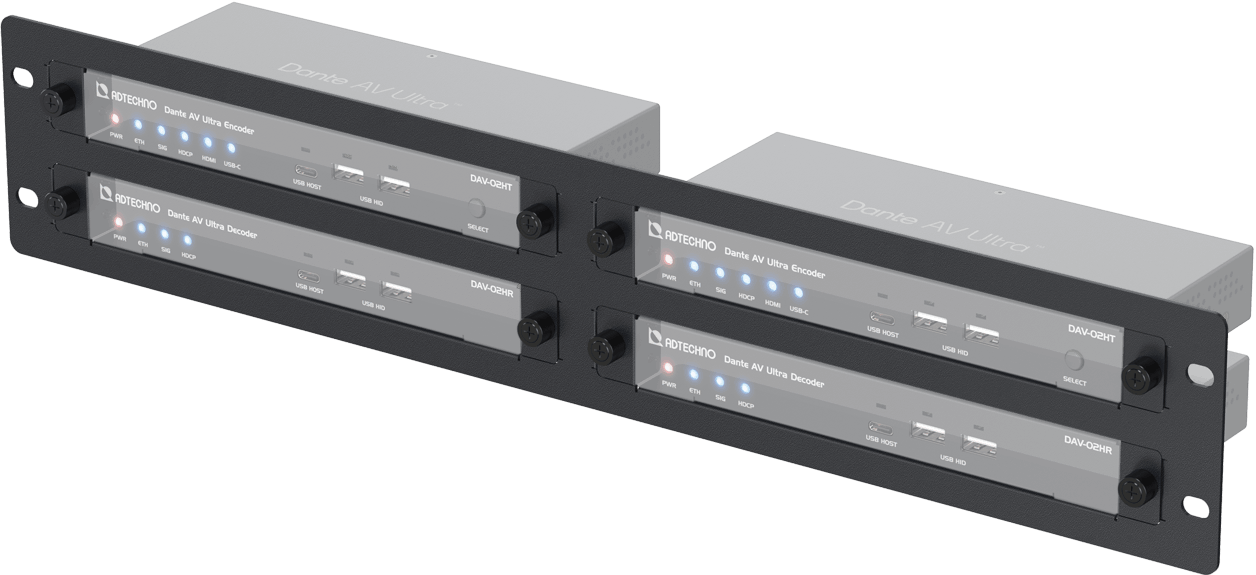

Universal 2U EIA Shelf Unit with 4 x Horizontal Blade Shelves.

Compatible with Dante Controller and Dante Domain Manager (DDM).

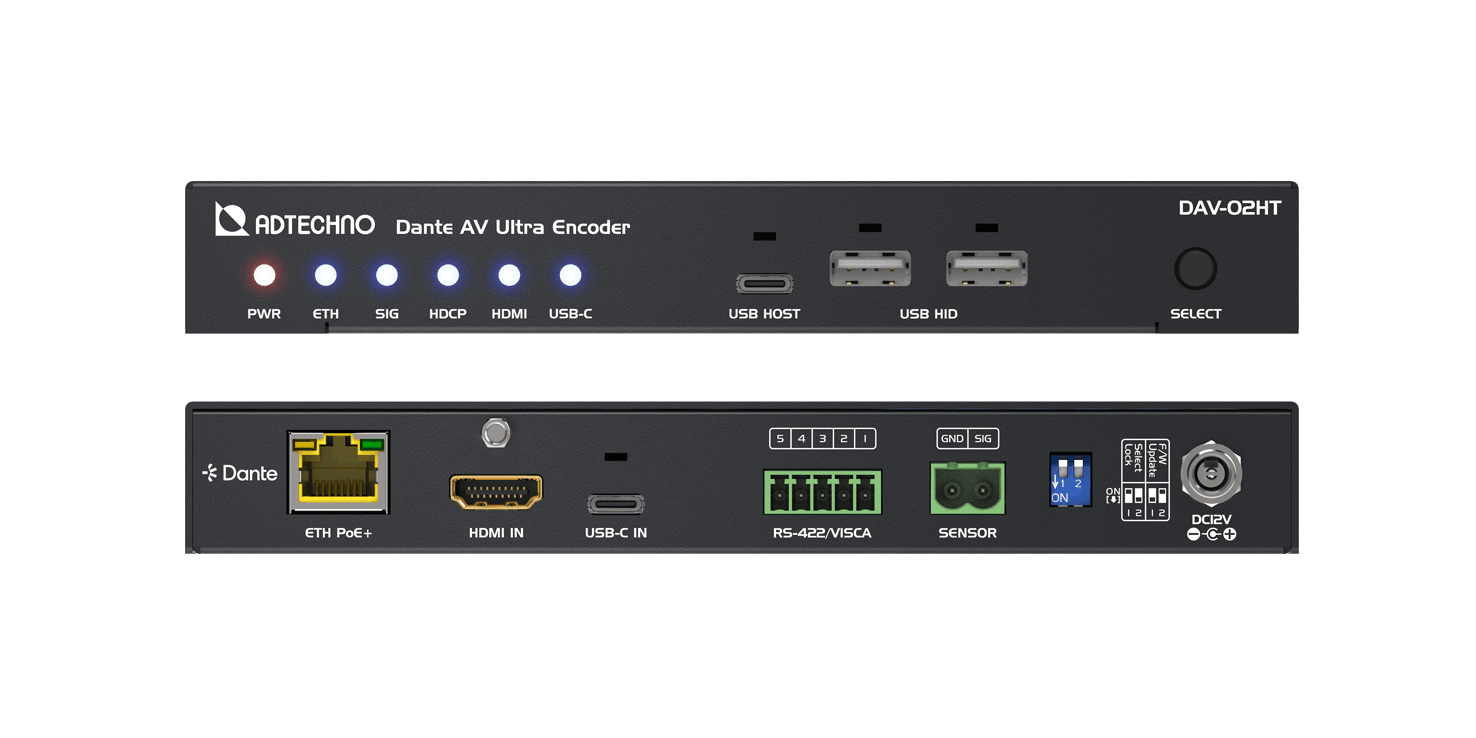

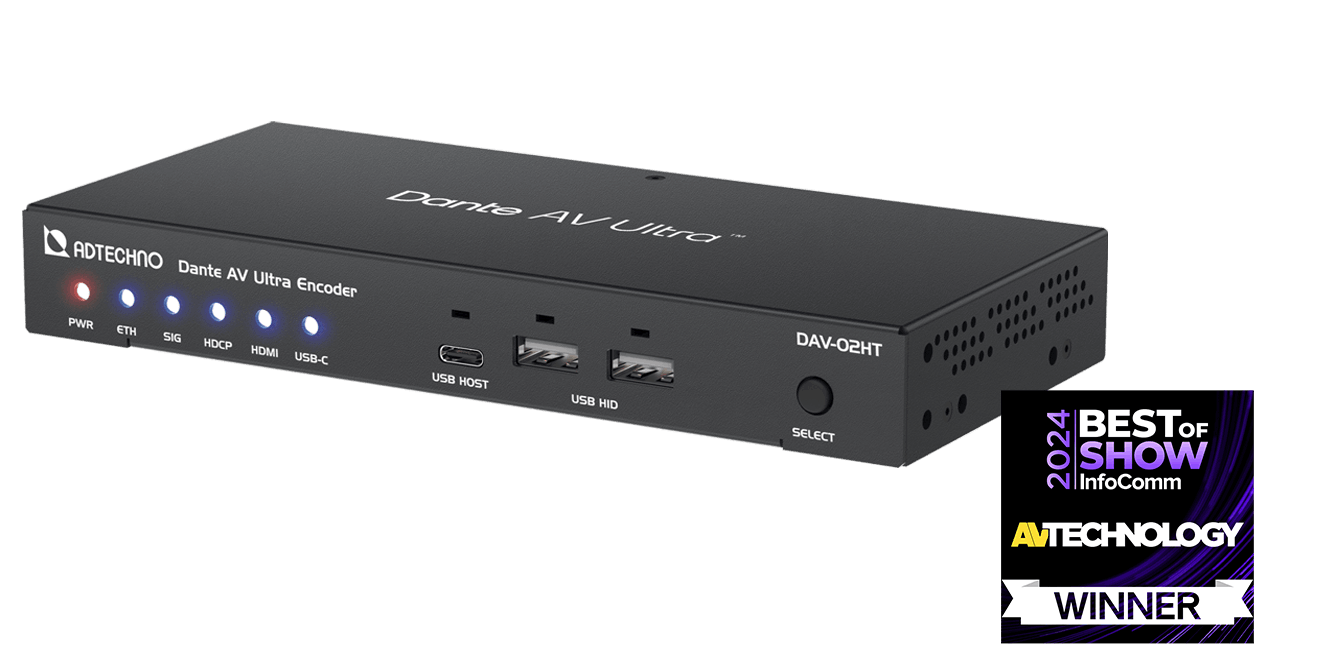

Dante AV Ultra Encoder DAV-02HT

Encode USB-C & HDMI to Dante AV Ultra Colibri

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• USB-C/HDMI input with manual or automated source selection
• Sensor input for external press button connection
• 1GbE PoE IP
• USB HID and RS-422 (VISCA)

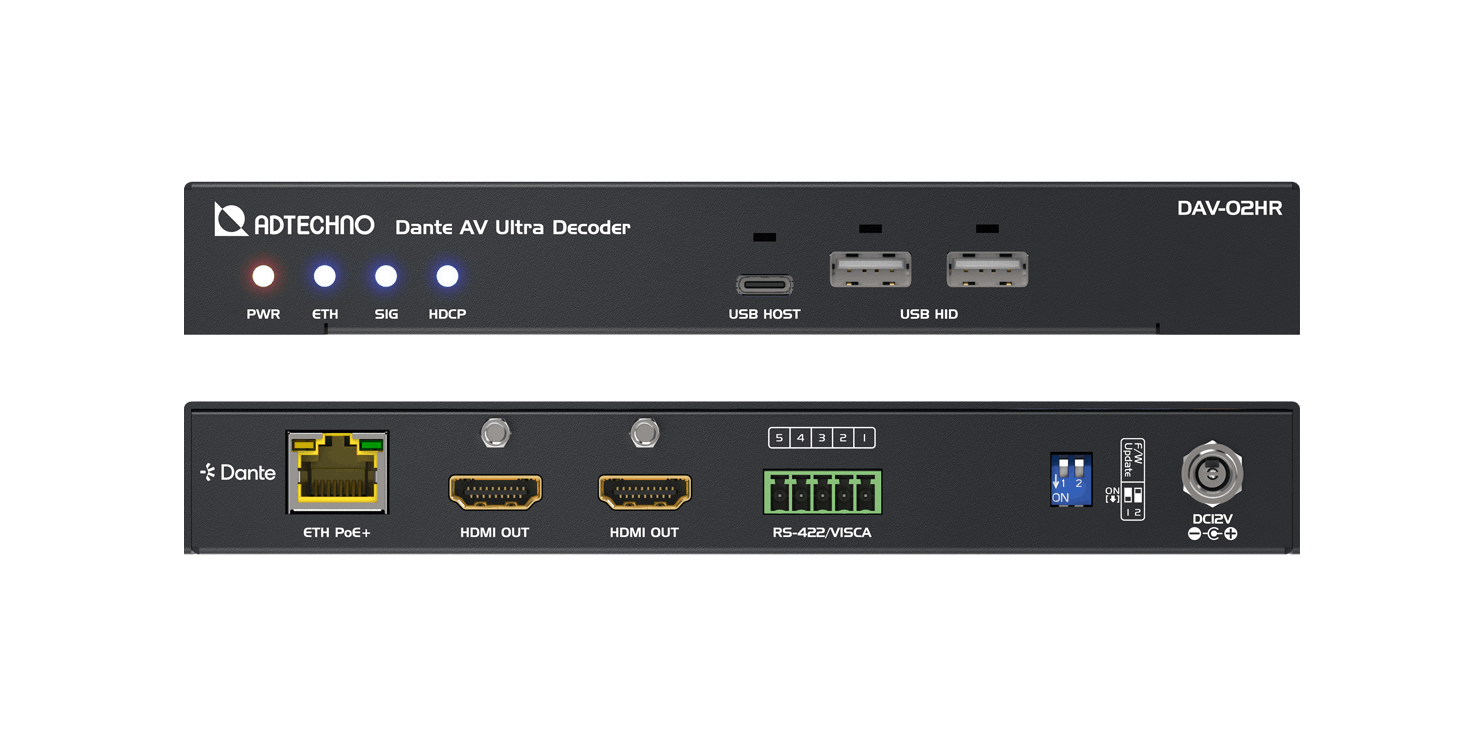

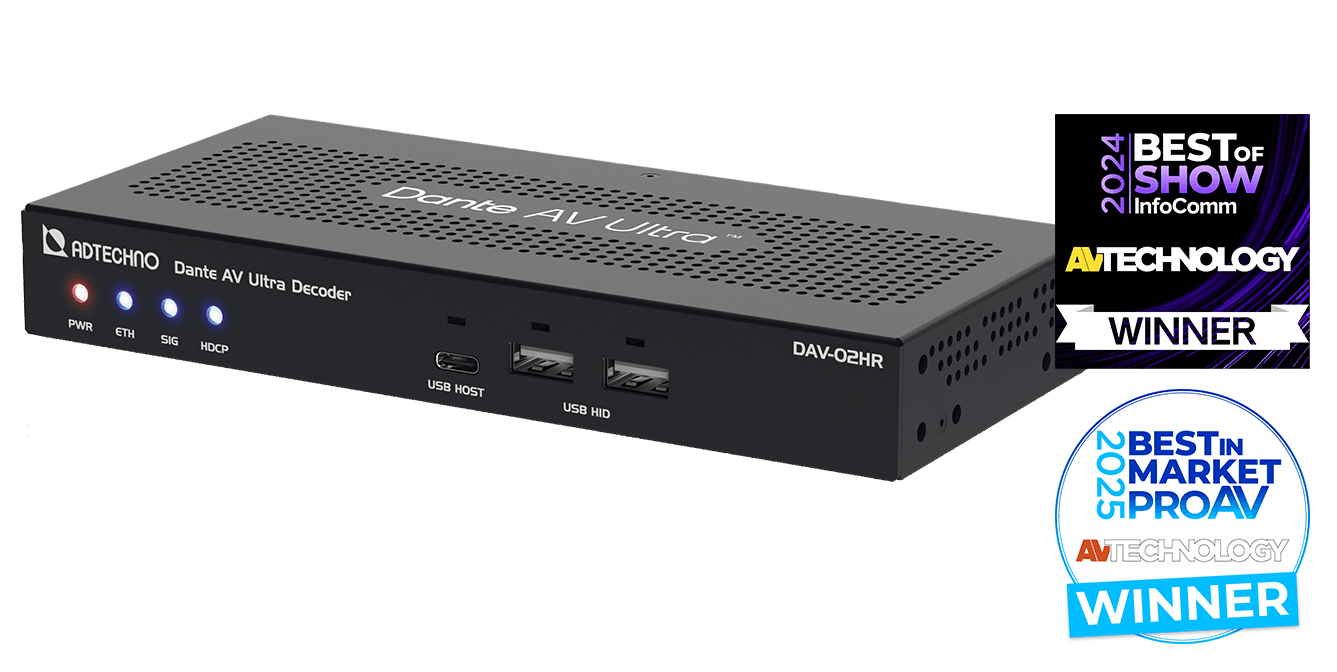

Dante AV Ultra Decoder DAV-02HR

Decode Dante AV Ultra Colibri to HDMI

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• Simultaneous 2 x HDMI out
• Auto-Downscaling and HDCP conversion
• 1GbE PoE IP
• USB HID and RS-422 (VISCA)

Manual or automated source selection

Dante AV Ultra encoder, DAV-02HT features inputs for both USB-C and HDMI, allowing for the automatic switching of sources upon detecting an incoming TMDS signal. Users can also manually select sources by pressing a front-panel button or by utilizing a sensor input to connect custom-tailored press button, allowing system integrators to externally wire a press button, suitable for installation on a table.

Auto-downscaling and HDCP revision conversion

The HDMI ports on The Dante AV Ultra decoder, DAV-02HR reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.

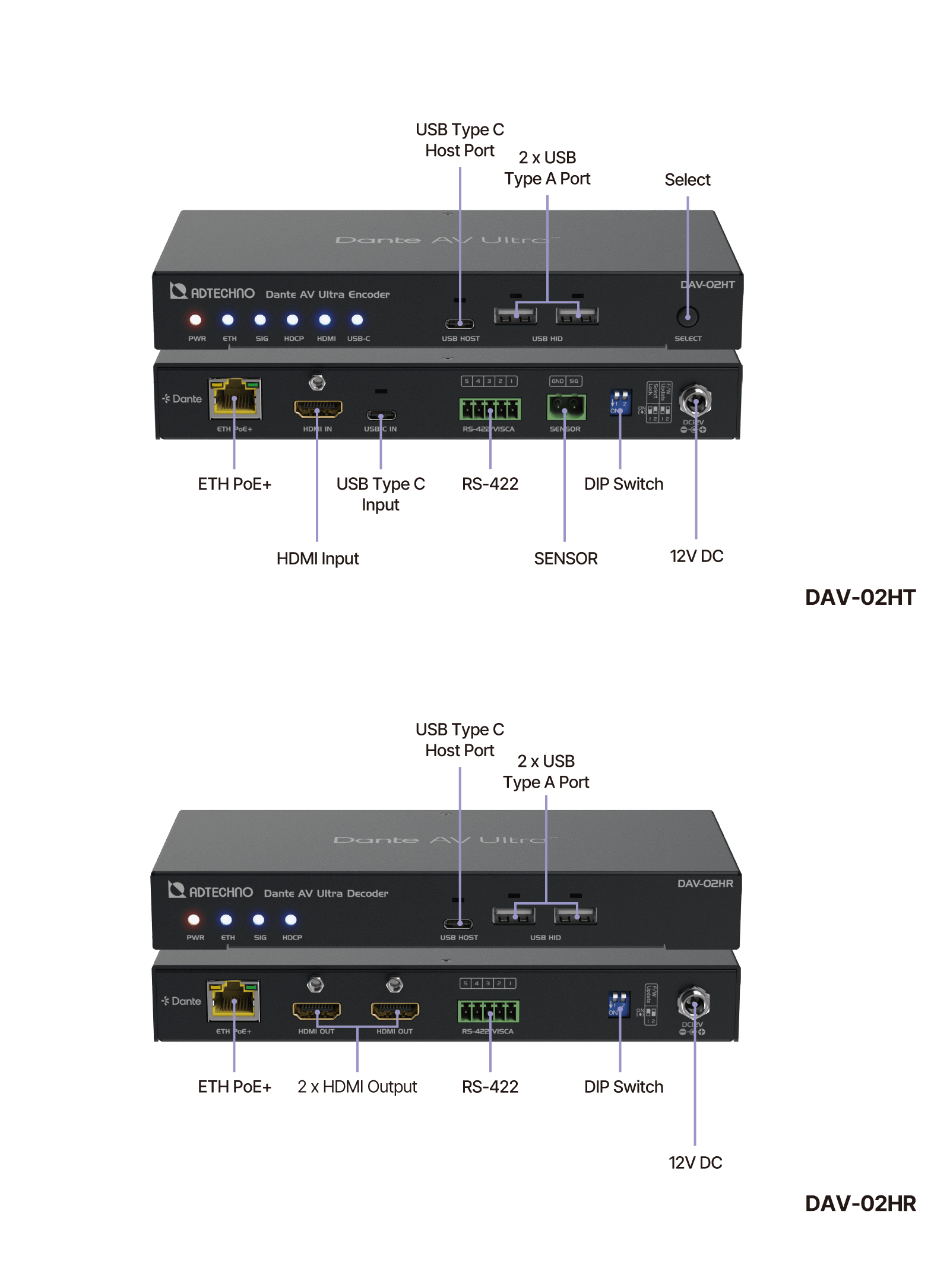

DAV-02HT Dante AV Ultra Encoder - USB-C/HDMI to Dante AV Ultra Colibri

Audio/Video Input: 1 x USB Type C - DP Alt Mode, 1 x HDMI Type A *HDCP 1.x/2.x, CEC pass through
Audio/Video Output: 1 x RJ-45 with PoE - 1Gb
USB/KVM port: 1 x USB Type C Host, 2 x USB Type A HID
RS-422 serial port: 1 x 5-Pin Phoenix connector
Sensor: 1 x 2-Pin Phoenix connector, GND and SIGNAL
1 x Source switchinig select button
Extend Distance: 5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 with HDMI
100 meters maximum with CAT 5e/6
Dimensions: 180 (W) x 80 (D) x 22 (H) mm *protrusions not included
Weight: 520g
Power: PoE 802.3 at or 12V DC
Power Consumption: 11.3W (max load incl. USB HID)
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -40 to 60 C (-40 to 140 F)
Operating Humidity: 10 - 90% noncondensing
Box Content: 1 x DAV-02HT, 2 x Ear Bracket, 1 x Quick User Guide
Warranty: 1 year
Regulatory Compliance: FCC/CE/UKCA/RoHS

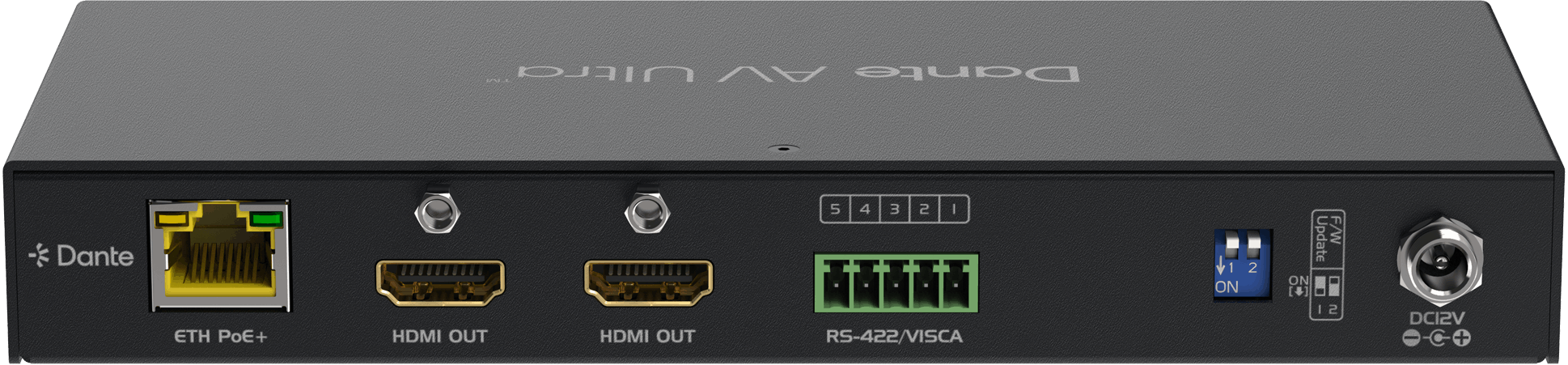

DAV-02HR Dante AV Ultra Decoder - Dante AV Ultra Colibri to HDMI

Audio/Video Input Connector: 1 x RJ-45 with PoE+ - 1GbE
Audio/Video Output Connectors: 2 x HDMI Type A *HDCP 1.x/2.x, CEC pass through
USB/KVM port: 1 x USB Type C Host, 2 x USB Type A HID
RS-422 serial port: 1 x 5-Pin Phoenix connector
Extend Distance: 5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 with HDMI
100 meters maximum with CAT 5e/6
Dimensions: 180 (W) x 80 (D) x 22 (H) mm *protrusions not included
Weight: 520g
Power: PoE 802.3 at or 12V DC
Power Consumption: 7.6W (max load incl. USB HID)
Operating Temperature: 0 to 40 C (32 to 104 F)
Storage Temperature: -40 to 60 C (-40 to 140 F)
Operating Humidity: 10 - 90% noncondensing
Box Content: 1 x DAV-02HR, 2 x Ear Bracket, 1 x Quick User Guide
Warranty: 1 year
Regulatory Compliance: FCC/CE/UKCA/RoHS

Formats

HDMI Video Input
HDMI Video Output

HDMI Video Input Format
(DAV-02HT)

4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
2048 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1920 x 1200p 60
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 1024 60
1280 x 720p 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576i 50
480i 60
*YCbCr 4:4:4/ 4:2:2/ 4:2:0 *4:2:0 limited to 3840 x 2160@50/59.94/60
*RGB
*8/ 10/ 12-bit *3840x2160 limited to 8-bit

HDMI Video Output Format
(DAV-02HR)

4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
1920 x 1200p 60
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 720p 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576i 50
480i 60
