DAV Control Nexus

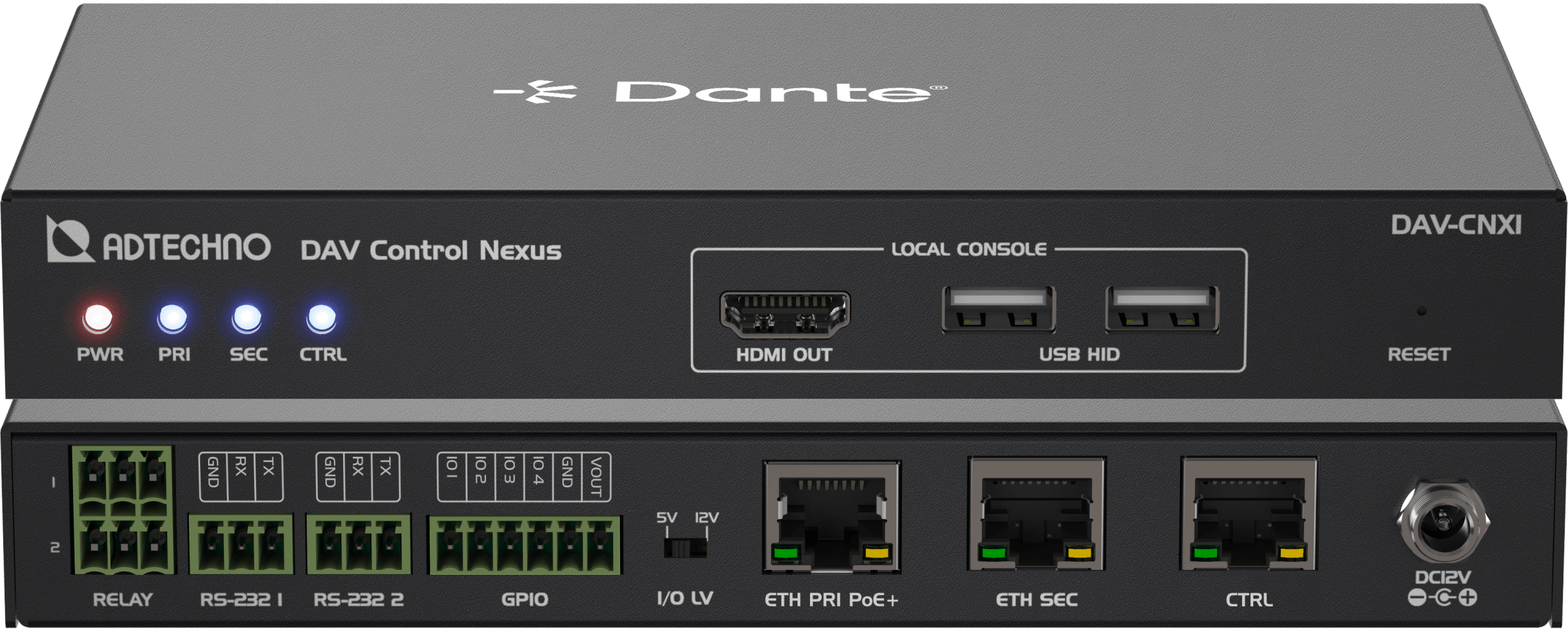

Dante Device Control Box - DAV-CNX1

DAV-02SBL

Browser based Routing.
Seamless API Integration

Overview

The DAV Control Nexus DAV-CNX1 is a next-generation Dante device control solution that enables browser-based routing and management of Dante-enabled systems, without the need for dedicated applications or PCs.
By providing a browser-based interface that follows the established operational concepts of Dante Controller and combining it with open APIs, the DAV-CNX1 allows both intuitive manual operation and seamless integration with third-party control systems and automation workflows.

With built-in HDMI output, USB-HID support, and Dante network redundancy, the DAV-CNX1 provides a reliable, flexible, and PC-free control platform for professional AV installations.
 Key Features
  • Browser-based Web GUI following the Dante Controller workflow
  • Fully PC-free standalone operation
  • One-touch switching of Dante routing configurations and system settings
  • Flexible integration with major third-party control systems
  • Built-in GPIO and relay terminals
  • Webhook Outbound support
  • High-reliability network design with dual Dante LAN ports
  • Secure role-based user management
  • Comprehensive network configuration management

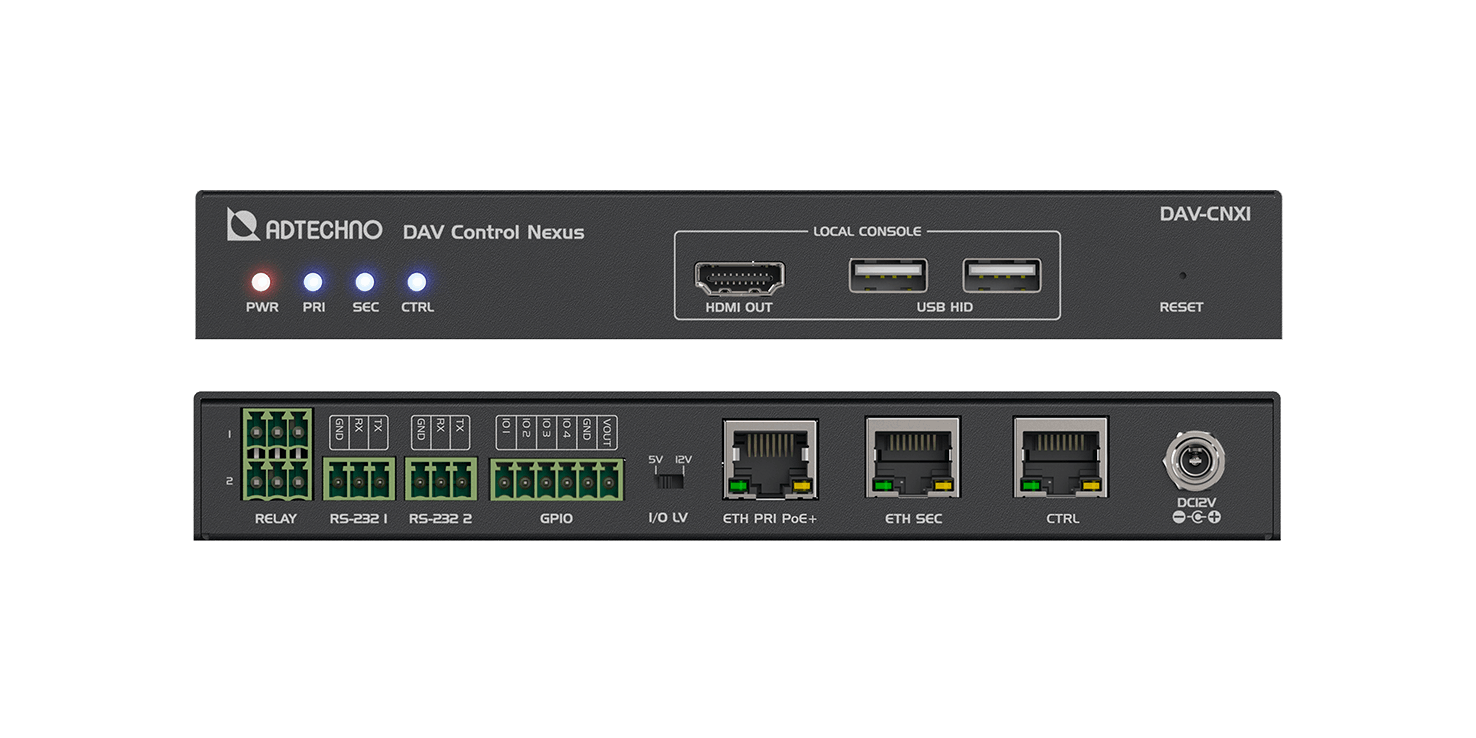

DAV-CNX1
DAV Control Nexus - DAV-CNX1
Dante Device Control Box

• Intuitive operation via Browser-based Web GUI
• HDMI output and USB HID for standalone operation
• One-touch switching with Presets
• External control integration via Open API
• External device integration via GPIO / Relay
• Event notification via Webhook
• High-reliability network with Dante Redundancy
• Secure user management
• Centralized network configuration management

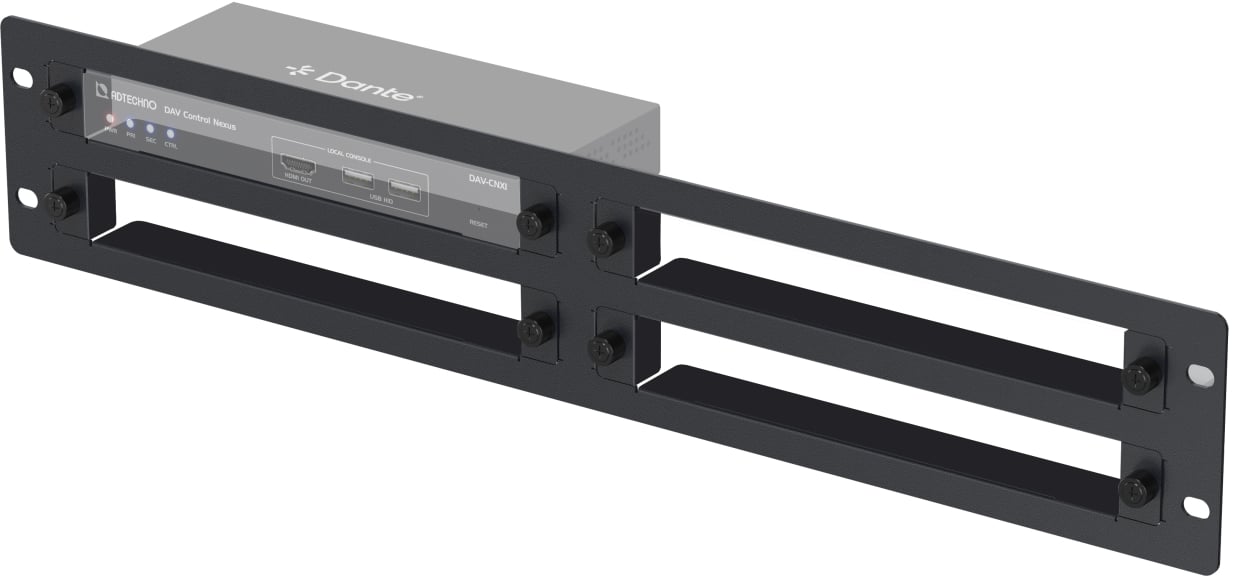

DAV-02RU4
Universal 2U EIA Shelf Unit
DAV-02RU4 - Mount Kit for Quad Unit Placement

• EIA 19-inch
• 2U
• Compatible with DAV-CNX1 & DAV-02


Intuitive browser-based Control Interface for Dante Systems

The DAV Control Nexus adopts a Browser-based Web GUI that follows the established operational workflow of Dante Controller, enabling centralized management of visual matrix-style routing, device information, clock status, and event logs directly from a web browser. No dedicated software installation is required.

Web GUI Overview

Key screens of the browser-based interface for intuitive Dante system control.

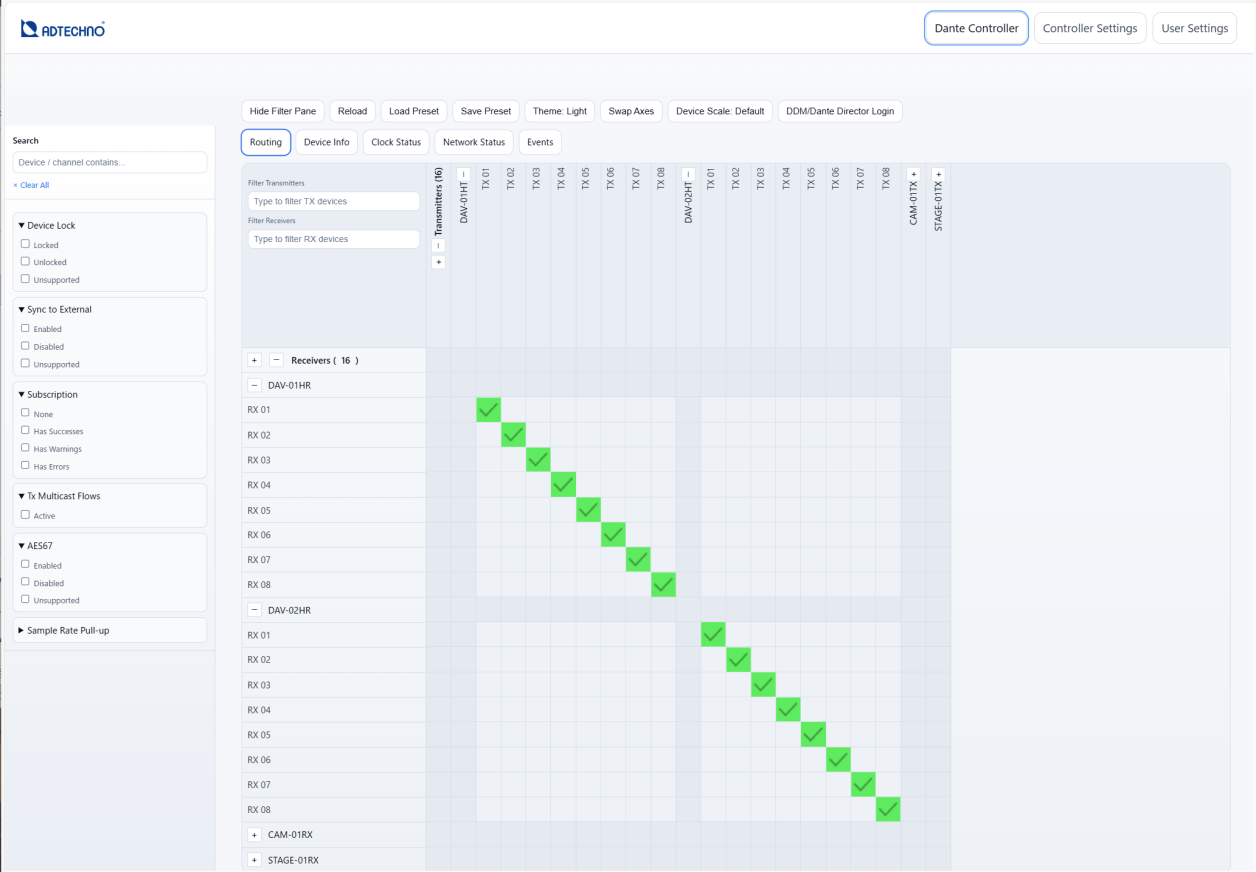

Dante Controller
Webhook Settings

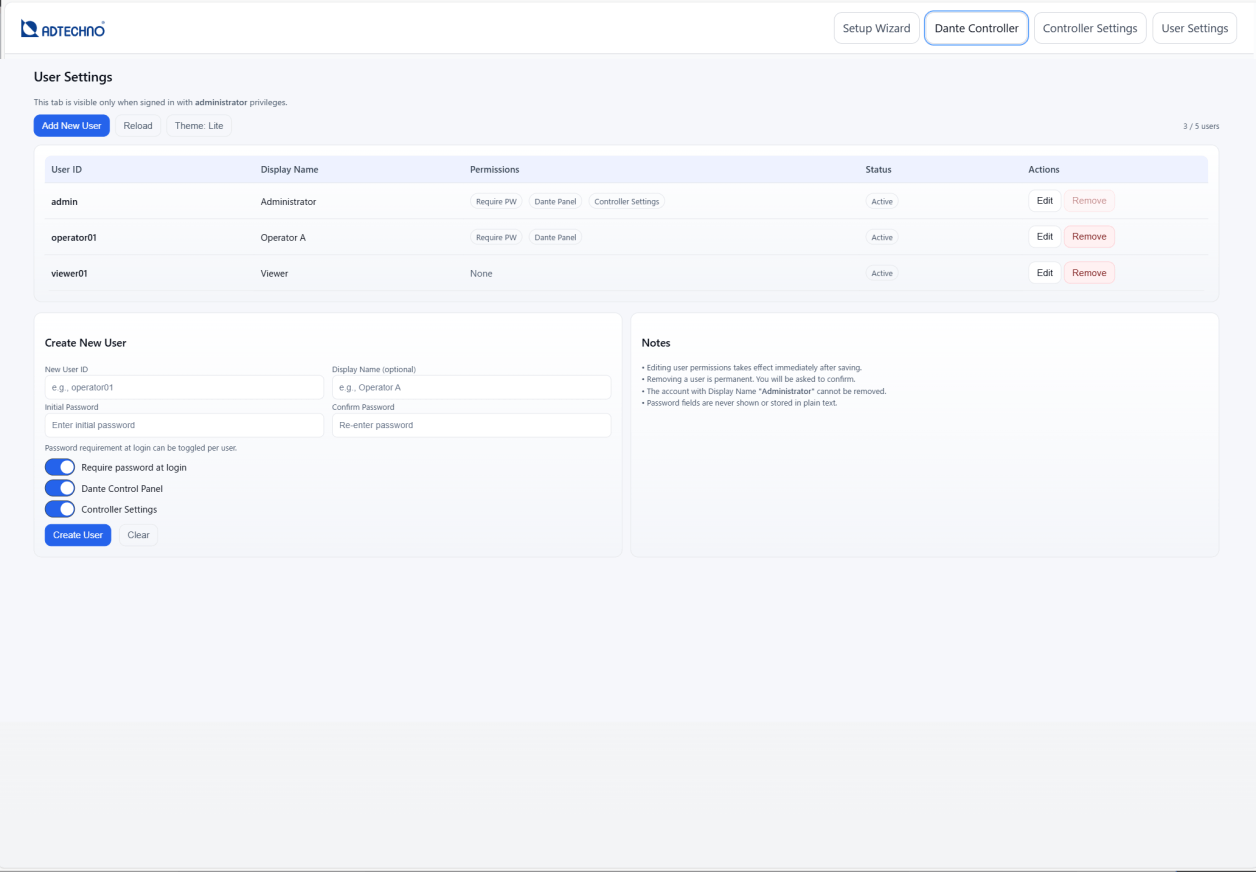

User Settings

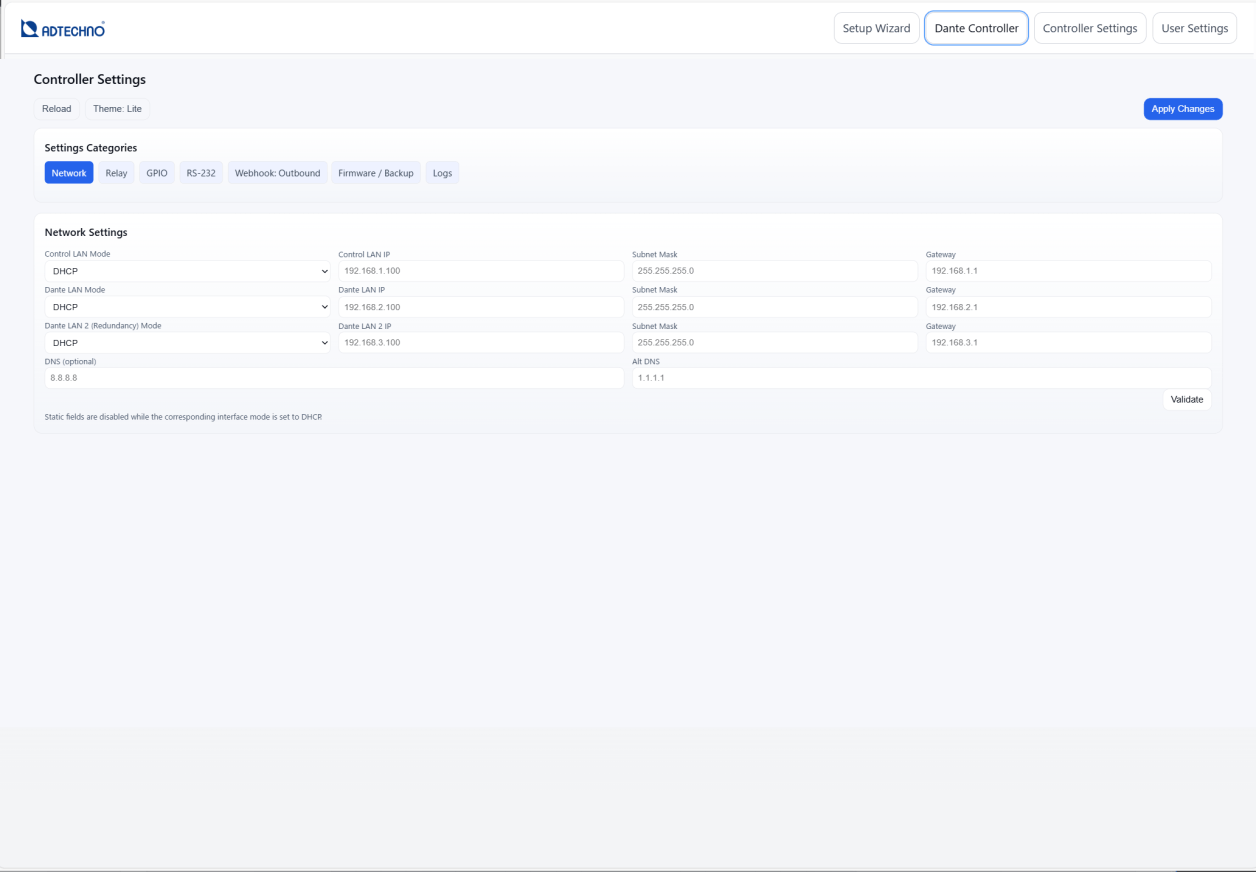

Network Settings

PC-Free Web GUI Operation via Touchscreen Display

By connecting a touchscreen display directly to the HDMI and USB HID ports, the DAV Control Nexus enables full Browser-based Web GUI operation without the need for a PC. This standalone configuration allows users to control Dante routing and system management intuitively through touch, reducing system complexity and improving reliability in permanent installations.

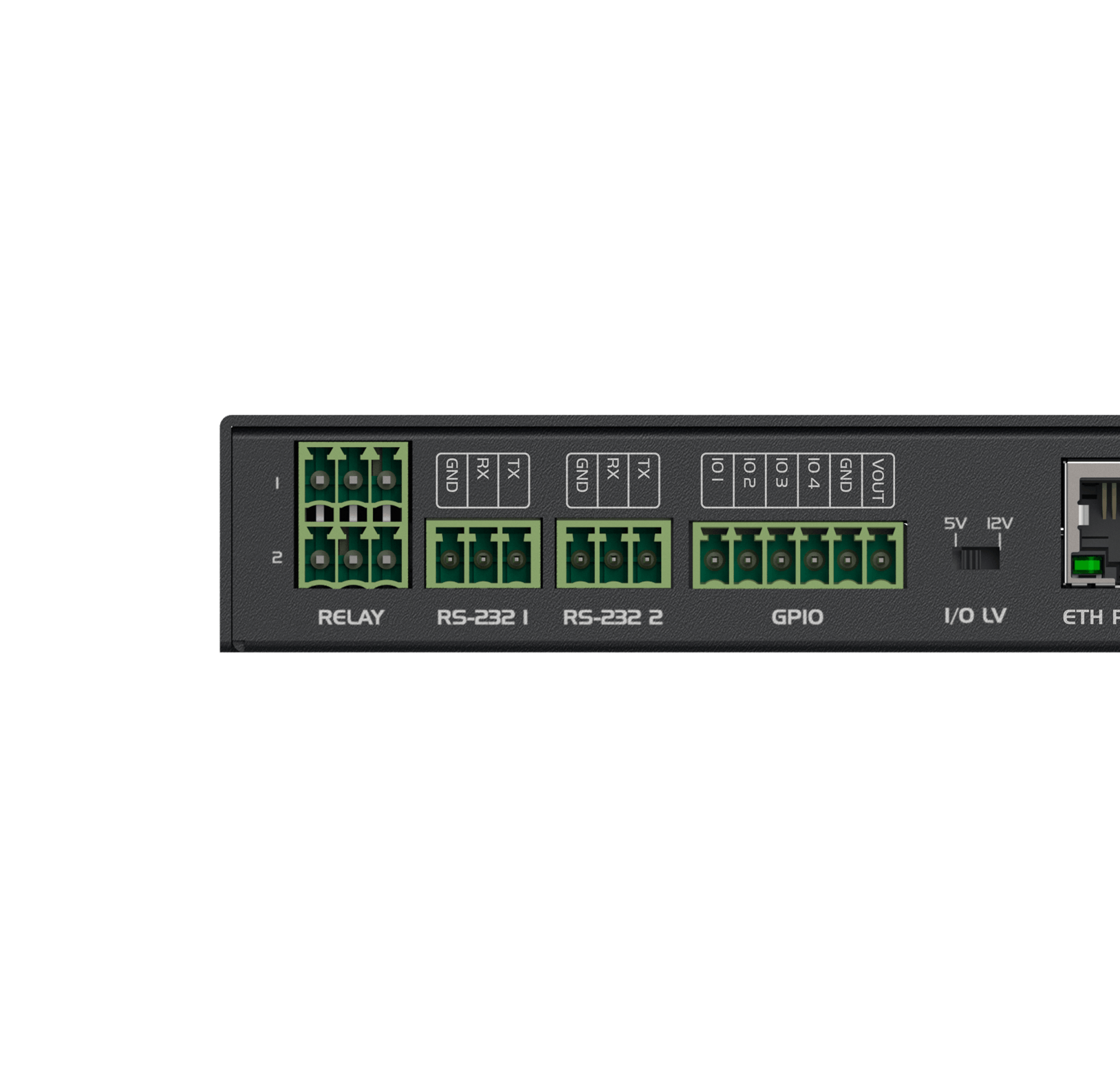

GPIO&Relay

GPIO and Relay Control for External System Integration

The DAV Control Nexus features GPIO ports that support both input and output operation, along with built-in relay outputs. These interfaces enable flexible interaction with external devices such as sensors, switches, and indicators. Using open API commands via Telnet or RS-232 communication, users can trigger Dante routing changes, recall presets, and control external equipment, enabling seamless system automation and integration.

Dante Redundancy Support

Dante Redundancy Support

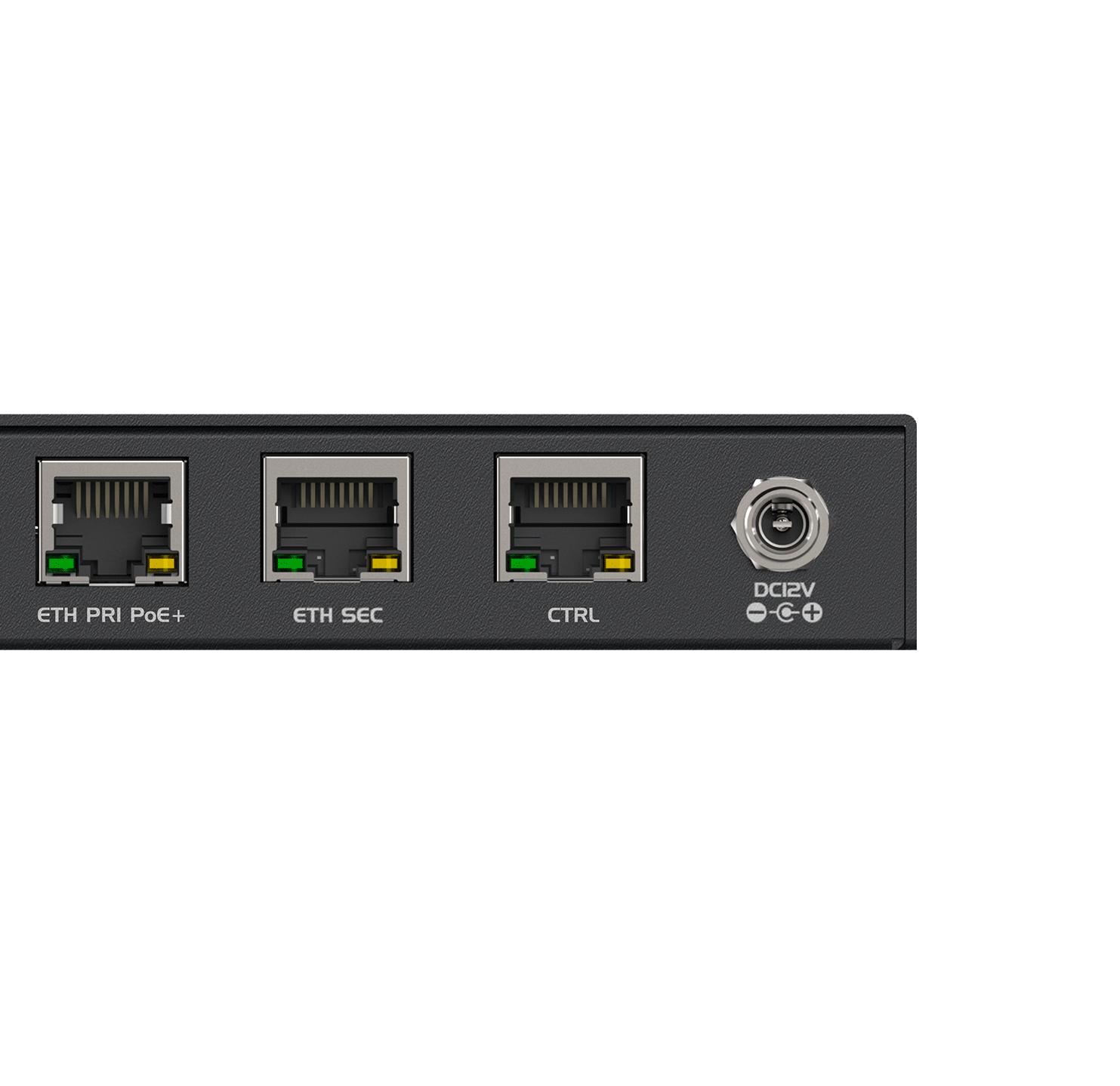

The DAV Control Nexus supports Dante Redundancy through dedicated Primary and Secondary Ethernet ports. By connecting to redundant Dante networks, the system ensures continuous operation even in the event of a network failure. This design enhances reliability and is ideal for mission-critical environments such as live events, broadcast facilities, and permanent AV installations.

Smart Notifications with Webhook Integration

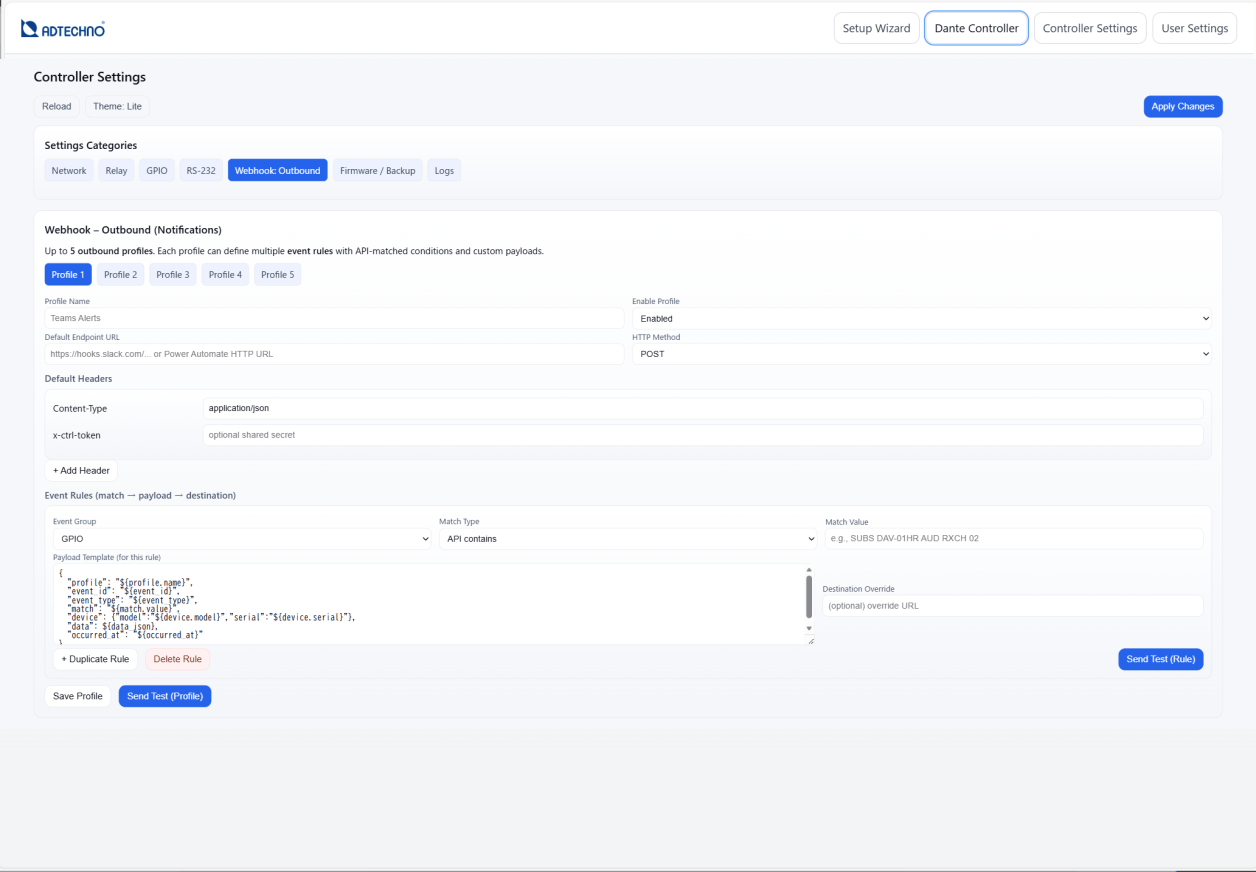

DAV Control Nexus supports webhook outbound functionality, allowing the system to send HTTP notifications to external services when specific events occur. This enables status updates, alerts, and workflow automation, and allows seamless integration with collaboration tools, monitoring systems, and RPA platforms.

Open API Integration

By sending API commands over Telnet or network communication, or via RS-232 serial communication, the DAV-CNX1 can be flexibly integrated with major third-party control systems. This enables a wide range of automation and system integration, including external control of Dante routing, system status reference, and preset switching.

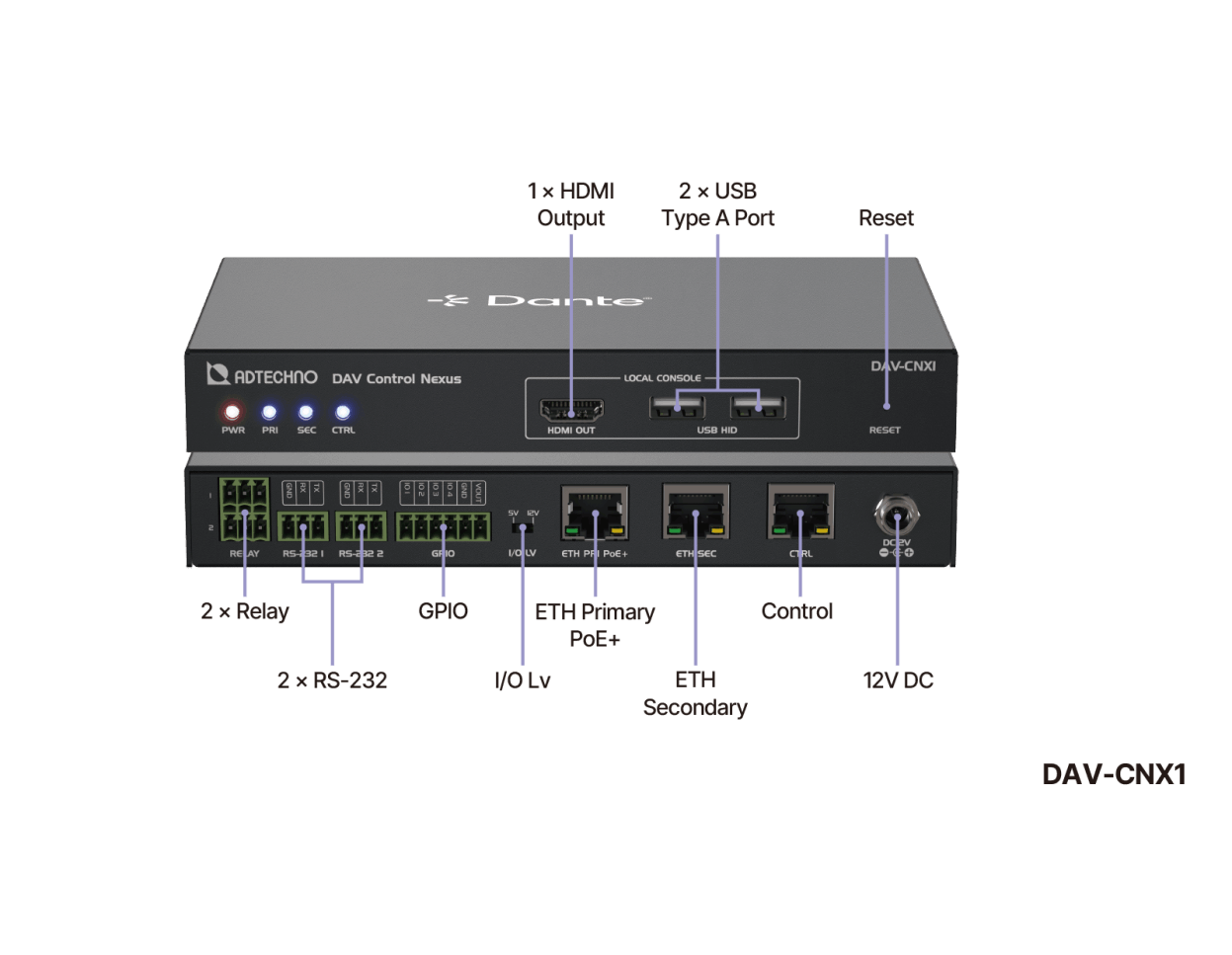

Connections

DAV-CNX1_Connections

Specifications

DAV-CNX1  DAV Control Nexus - Dante Device Control Box

Network: 1 x RJ-45 w/ PoE+ (IEEE802.3at) - Dante LAN Primary
                  1 x RJ-45 - Dante LAN Secondary
                  1 x RJ-45 - Control
RS-232: 2 x 3-pin Phoenix Female (*1
GPIO: 1 x 6-pin Phoenix Female - 4 × GPIO, 1 x 12/5V Output
Relay: 2 x 3-pin Phoenix Female
GPIO I/O Lv.: 1 x Slide Switch (5 or 12V 500mA)
Local Console I/O: 1 x HDMI Monitor Out (GUI display) (*2
                                   2 x USB mouse/keyboard
Reset: 1 x Reset Button
Power: PoE+ or DC 12V - a screw type DC connector (*3
Operating Temperature: 0 - 40 degrees
Storage Temperature: -20 - 60 degrees
Operating Humidity: 0 - 90% (*4
Dimensions: 180 (W) x 101 (D) x 24 (H) mm
Weight: 610g
Box Content: 1 x DAV-CNX1, 2 x Ear Bracket, 1 x Quick User Guide
Regulatory: FCC/CE/UKCS/RoHS

*1 port for loop-out
*2 Resolution: 1920x1080 fixed
*3 PoE+ priority
*4 no condensation
