Dante AV Ultra

12G-SDI & HDMI to/from Dante AV Ultra Colibri



DAV-01S

Perfect AV Synchronization with Extremely Low Latency

Overview

Dante AV Ultra encoder and decoder, DAV-01HT and DAV-01HR are the cutting-edge devices embody a state-of-art AV over IP solution, marking a significant advancement in AV over IP technology.
The DAV-01ST Encoder, with its 12G-SDI and HDMI inputs, and the DAV-01SR Decoder, featuring dual 12G-SDI and HDMI outputs, are designed to facilitate the transmission of 8-channel audio and up to 4Kp60 4:4:4 video over a 1GbE network. Their integration with Dante Controller software enhances workflow efficiency, allowing AV professionals to manage and route signals with ease. Both models are equipped with a 2.0-inch IPS panel for immediate video and audio monitoring, ensuring high-quality, visually lossless content delivery with minimal latency.
Tailored for stadiums, theaters, and various professional settings, these devices ensure an optimal performance, meeting the demands of even the most challenging environments.
 Key Features
  • Transport up to 4K HDR UHD video sources with imperceptible subframe latency over 1GbE Network.
  • Advanced signal management for independent routing of audio, video, USB / KVM, RS-422 and IR.
  • ProAV-optimized Colibri codec to correctly encode any graphical content while preserving a visually lossless quality for video.
  • Utilizing a single network clock enables perfect audio and video synchronization.
  • The DAV-01ST features 12G-SDI and HDMI input ports and dedicated loop-out port for each input.
  • The DAV-01SR features dual 12G-SDI and HDMI output ports per channel.
  • 2.0-inch IPS screen for video images preview, audio level meters and Dante setting feature.
  • Incoming audio check using a headphone output.
  • Auto-downscaling and HDCP revision conversion on HDMI output ports.
  • HDCP 1.x/2.x compliant with advanced EDID management.
  • PoE+ (30W IEEE802.3at PoE+) or DC (12V) power to power the device.
  • EIA Rack mountable - 1U half-rack width.
  • Compatible with Dante Controller and Dante Domain Manager (DDM).

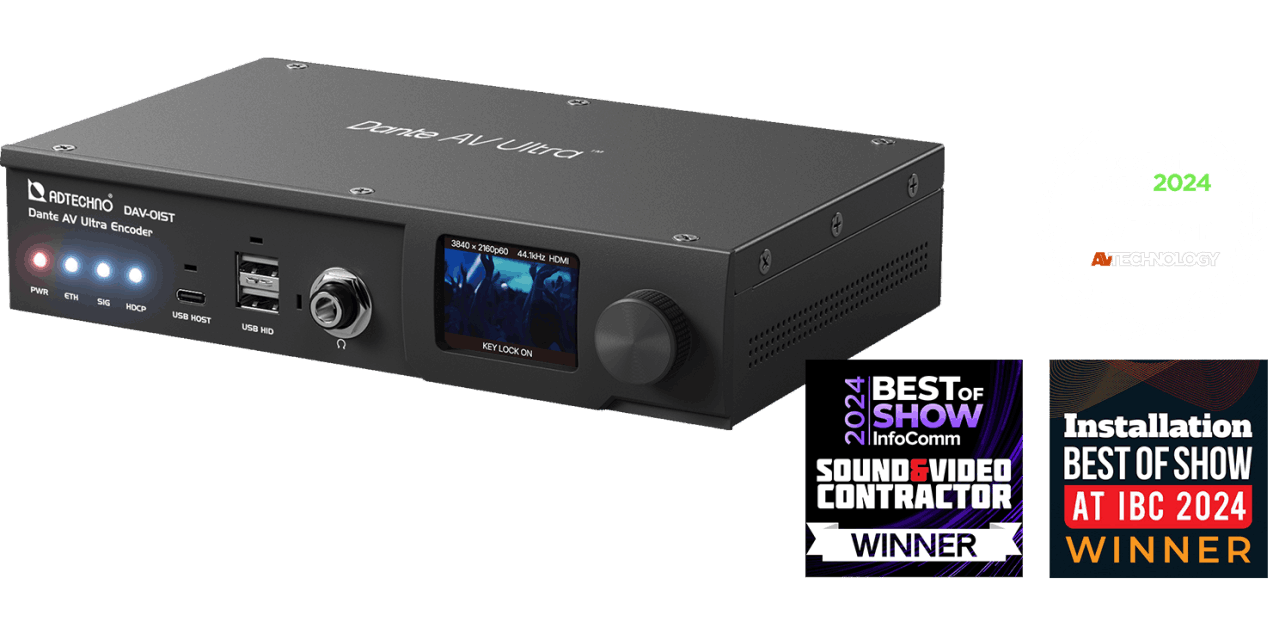

DAV-01ST

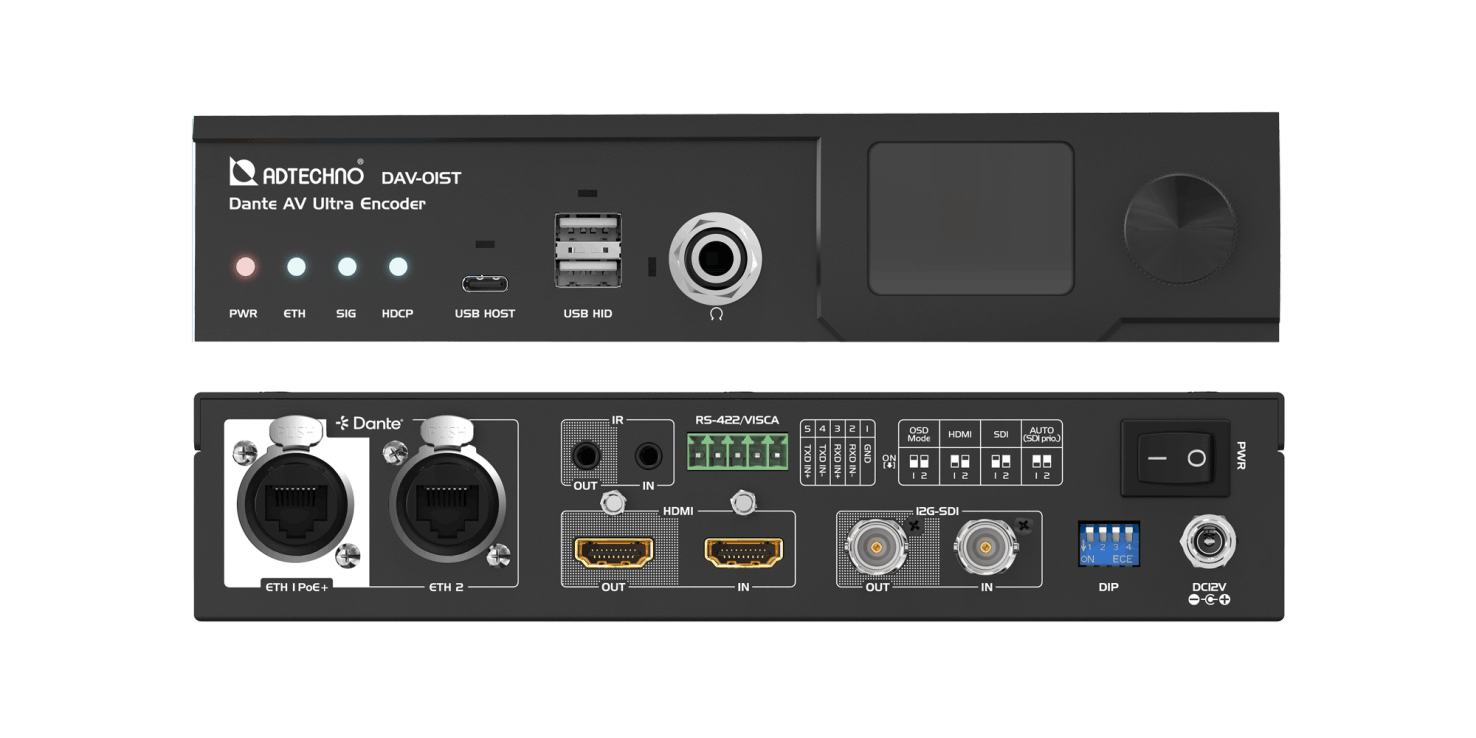

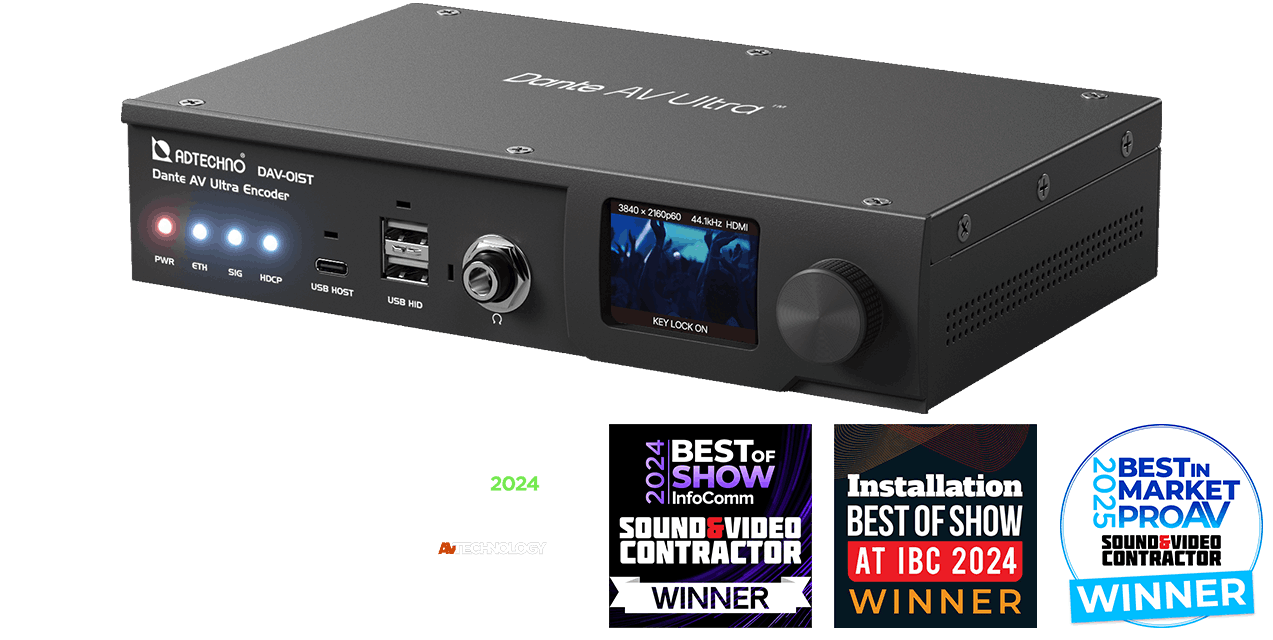

Dante AV Ultra Encoder DAV-01ST
Encode 12G-SDI/HDMI to Dante AV Ultra Colibri

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• 12G-SDI in and loop-out
• HDMI 2.0a in and loop-out
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

DAV-01SR
Dante AV Ultra Decoder DAV-01SR
Decode Dante AV Ultra Colibri to 12G-SDI/HDMI

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• Simultaneous 2 x 12G-SDI and 2 x HDMI out
• Auto-downscaling and HDCP conversion
• 1GbE PoE+ and Secondary 1GbE IP
• USB HID, IR in/out and RS-422 (VISCA)

DAV-01RU1
Rack Shelf Mount Kit
DAV-01RU1 - Mount Kit for Single Unit Placement

• EIA 19-inch
• 1U



DAV-01SR

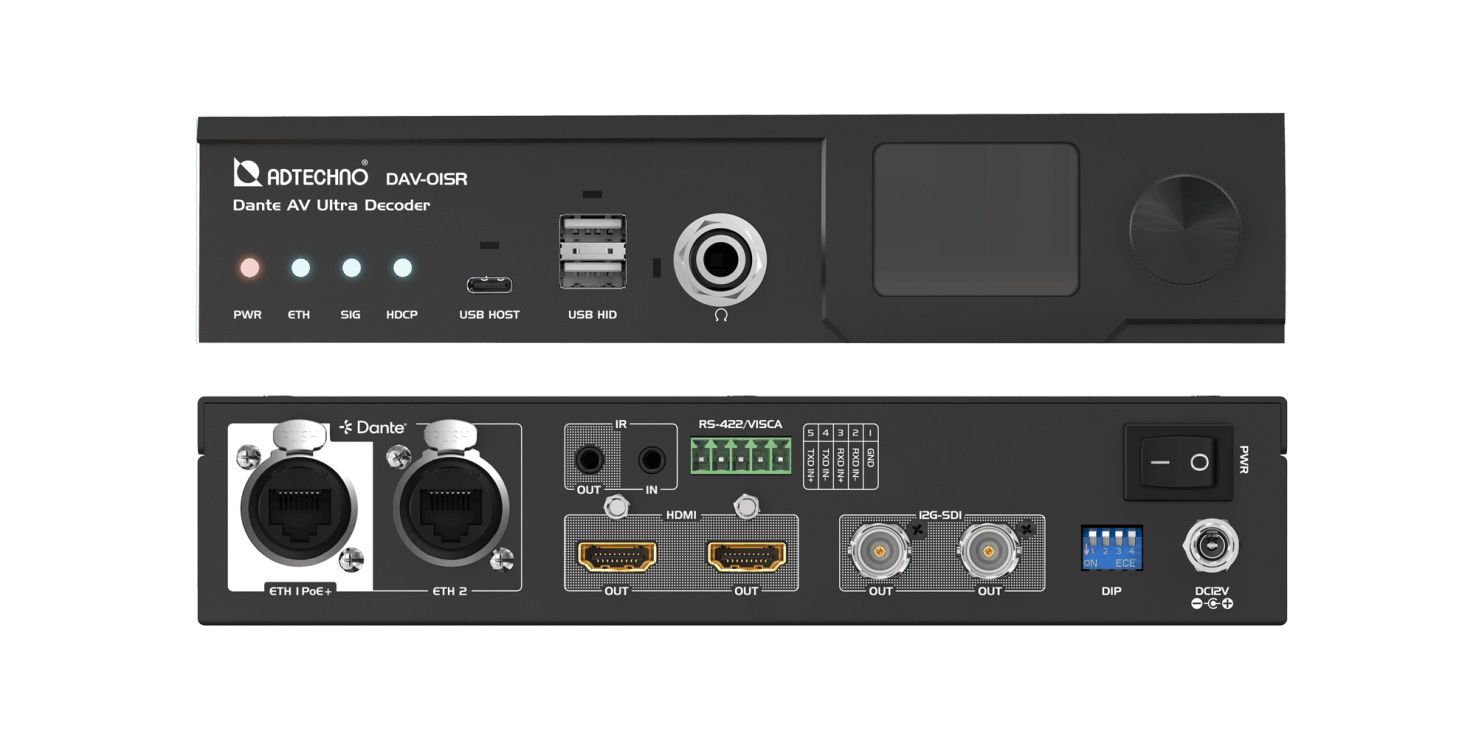

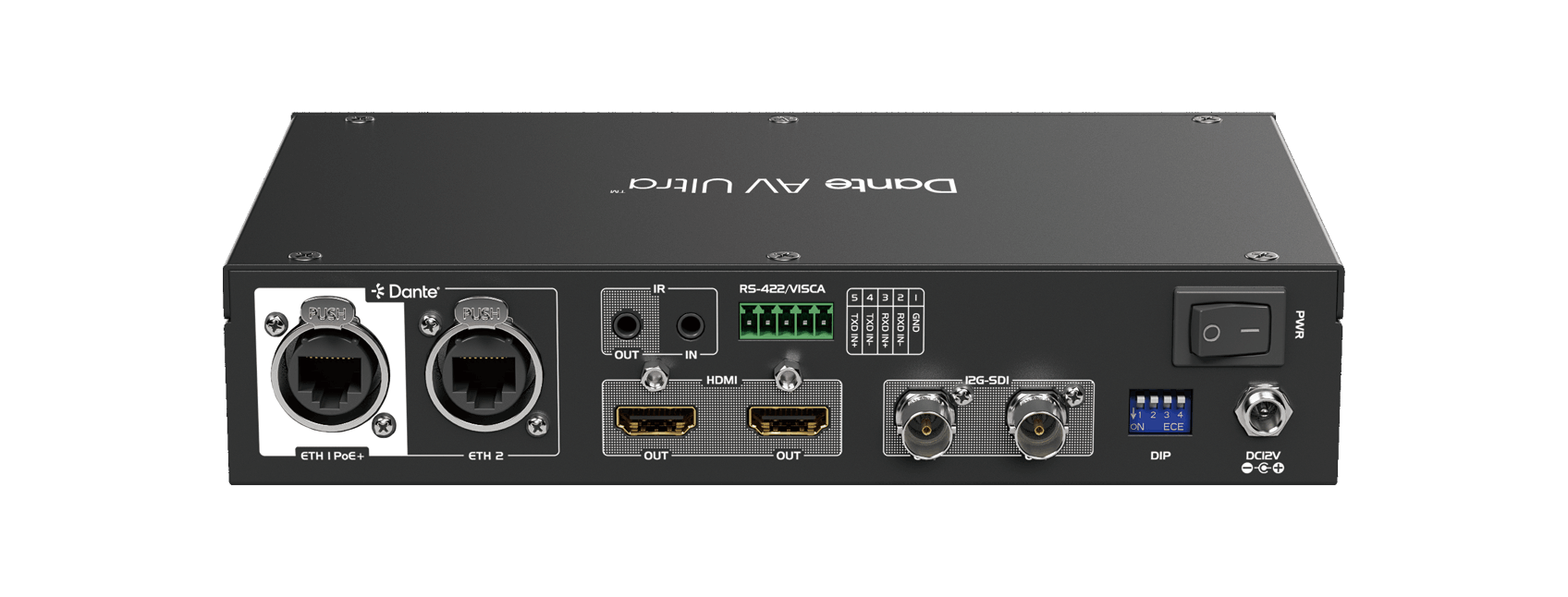

Quad Output with 12G-SDI and HDMI

Dante AV Ultra Decoder, DAV-01SR supports simultaneous quad output, providing 2 x 12G-SDI video and 2 x HDMI video outputs for connecting to multiple screens.

User-friendly 2.0-inch IPS screen

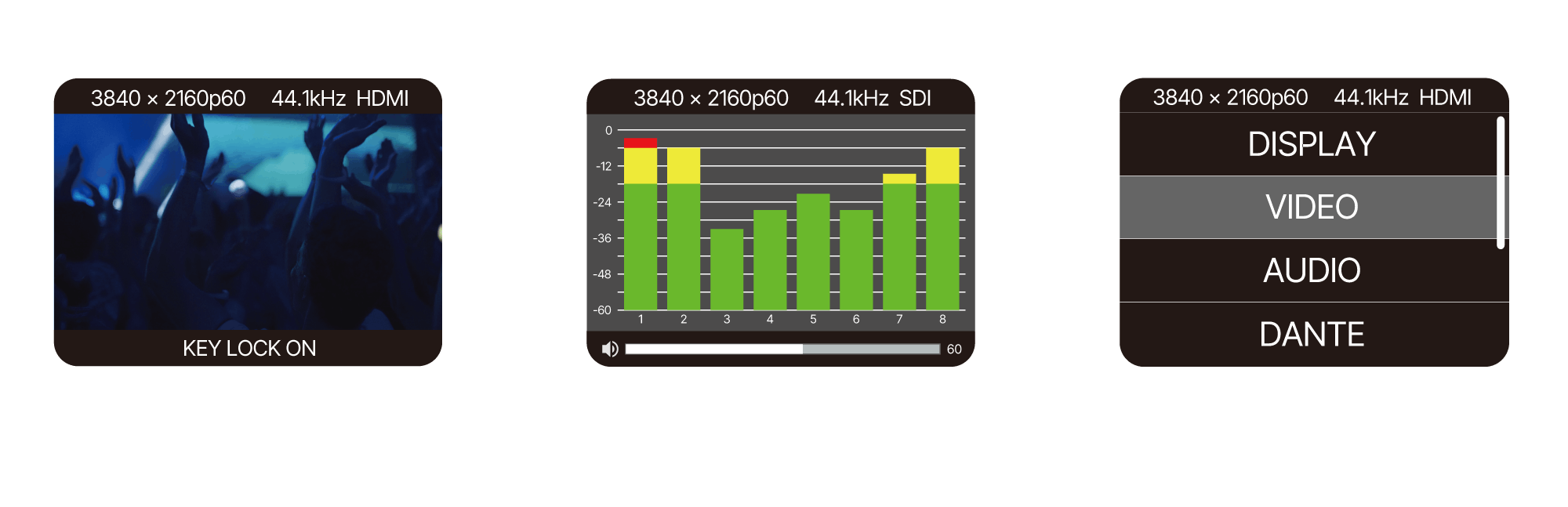

The ADTECHON Dante AV Ultra comes equipped with a user-friendly 2.0-inch IPS screen that provides a preview of incoming video images and displays 8-channel audio level meters. Additionally, it boasts a Dante Setting menu, allowing you to easily modify settings such as sampling rate, latency and more using a rotary switch knob.

Rack Shelf Mount Kit

Auto-downscaling and HDCP revision conversion

The HDMI ports on The ADTECHNO Dante AV Ultra decoder reads Extended Display Identification Data (EDID) of every connected screen and adjusts the output video resolution automatically to ensure the optimal display resolution for each screen. Additionally, HDCP is automatically converted to the appropriate revision for each connected screen.

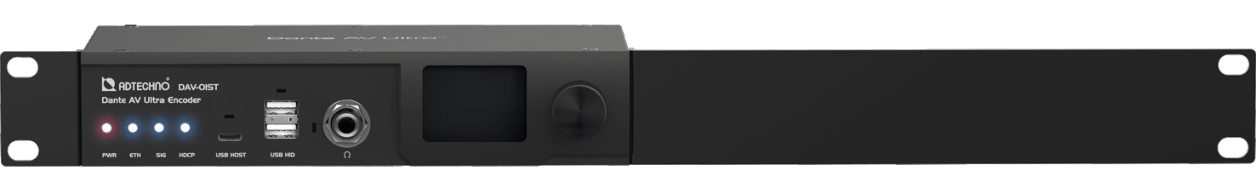

19-inch Rack Shelf Mount

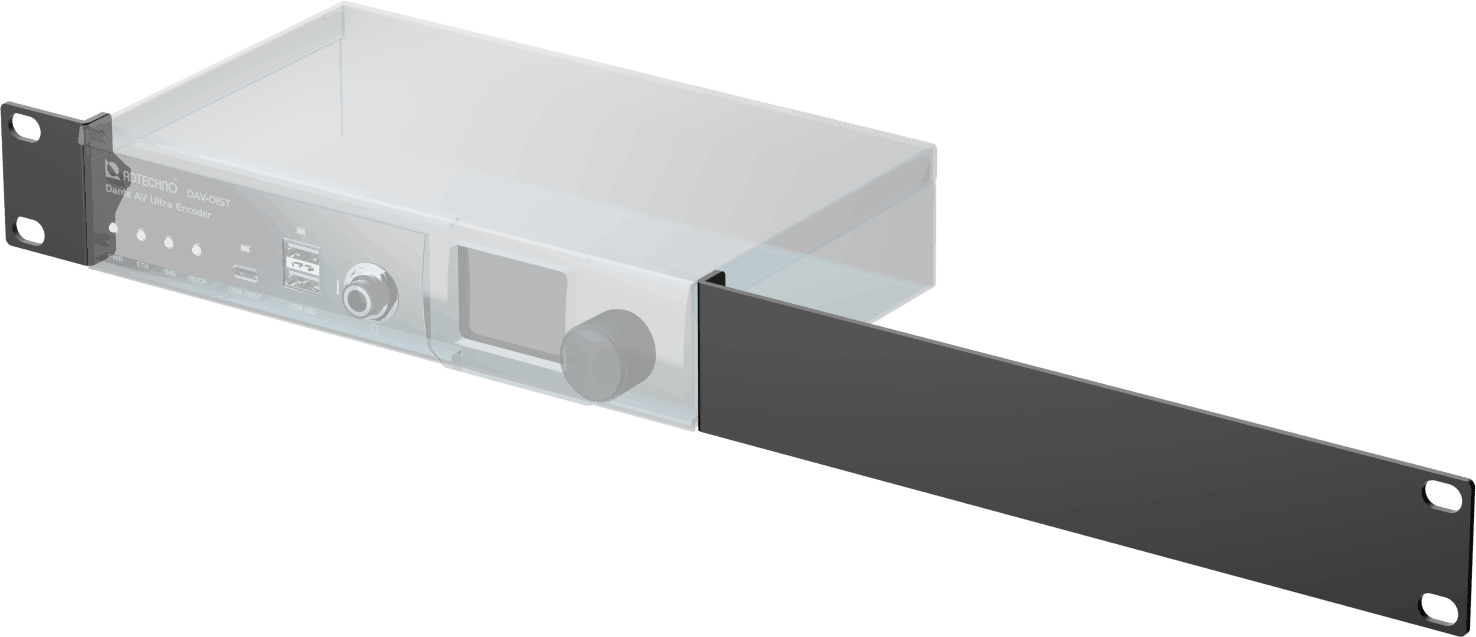

The DAV-01RU1 rack shelf is tailor-made for securing the DAV-01 within a standard 19-inch EIA rack. These rack shelf mount kits are perfectly suited for a 1U space, ensuring a clean and efficient setup.

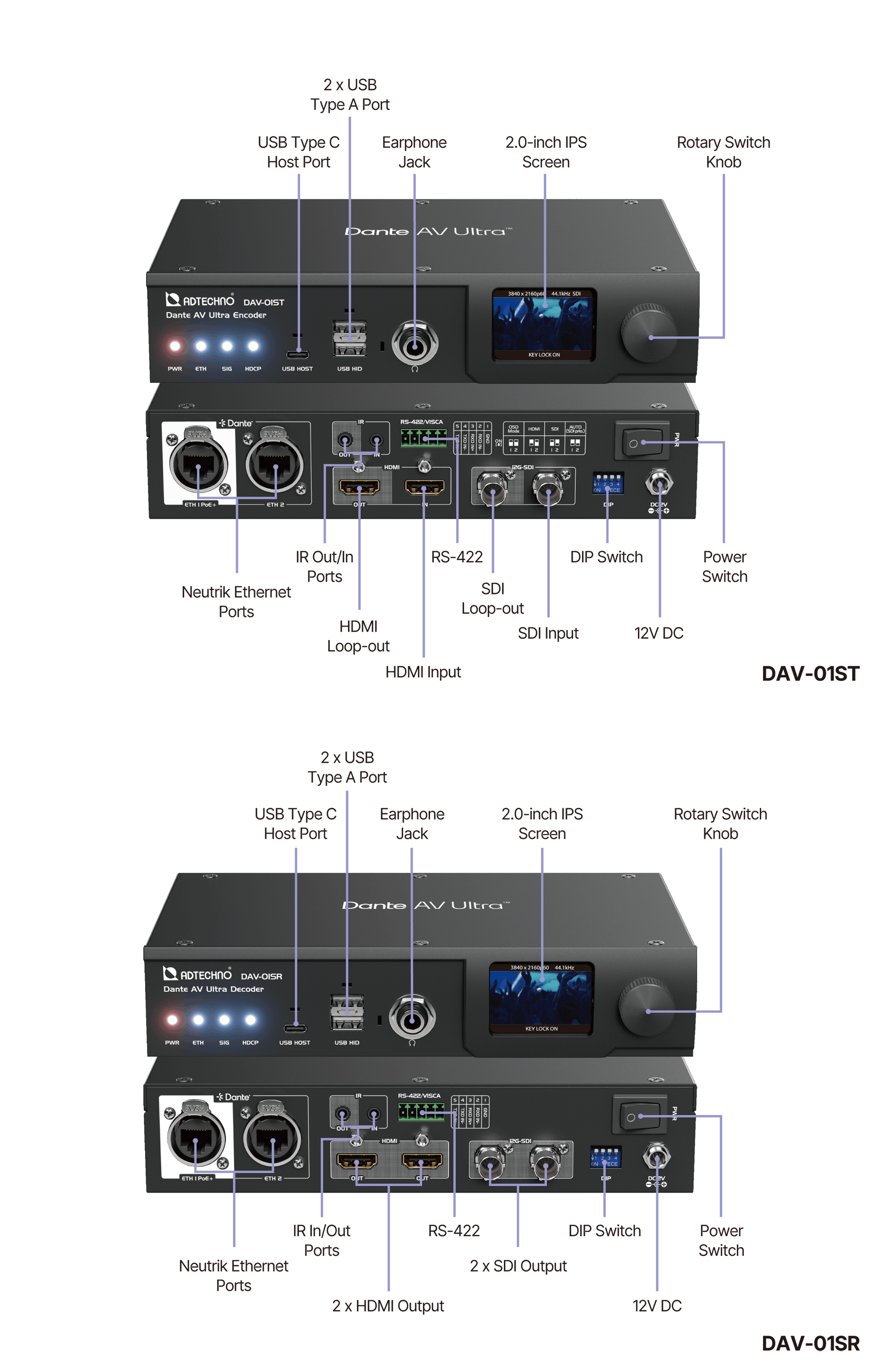

Connections

Connections

Specifications

DAV-01ST Dante AV Ultra Encoder - 12G-SDI/HDMI to Dante AV Ultra Colibri

Audio/Video Input Connectors:1 x 12/6/3/1.5G-SDI BNC
1 x HDMI Type A (*1
Audio/Video Output Connectors:1 x 12/6/3/1.5G-SDI BNC loop-out
1 x HDMI Type A loop-out (*1
2 x Neutrik etherCON RJ-45 – 1GbE (*2
1 x 6.3mm standard stereo earphone jack
USB/KVM port: 1 x USB Type C Host, 2 x USB Type A HID
RS-422 serial port: 1 x 5-Pin Phoenix connector
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm stereo jack
Extend Distance: 70 Meters at 12G, 100 Meters at 6G, 200 meters for 3G and 270 meters at 1.5G (*3
5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 with HDMI
100 meters maximum with CAT 5e/6
LCD Panel: 2.0-inch IPS
Dimensions: 210 (W) x 127 (D) x 44 (H) mm (*4
Weight: 1,500g
Power: PoE 802.3 at or 12V DC (AC adapter optional)
Power Consumption: 20W (*5
Operating Temperature: 0 to 40 ℃ (32 to 104 ℉)
Storage Temperature: -40 to 60 ℃ (-40 to 140 ℉)
Operating Humidity: 10 - 90% (*6
Box Content: 1 x DAV-01ST, 1 x Quick User Guide
Warranty: 1 year
Regulatory Compliance: FCC / CE / UKCA / RoHS

*1 HDCP 1.4/2.2, CEC pass through
*2 Port 1 with PoE+
*3 with CANARE D5.5UHDC Cable
*4 protrusions not included
*5 max load incl. USB HID
*6 noncondensing

DAV-01SR Dante AV Ultra Decoder - Dante AV Ultra Colibri to 12G-SDI/HDMI

Audio/Video Input Connectors: 2 x Neutrik etherCON RJ-45 -1GbE (*1
Audio/Video Output Connectors: 2 x 12/6/3/1.5G-SDI BNC
2 x HDMI Type A (*2
1 x 6.3mm standard stereo earphone jack
USB/KVM port: 1 x USB Type C Host, 2 x USB Type A HID
RS-422 serial port: 1 x 5-Pin Phoenix connector
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm stereo jack
Extend Distance: 70 Meters at 12G, 100 Meters at 6G, 200 meters for 3G and 270 meters at 1.5G (*3
5 meters maximum at 4Kp60, 10 meters maximum at 1080p60 with HDMI
100 meters maximum with CAT 5e/6
LCD Panel: 2.0-inch IPS
Dimensions: 210 (W) x 127 (D) x 44 (H) mm (*4
Weight: 1,500g
Power: PoE 802.3 at or 12V DC
Power Consumption: 24W  (*5
Operating Temperature: 0 to 40 ℃ (32 to 104 ℉)
Storage Temperature: -40 to 60 ℃ (-40 to 140 ℉)
Operating Humidity: 10 - 90% (*6
Box Content: 1 x DAV-01SR, 1 x Quick User Guide
Warranty: 1 year
Regulatory Compliance: FCC / CE / UKCA / RoHS

*1 Port 1 with PoE+
*2 HDCP 1.4/2.2, CEC pass through
*3 with CANARE D5.5UHDC Cable
*4 protrusions not included
*5 max load incl. USB HID
*6 noncondensing

Formats

HDMI Video Input Format
(DAV-01HT/DAV-01ST)

4096 x 2160p 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
2048 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1920 x 1200p 60
1920 x 1080p 23.976/ 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 1024 60
1280 x 720p 25/ 29.97/ 30/ 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576p 50

*YCbCr 4:2:0 is not supported.
*4K is supported only in 8-bit.
*576P is displayed in 4:3 aspect ratio

SDI Video Input Format
(DAV-01ST)

SMPTE 292, 425-A, 2081

12G-SDI
4096 x 2160p 50/ 59.94/ 60
3840 x 2160p 50/ 59.94/ 60

6G-SDI
4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30
3840 x 2160p 23.98/ 24/ 25/ 29.97/ 30

3G-SDI
2048 x 1080p 50/ 59.94/ 60
1920 x 1080p 50/ 59.94/ 60

HD-SDI
2048 x 1080p 23.98/ 24/ 25/ 29.97/ 30
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30
1080i 50/ 59.94/ 60
720p 50/ 59.94/ 60

*Only YCbCr 4:2:2 is supported.
*Only 3G-SDI Level A is supported.

HDMI Video Output Format
(DAV-01HR/DAV-01SR)

4096 x 2160p 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.976/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
1920 x 1200p 60
1920 x 1080p 23.976/ 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 720p 25/ 29.97/ 30/ 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576p 50

*YCbCr 4:2:0 is not supported.
*4K is supported only in 8-bit.
*576P is displayed in 4:3 aspect ratio.

SDI Video Output Format
(DAV-01SR)

SMPTE 292, 425-A, 2081

12G-SDI
4096 x 2160p 50/ 59.94/ 60
3840 x 2160p 50/ 59.94/ 60

6G-SDI
4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30
3840 x 2160p 23.98/ 24/ 25/ 29.97/ 30

3G-SDI
1920 x 1080p 50/ 59.94/ 60

HD-SDI
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30
1080i 50/ 59.94/ 60
720p 50/ 59.94/ 60

*Only YCbCr 4:2:2 is supported.
*Only 3G-SDI Level A is supported.
